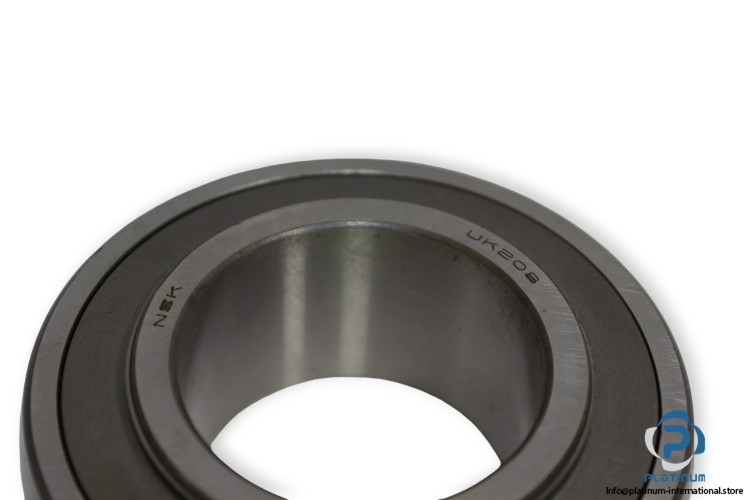

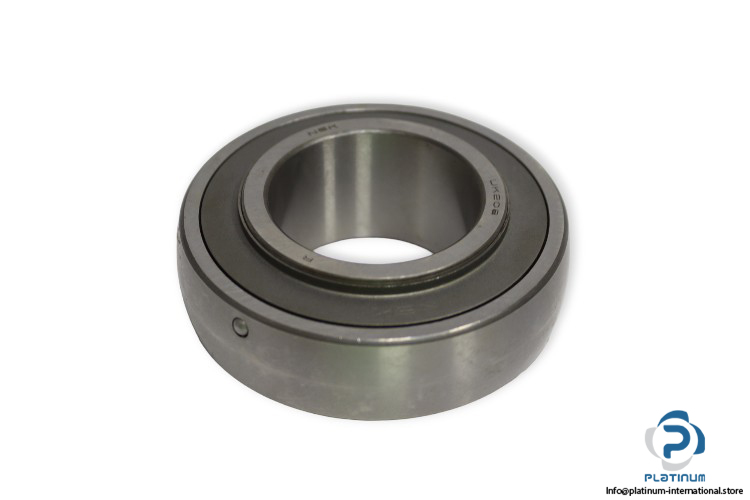

NSK UK208 Insert Ball Bearing
Manufacturer: NSK
Type: Insert Ball Bearing, Adapter Type
Model: UK 208

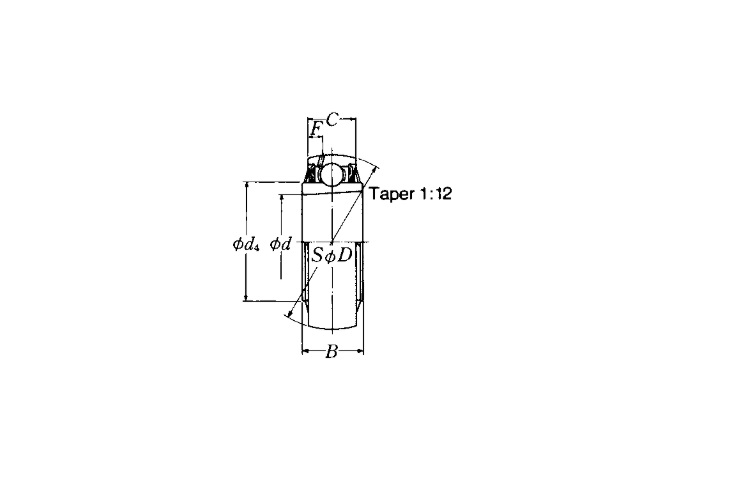

Dimensions
Bore Size of the Adapter Type H: 35 mm
d: 40 mm
Outer diameter D: 80 mm
Width of inner ring B: 31 mm
Width of outer ring C: 21 mm
Basic load ratings:
Dynamic C: 25700 N
Static C0: 15300 N
Bore Type: Tapered (1:12)
Enclosure: Double Sealed
Locking device: Adapter
