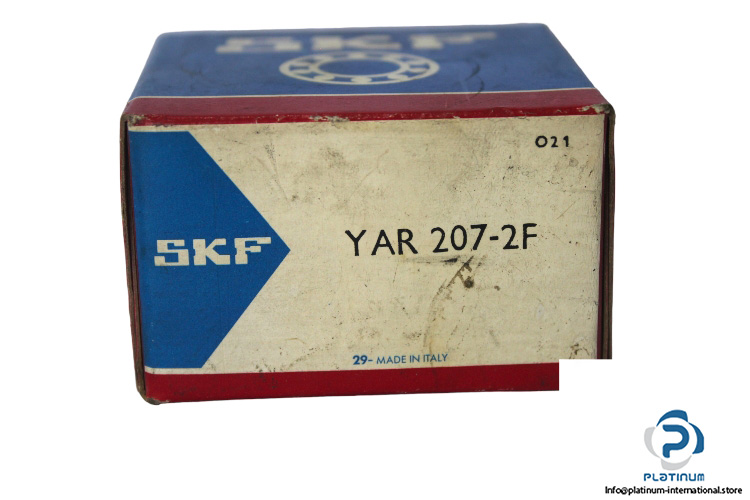

SKF YAR 207-2F Insert Ball Bearing

Manufacturer: SKF

Type: Insert bearing with set screw locking and extended inner ring

Model: YAR207-2F

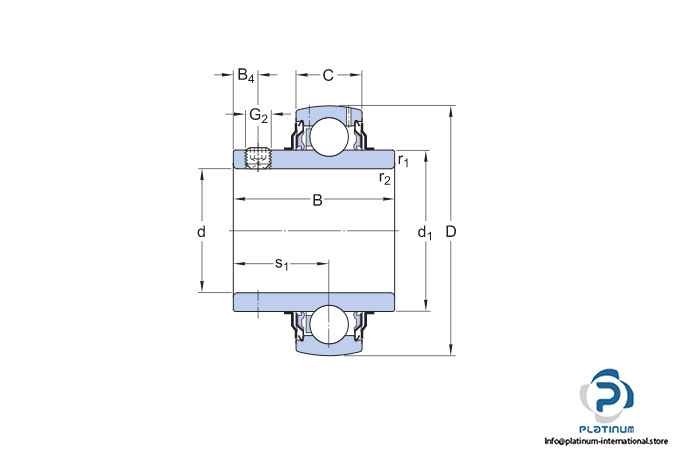

Bore Diameter d: 35 mm

Outer diameter D: 72 mm

Width of inner ring B: 42.9 mm

Width of outer ring C: 19 mm

Width, total: 42.9 mm

Basic load ratings:

Dynamic C: 25500 N

Static C₀: 15300 N

Fatigue load rating: 6550 N

Limiting speed: 5300 rpm

Inner ring extension: on both sides

Outer ring type: Spherical

Retaining feature, inner ring: Set screws

Sealing: Seal and flinger on both sides

Bore type: Cylindrical

Lubricant: Grease
