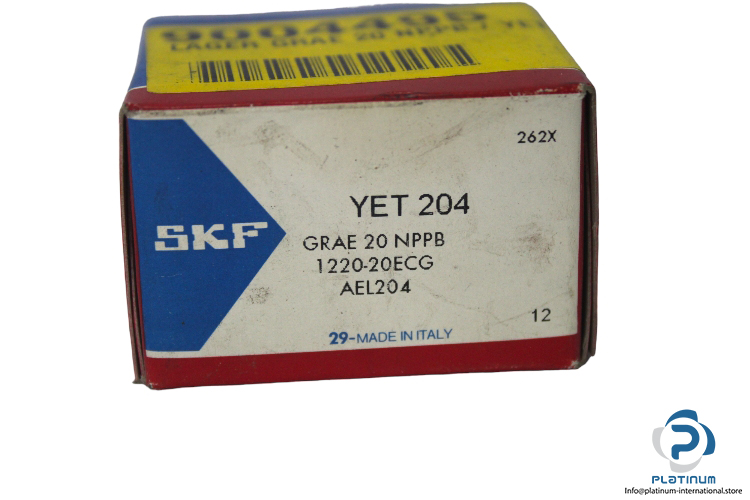

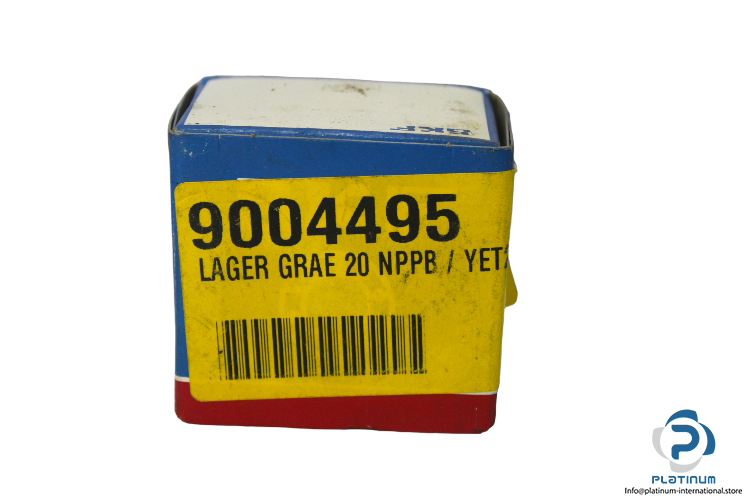

SKF YET 204 Insert Ball Bearing

Manufacturer: SKF
Type: Insert bearing with an eccentric locking collar and narrow inner ring
Model: YET204

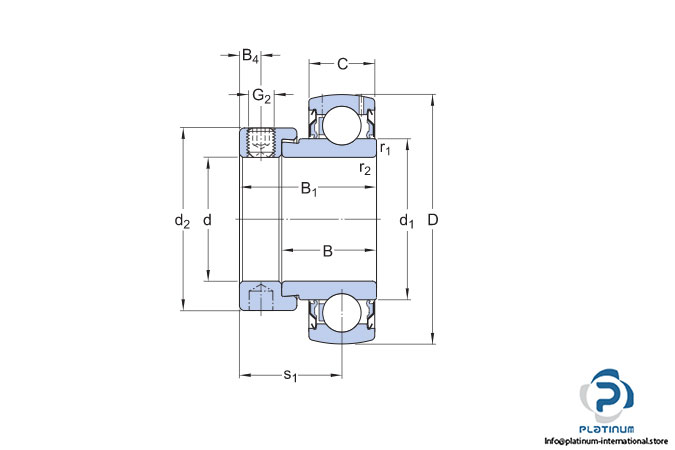

Bore Diameter d: 20 mm
Outer diameter D: 47 mm
Width of inner ring B: 21 mm
Width of outer ring C: 14 mm
Overall bearing width B1: 30.5 mm
Basic load ratings:
Dynamic C: 12700 N
Static C₀: 6550 N
Fatigue load rating: 280 N
Limiting speed: 8500 rpm
Inner ring extension: On one side
Outer ring type: Spherical
Retaining feature, inner ring: Eccentric collar
Sealing: Seal on both sides
Bore type: Cylindrical
