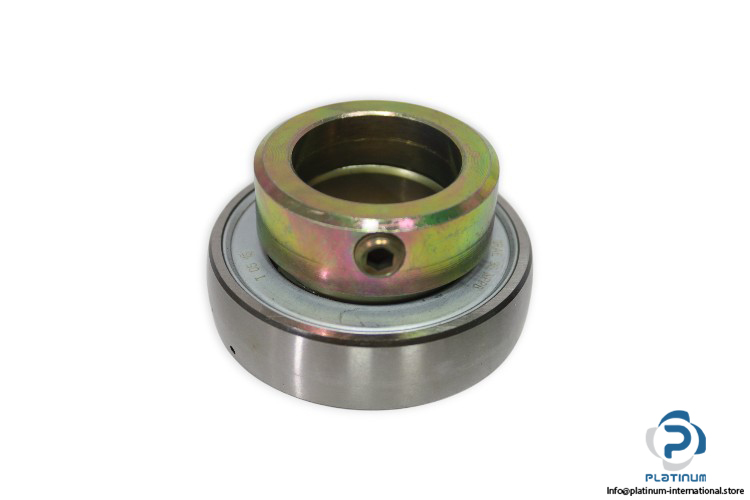

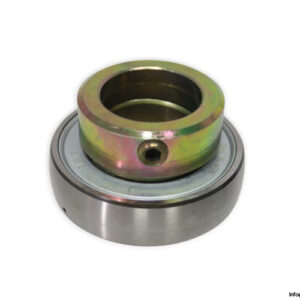

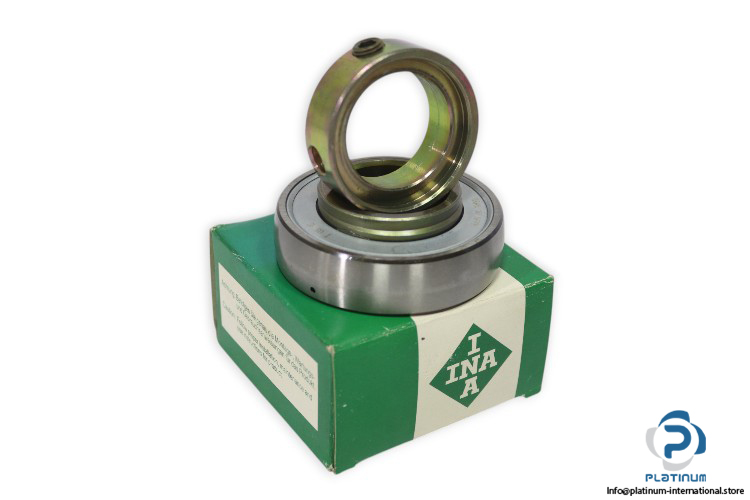

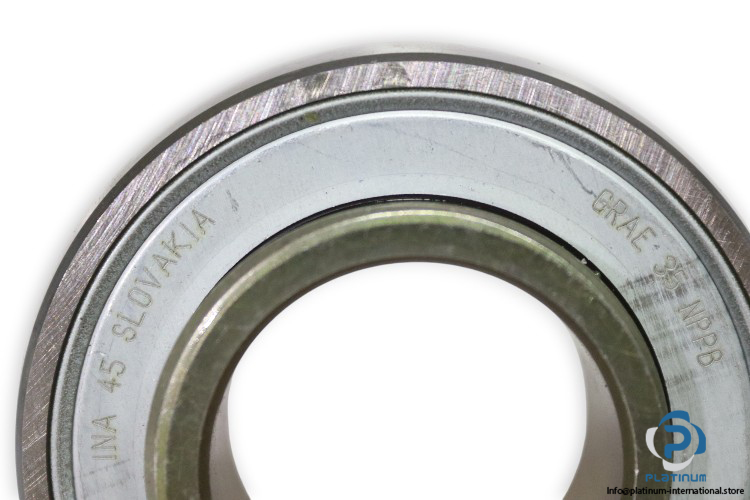

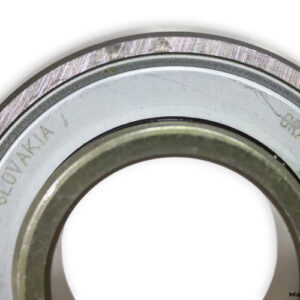

INA GRAE35-NPP-B Radial Insert Ball Bearing

The INA GRAE35-NPP-B from Schaeffler is a high-quality radial insert ball bearing designed for smooth, low-friction motion and extended service life in industrial machinery. This bearing features integrated lip seals on both sides (NPP type) to provide effective protection against contamination and lubricant loss. Engineered for durability and consistent performance, it is ideal for demanding applications in power transmission and mechanical systems.

• Manufacturer: INA / Schaeffler
• Type: Radial Insert Ball Bearing
• Model: GRAE35-NPP-B

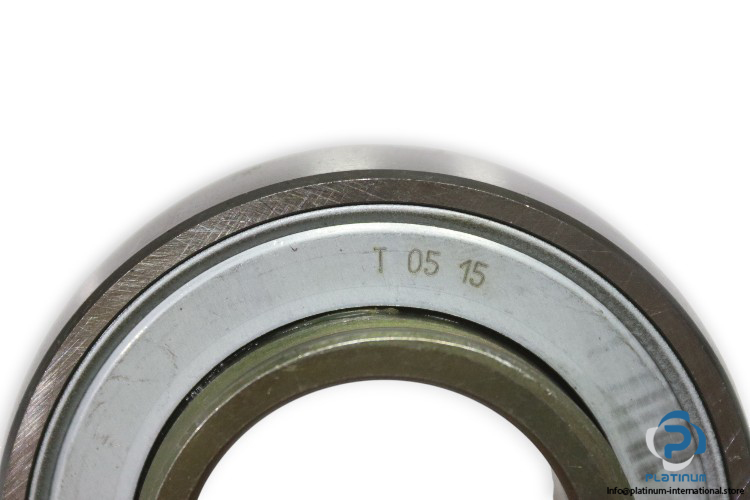

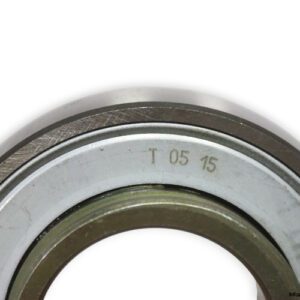

• Code: T 05 15

Technical Information

• Bore Diameter (d): 35 mm
• Outside Diameter (D): 72 mm
• Width (B): 25.4 mm
• Width, Outer Ring (C): 19 mm
• Distance Raceway (S): 9.5 mm
• Outside Diameter Locking Collar / Locknut (d3): 55 mm
• Locking Collar Total Width (B1): 39 mm
• Distance to Lubrication Hole (Ca): 5.6 mm
• Width of Flats (W): 5 mm
• Fatigue Load Limit, Radial (Cur): 650 N
• Dynamic Load Rating (C): 25,500 N
• Static Load Rating (C0): 15,300 N
• Sealing: NPP, Lip seal on both sides
