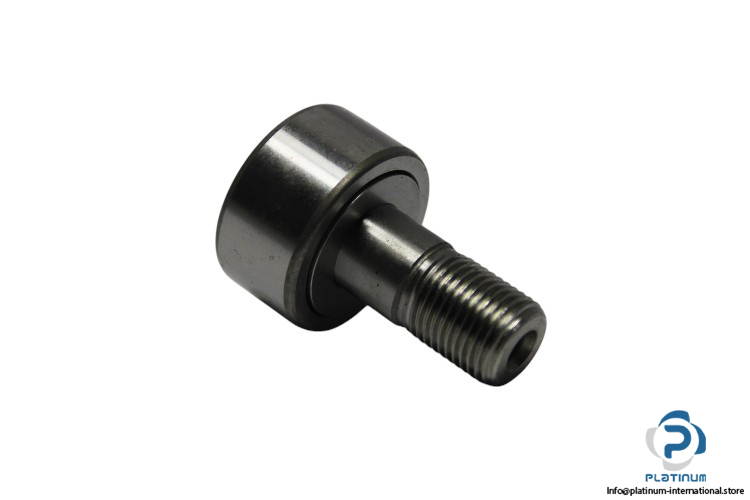

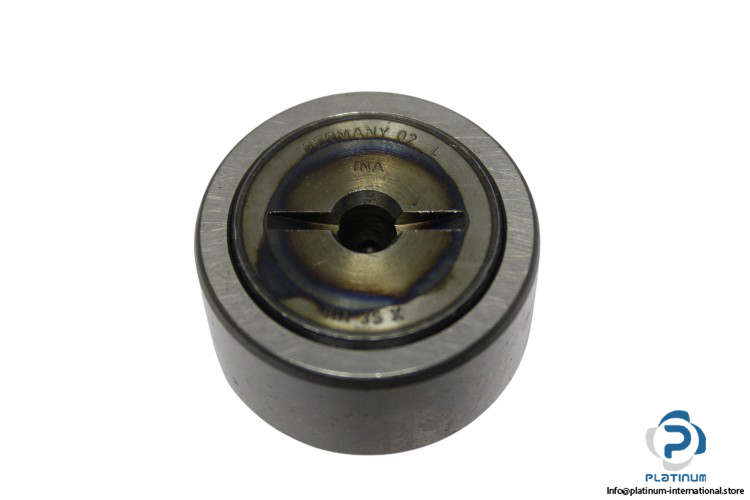

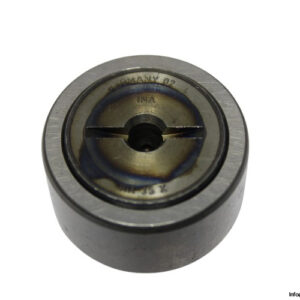

INA KR35X Stud Type Track Roller
The INA KR35X Stud Type Track Roller is designed for high-load industrial applications, providing efficient guidance and support in cam and track systems. With durable sealing, high-speed capability, and precision engineering, this track roller ensures smooth and reliable performance.
- Manufacturer: INA
- Type: Stud Type Track Roller
- Model: KR35X
Technical Information
- Outside Diameter (D): 35 mm
- Attachment Diameter (d): 16 mm
- Total Length (B): 52 mm
- Width Outer Ring (C): 18 mm
- Thread Stud (G): M16x1.5
- Basic Load Ratings:
- Dynamic (C): 9,700 N
- Static (C0): 14,500 N
- Fatigue Load Limit (Pu): 1,860 N
- Speed on Permanent Grease Lubrication: 3,600 1/min
- Sealing: PP, Seal on Both Sides
