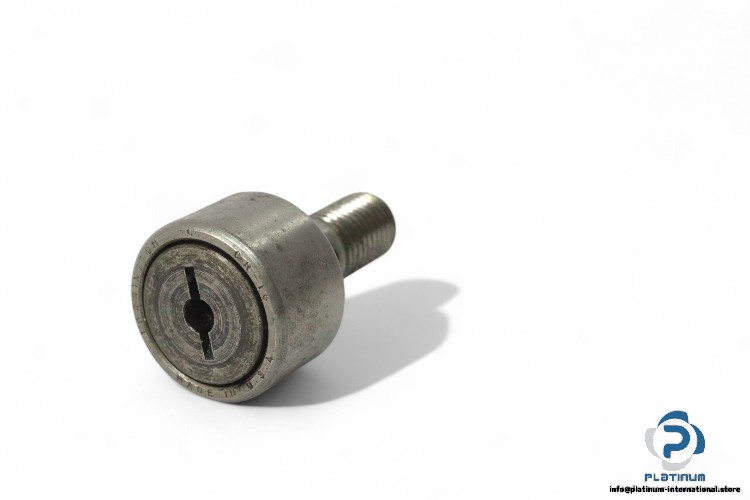

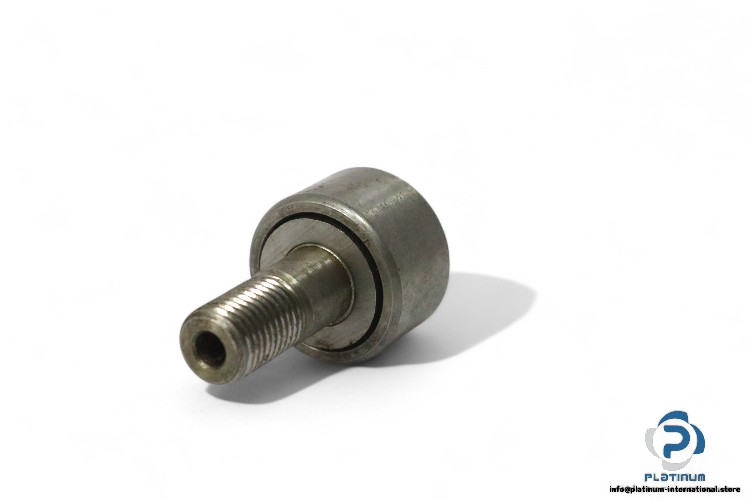

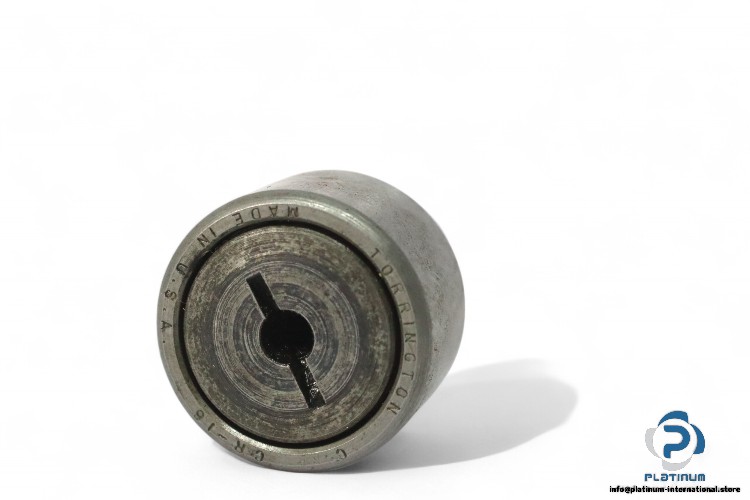

Torrington CR-16 Stud Type Track Roller
Used
In stock3 unitsReady to ship
Type: STUD TYPE TRACK ROLLER (CR) Model: CR-16
Manufacturer:
Torrington
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Torrington
Type: STUD TYPE TRACK ROLLER (CR)
Model: CR-16

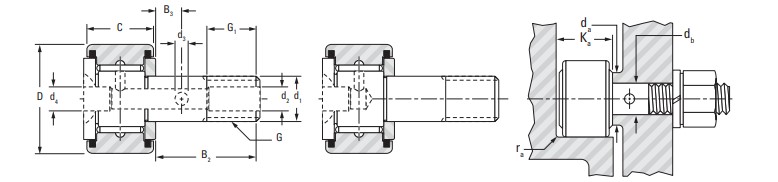

Dimensions
Outside diameter D: 25.40 mm , 1 inch
bore diameter for Stud d1: 11 .11 mm , 0.4375 inch
d3: 2.39 mm , 0.094
C: 15.88 mm , 0.625 inch
B2: 25.40 mm , 1 inch
B3: 6.35 mm , 0.250 inch
Basic load ratings As bearing:
Dynamic C: 13.3 kN , 2980 lbf
Static C0: 22.3 kN , 5010 lbf
C w Dynamic (Track roller): 8.94 kN , 2010 lbf
Fr Dynamic: 6.05 kN , 13.60 lbf
Fr Static: 14.5 kN , 3260 lbf
Speed rating Grease: 3000 1/min
Rolling elements: Needle rollers
Design: Regular stud-type, full complement needle rollers, inch series
