INA KWE30-V1-G3 Recirculating Ball Bearing Carriage
The INA KWE30-V1-G3 Recirculating Ball Bearing Carriage is designed to provide smooth and precise linear motion in various industrial applications. It features high load capacity and excellent rigidity, making it ideal for demanding systems requiring precision and reliability.
Manufacturer: INA
Type: Recirculating Ball Bearing Carriage
Model: KWE30-V1-G3

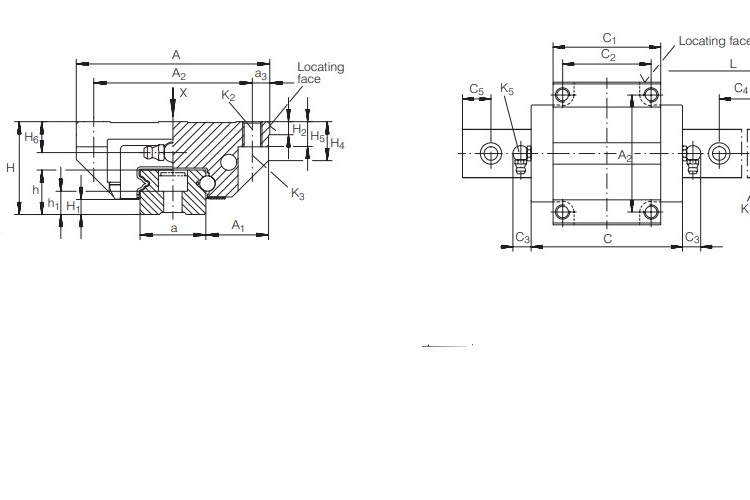

Technical Information:
- Size: 30 mm
- Height System H: 42 mm
- Width Carriage A: 90 mm
- Overall Length Carriage C: 93 mm
- A2: 72 mm
- C2: 52 mm
- Dynamic Load Capacity (C): 22.5 kN
- Static Load Capacity (C0): 29.7 kN
- Static Moment Rating About X Axis (M0x): 437 Nm
- Static Moment Rating About Y Axis (M0Y): 335 Nm
- Static Moment Rating About Z Axis (M0Z): 335 Nm
- Preload: V1
- Accuracy Class: G3
