INA KWVE20BSL G3V1 Linear Recirculating Ball Bearing
New
In stock1 unitReady to ship
Linear Recirculating Ball Bearing
INA KWVE20BSL G3 V1 linear recirculating ball bearing, size 20, narrow long carriage design (SL), preload V1, and high load capacity for precision linear motion systems. Suitable for CNC machines, automation systems, and high-precision industrial equipment.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

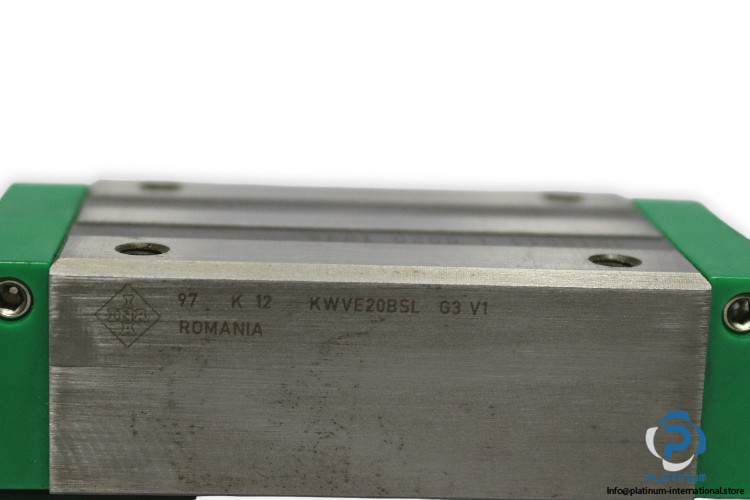

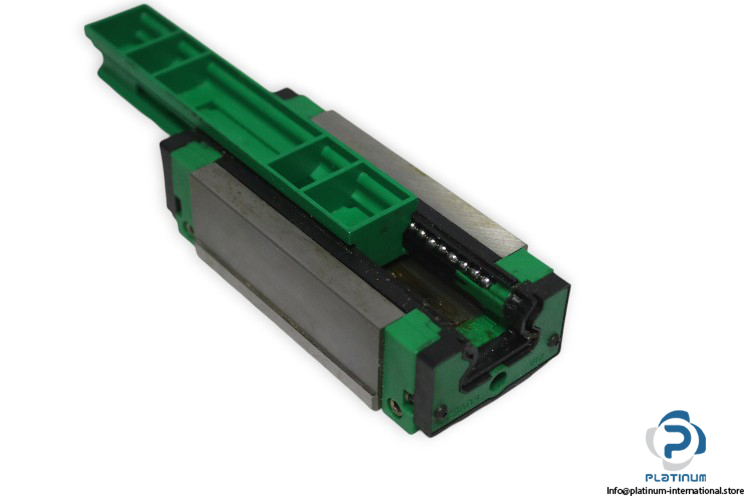

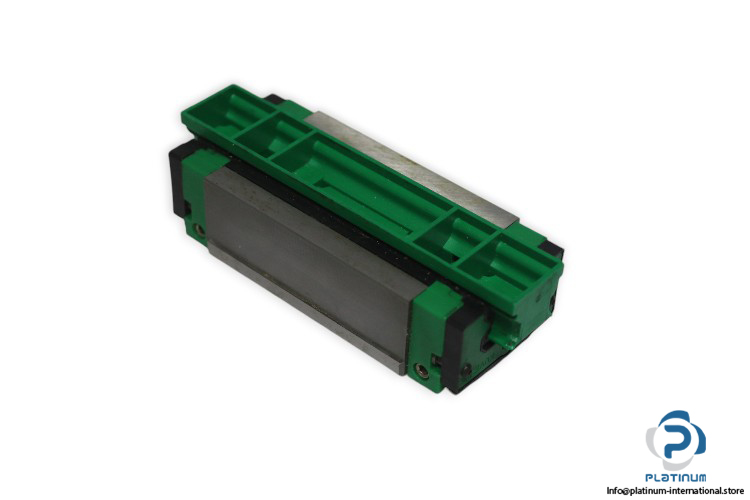

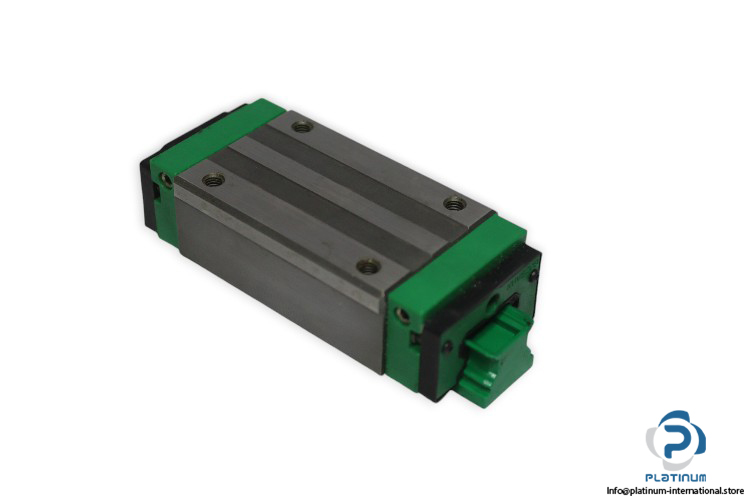

INA KWVE20BSL G3 V1 Linear Recirculating Ball Bearing
The INA KWVE20BSL G3 V1 is a precision linear recirculating ball bearing unit designed for high-load linear motion applications requiring accuracy, rigidity, and smooth operation.
Manufacturer: INA
Type: Linear Recirculating Ball Bearing
Model: KWVE20BSL G3 V1
Size: 20
We also provide the corresponding rails (guideways) in a wide range of lengths”please ask us if you need rails to match your bearing.

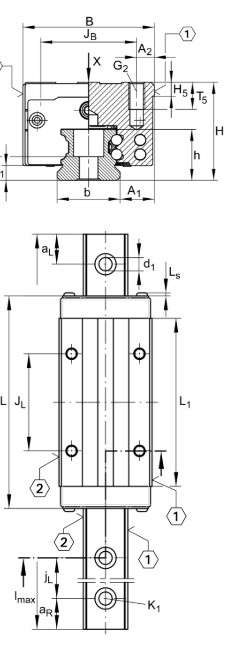

| Total Height (H) | 30 mm |
| Width Carriage (B) | 44 mm |
| Overall Length Carriage (L) | 88.9 mm |
| Block Height (H-H1) | 25.5 mm |
| JB | 32 mm |
| JL | 50 mm |
| Carriage Design | SL, Narrow, Long Carriage |
| Version | B |
| Dynamic Load Rating (C) | 16200 N |
| Static Load Rating (C0) | 36500 N |
| Static Moment Rating About X Axis (M0x) | 452 Nm |
| Static Moment Rating About Y Axis (M0Y) | 430 Nm |
| Static Moment Rating About Z Axis (M0Z) | 430 Nm |
| Preload | V1 |
| Lubrication Connector | G3, M5 |
