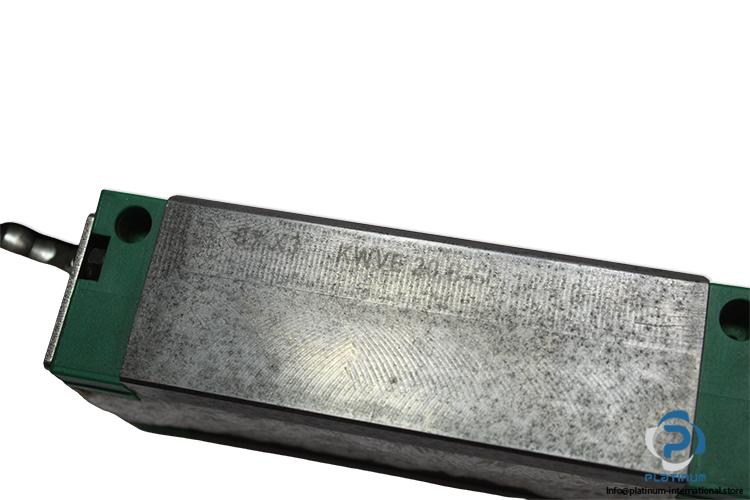

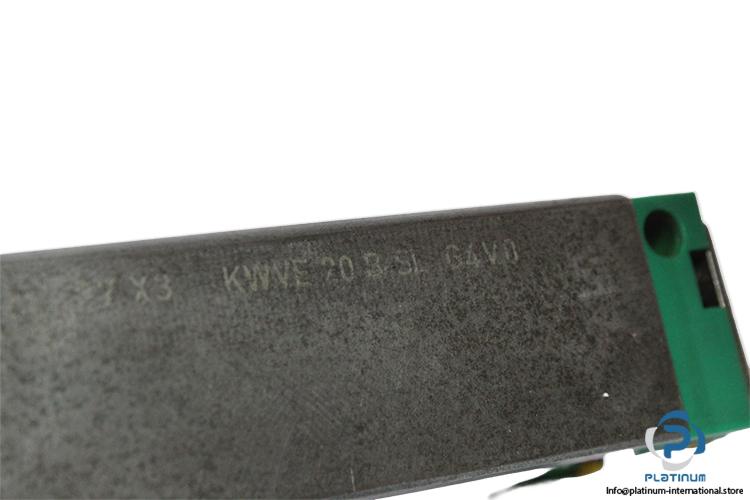

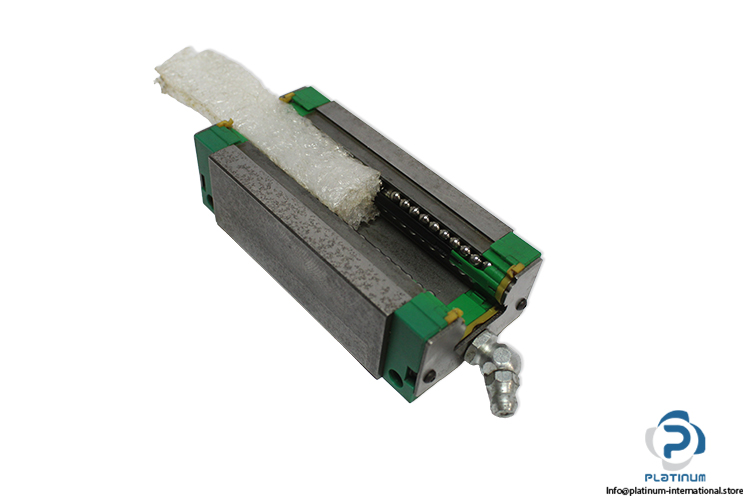

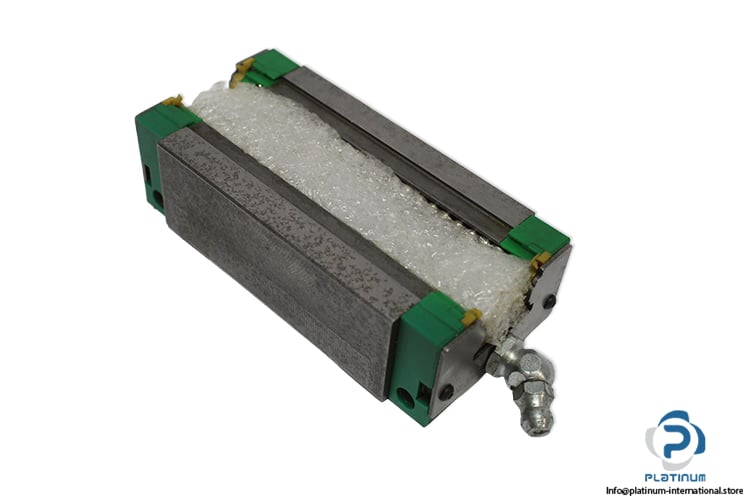

INA KWVE20B SL G4 V0 Linear Recirculating Ball Bearing Carriage
Used
In stock1 unitReady to ship
Linear Recirculating Ball Bearing Carriage
INA KWVE20B SL G4 V0 linear carriage, size 20, narrow long design with high load capacity and G4 accuracy for precision linear motion systems. Recommended for CNC machines and advanced automation equipment requiring stable and accurate movement.2020BBallbearingBlockCarriageCNCG4GuidewayInaKuveKWVE20BLinearMotionPrecisionRecirculatingSchaefflerSizeSLV0
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
INA KWVE20B SL G4 V0 Linear Recirculating Ball Bearing Carriage
The INA KWVE20B SL G4 V0 is a precision linear recirculating ball bearing carriage designed for smooth, high-load linear motion applications. Engineered by INA / Schaeffler, this narrow long carriage version ensures high rigidity, excellent load capacity, and reliable performance in demanding automation systems.
Manufacturer: INA / Schaeffler
Type: Linear Recirculating Ball Bearing Carriage
Model: KWVE20B SL G4 V0

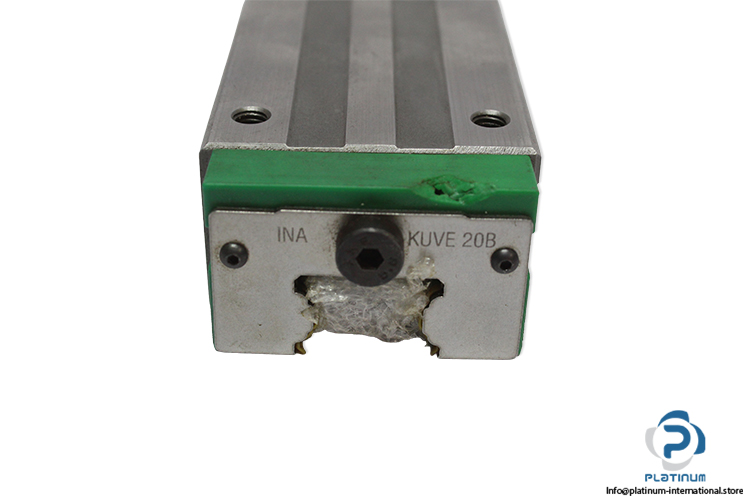

Guideway Model: KUVE 20B
Size Code: 20
Suitable for CNC machines, precision automation systems, and high-rigidity linear motion applications requiring stable load handling and accurate positioning.
Please contact us via Ask for assistance with any inquiries.

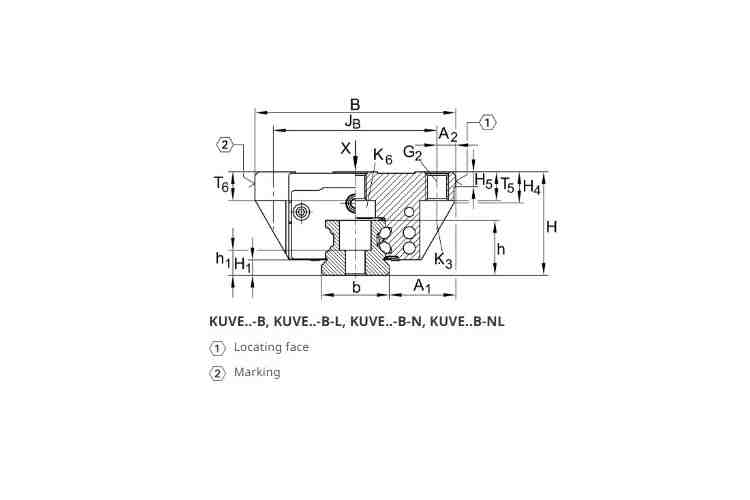

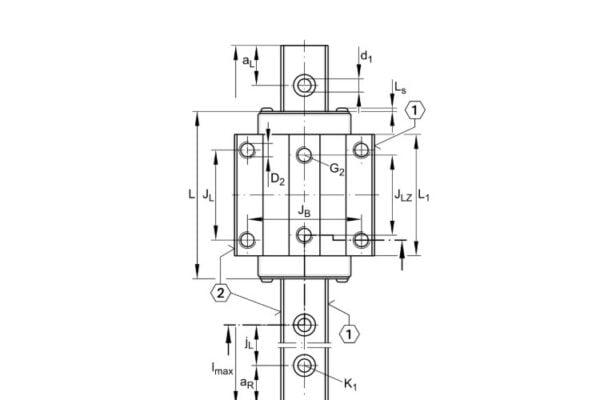

| Total Height (H) | 30 mm |
| Width Carriage (B) | 44 mm |
| Overall Length Carriage (L) | 88.9 mm |
| Block Height (H-H1) | 25.5 mm |
| JB | 32 mm |
| JL | 50 mm |
| Carriage Design | SL, Narrow, Long Carriage |
| Version | B |
| Dynamic Load Rating (C) | 16200 N |
| Static Load Rating (C0) | 36500 N |
| Static Moment Rating M0x | 452 Nm |
| Static Moment Rating M0y | 430 Nm |
| Static Moment Rating M0z | 430 Nm |
| Preload | V0 |
| Accuracy Class | G4 |
