Manufacturer: Schaeffler INA

Type: Four-row Linear recirculating Ball Bearing

Series: KUVE..B

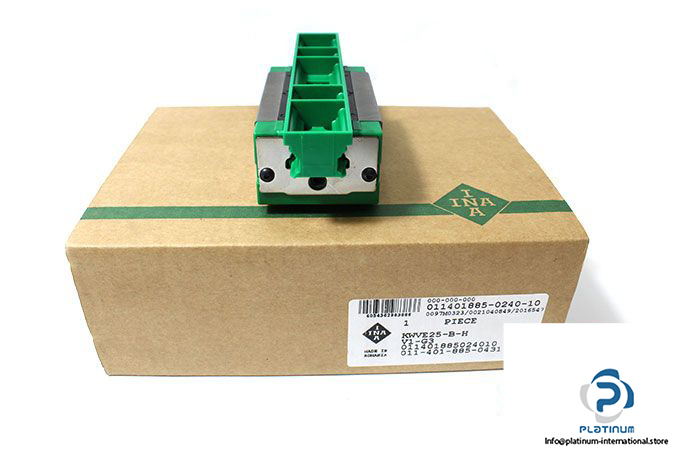

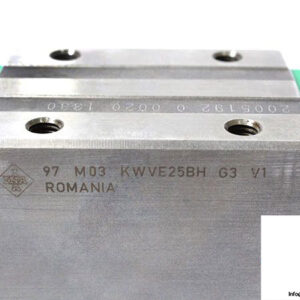

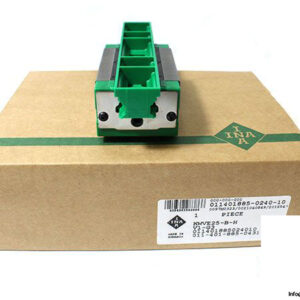

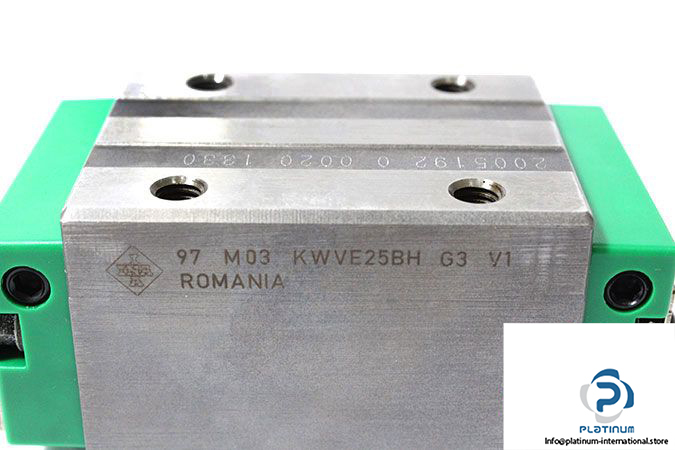

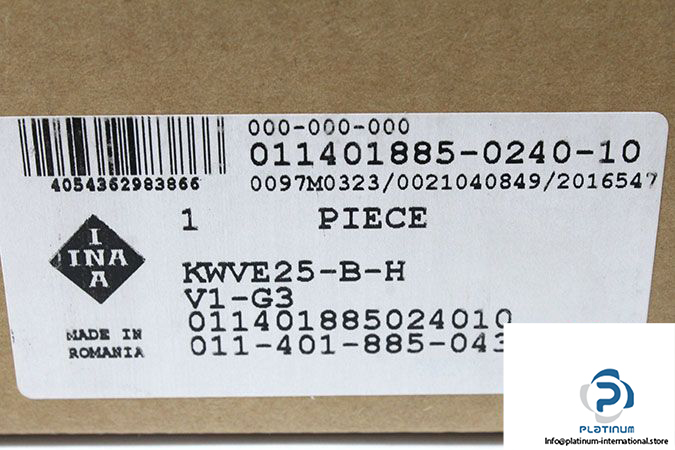

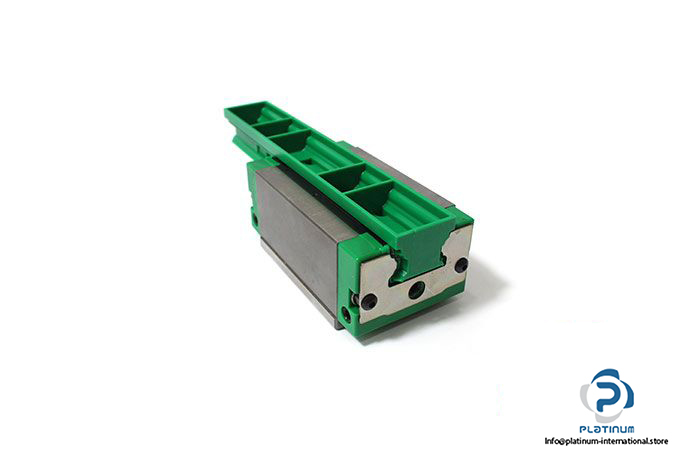

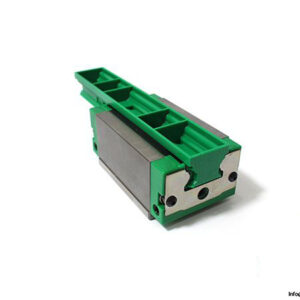

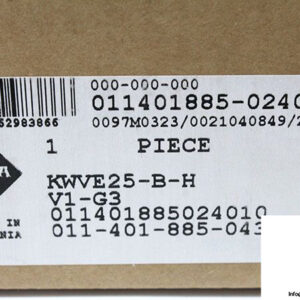

Model: KWVE25-B-H-V1-G3

Size: 25

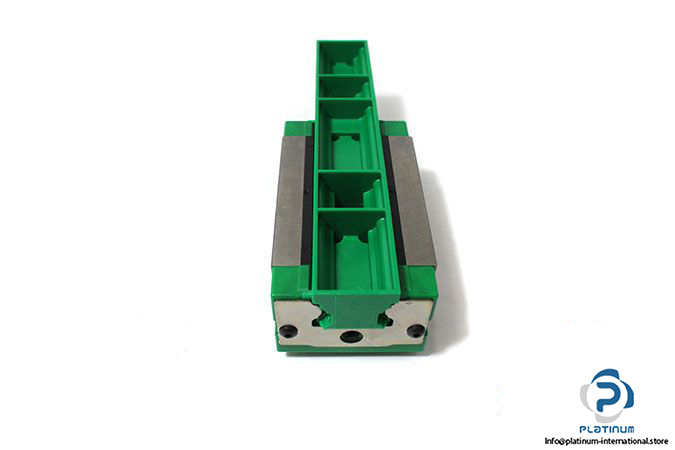

Carriage Design: High, Narrow Carriage

Basic Load Ratings:

Dynamic C: 17900 N

Static C₀: 37000 N

Static Moment Rating About:

X axis M_0x: 510 Nm

Y axis M_0Y: 395 Nm

Z axis M_0Z: 395 Nm

Carriage Preload: V1

Accuracy Class: G3

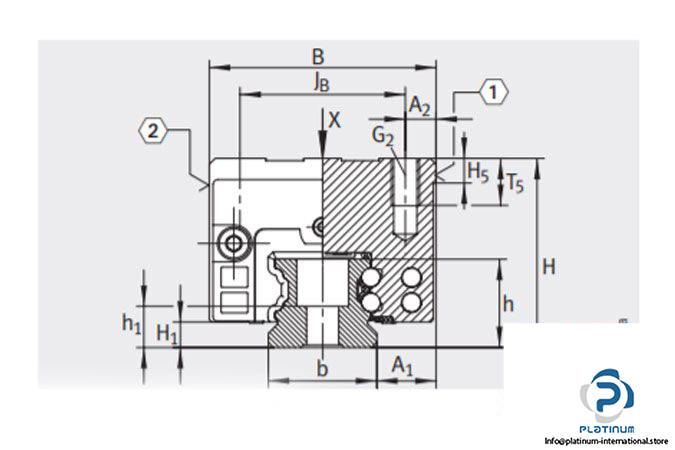

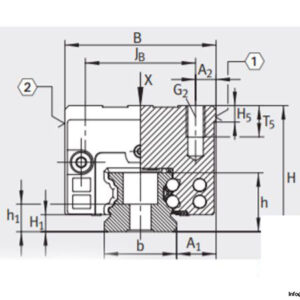

Dimensions

Total Height H: 40 mm

Width carriage B: 48 mm

Overall length carriage L: 83.3 mm

J_L: 35 mm

J_B: 35 mm

Weight: 0.74 kg
