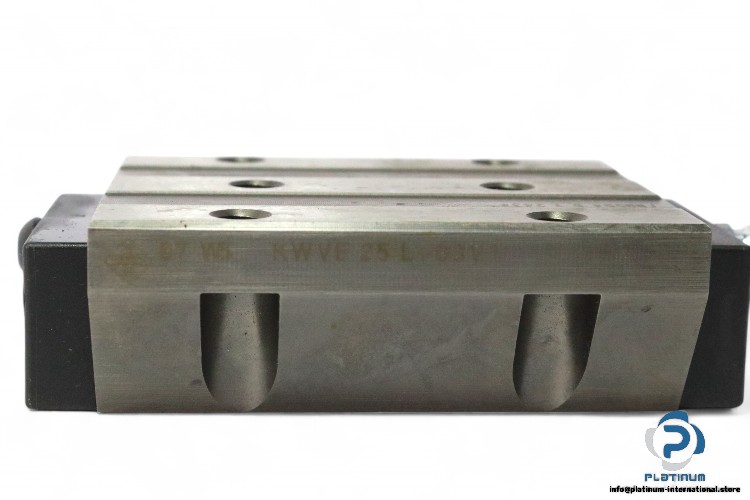

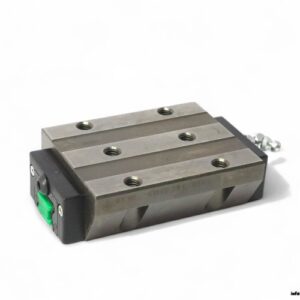

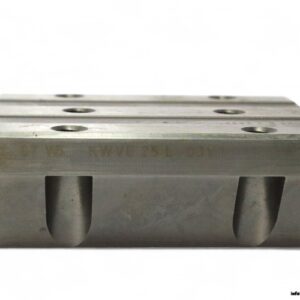

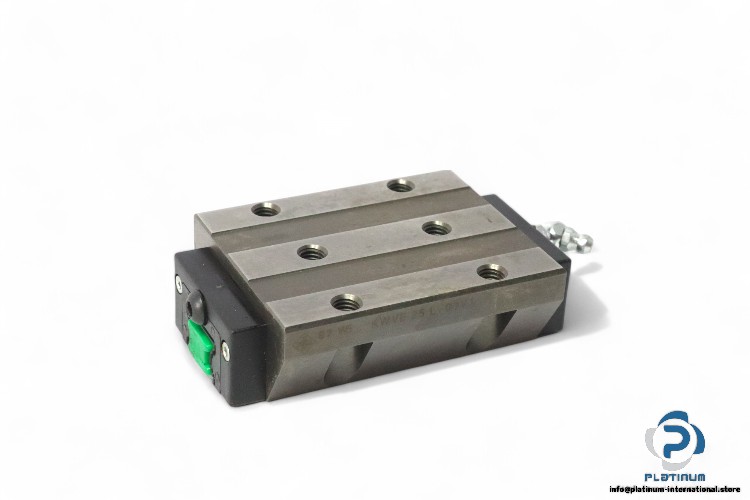

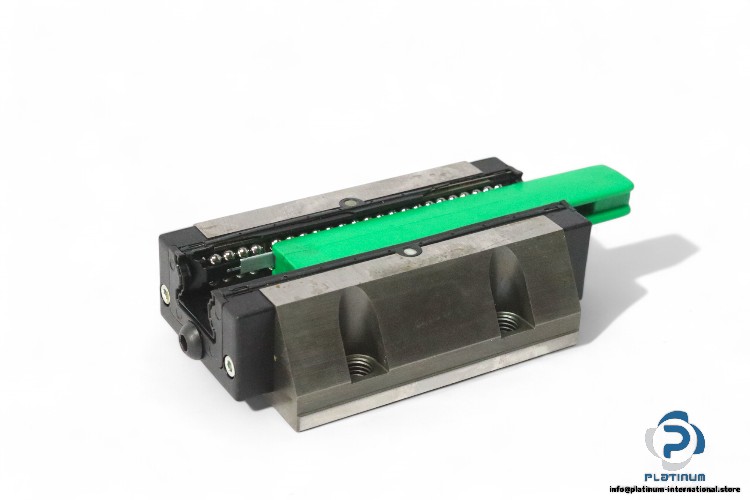

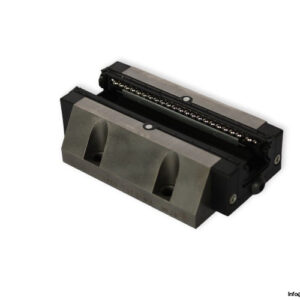

INA Kwve 25 L G3 V1 Linear Recirculating Ball

Manufacturer: INA
Type: LINEAR RECIRCULATING BALL
Model: KWVE-25-L-G3-V1

Size: 25 mm

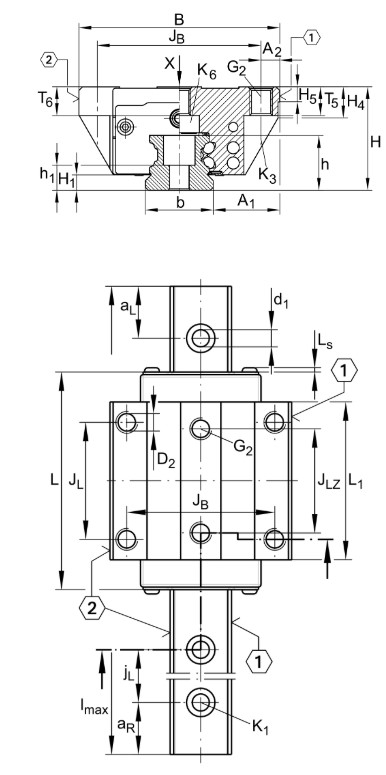

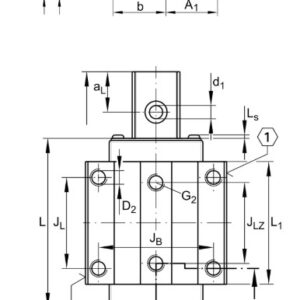

Dimensions
Height system H: 36 mm
Overall length carriage L: 109.1 mm
Width carriage B: 70 mm
Carriage height: 30.9 mm
H1: 5.1 mm
JB: 57 mm
JL: 45 mm
Width Rail b: 23 mm
Basic Load Ratings:
Dynamic C: 23,400 N
Static C₀: 54,000 N
Static Moment Rating About:
X axis M_0x: 745 Nm
Y axis M_0Y: 825 Nm
Z axis M_0Z: 825 Nm
Thread depth T5: 10 mm
Carriage design: L, Long carriage
Accuracy Class: G3
Carriage Preload: V1
