INA KWVE25L-G3-V1 Linear Recirculating Ball Bearing
Used
Available on request
Linear Recirculating Ball Bearing
The INA KWVE-25-L-G3-V1 Linear Recirculating Ball Bearing ensures precision linear motion with a long carriage design, G3 accuracy, and V1 preload for industrial applications.AccuracyBallbearingCapacityCarriageG3GuideHighInaIndustrialKWVE-25-L-G3-V1LinearLoadlongMotionPrecisionPreloadRecirculatingSystemV1
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

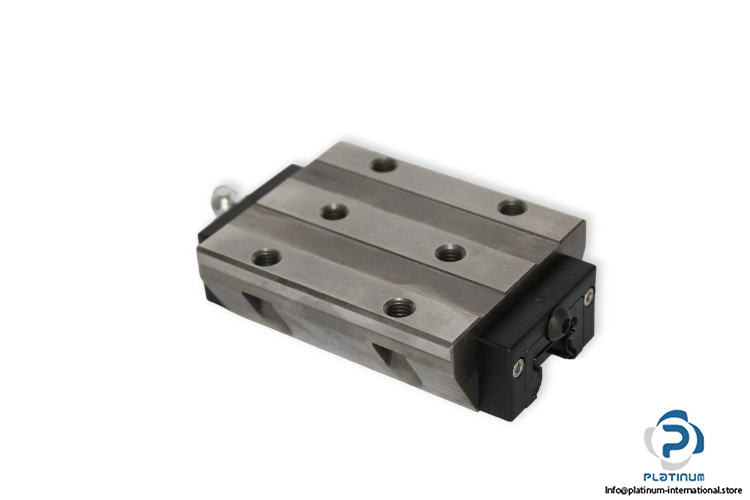

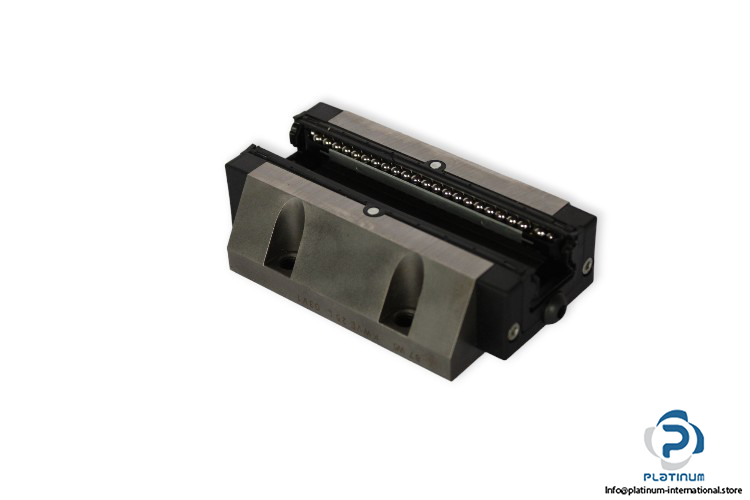

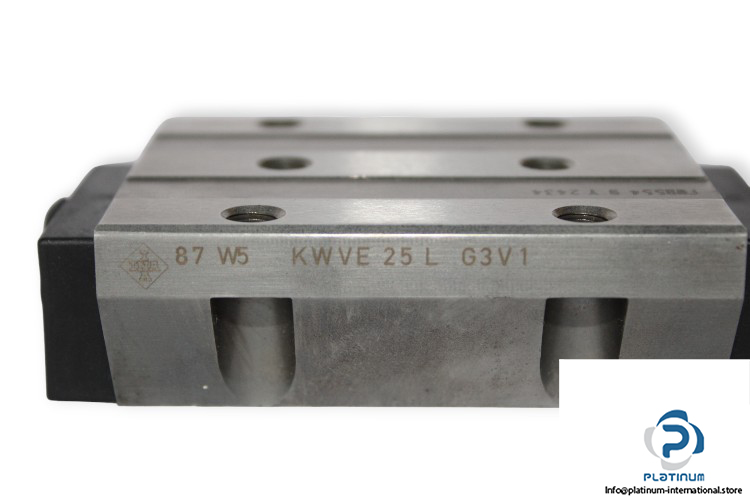

INA KWVE-25-L-G3-V1 Linear Recirculating Ball Bearing
The INA KWVE-25-L-G3-V1 Linear Recirculating Ball Bearing is a high-precision guide system designed for smooth and reliable linear motion. Featuring a long carriage design with G3 accuracy and V1 preload, this bearing ensures optimal load distribution and stability for industrial applications.
Manufacturer: INA
Type: Linear Recirculating Ball Bearing
Model: KWVE-25-L-G3-V1

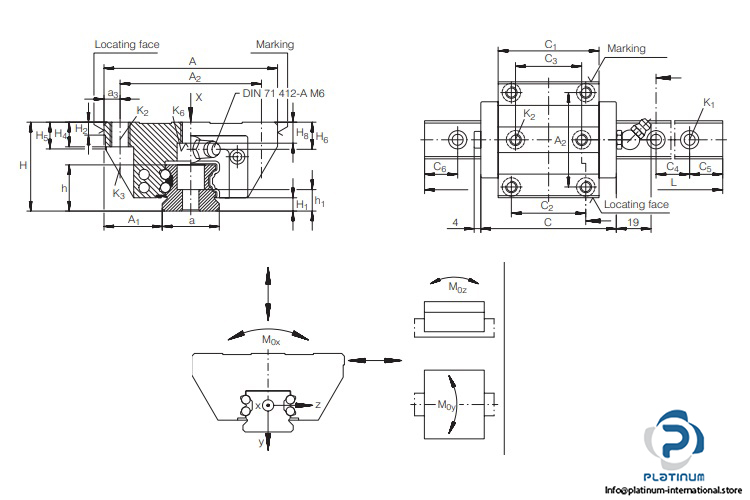

Dimensions:
Basic Load Ratings:
Static Moment Rating About:
| Size | 25 mm |
| Height System (H) | 36 mm |
| Overall Length Carriage (L) | 109.1 mm |
| Width Carriage (B) | 70 mm |
| Carriage Height | 30.9 mm |
| H1 | 5.1 mm |
| JB | 57 mm |
| JL | 45 mm |
| Width Rail (b) | 23 mm |
| Dynamic (C) | 23,400 N |
| Static (C0) | 54,000 N |
| X Axis (M0x) | 745 Nm |
| Y Axis (M0y) | 825 Nm |
| Z Axis (M0z) | 825 Nm |
| Thread Depth (T5) | 10 mm |
| Carriage Design | L, Long Carriage |
| Accuracy Class | G3 |
| Carriage Preload | V1 |
