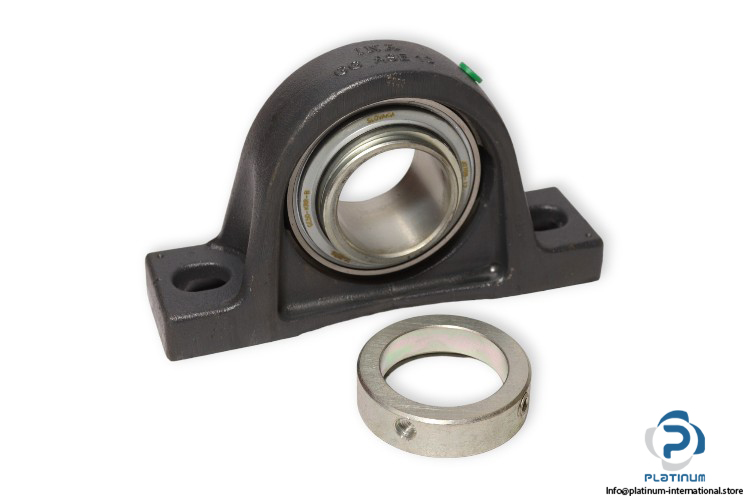

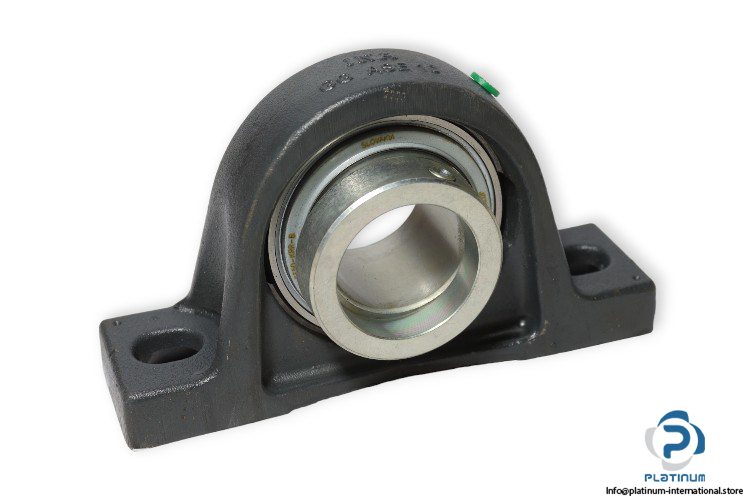

Manufacturer: Schaeffler INA
Type: Plummer block housing unit
Model: RASE50 N

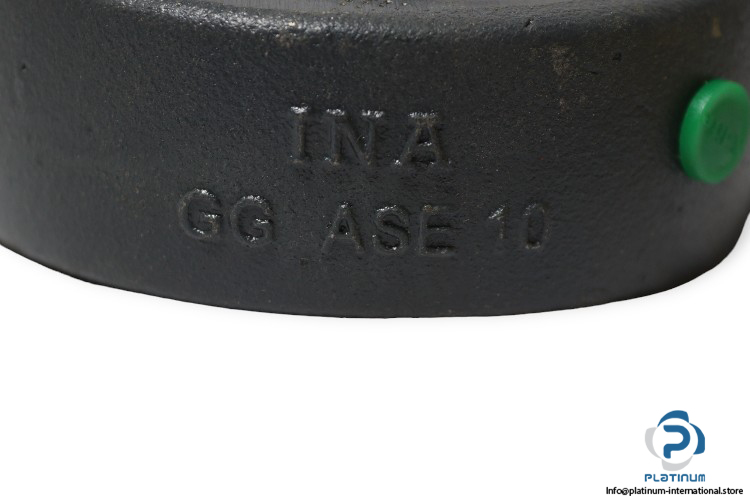

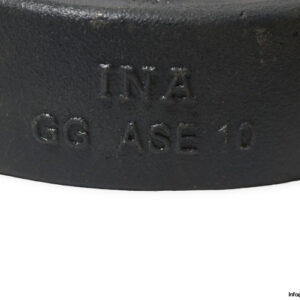

Housing: GG. ASE10

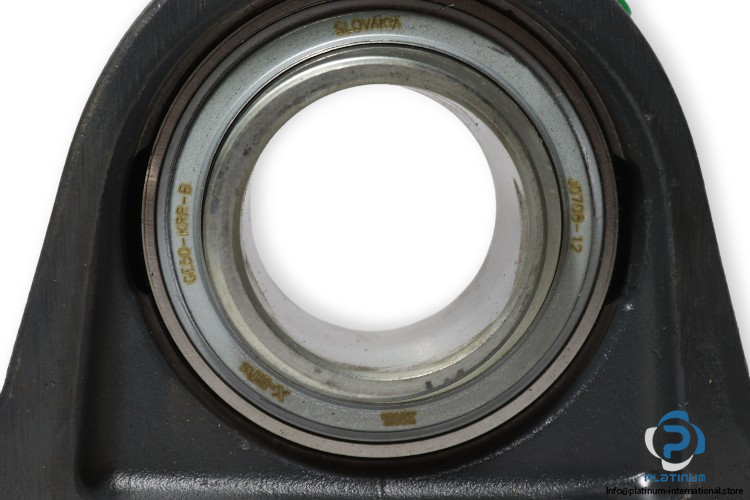

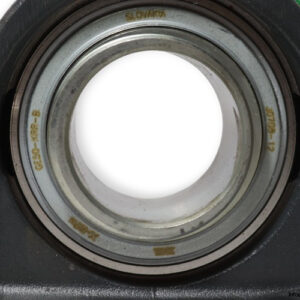

Bearing designation: GE50-KRR-B

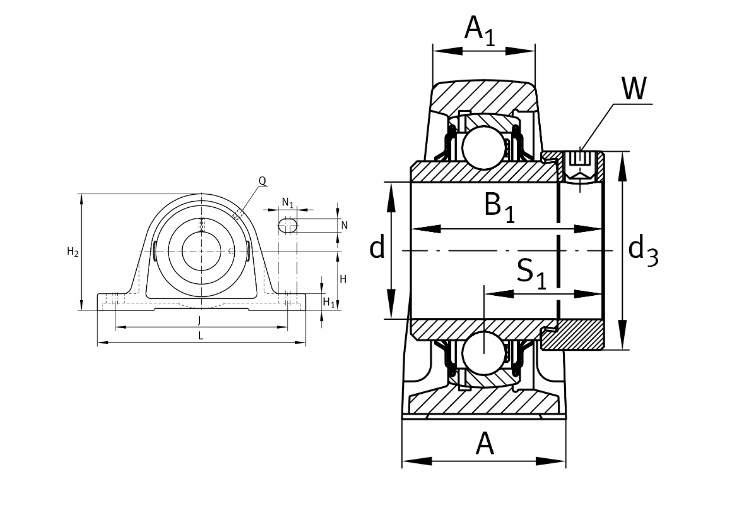

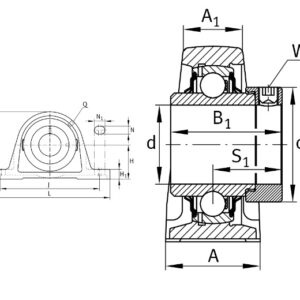

Dimensions
Bore Diameter d: 50 mm
Overall length L: 200 mm
Hight H2: 115 mm
Distance fixing bore J: 158 mm
Distance shaft axis H: 57.2 mm
width (Slot) N: 18 mm
Length (slot ) N1: 23 mm
Width (base) A: 54 mm
Locking collar total width B1: 62.8 mm
Connection thread for lubrication: M6
Groove: N, Cast iron housing with undercut slot for end caps
Locking device: eccentric locking collar
Material: GG, Grey cast iron
Protecting cap: KASK10
