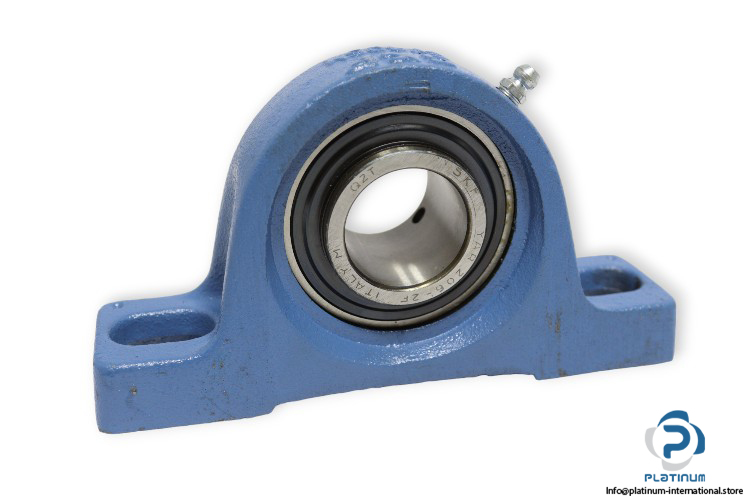

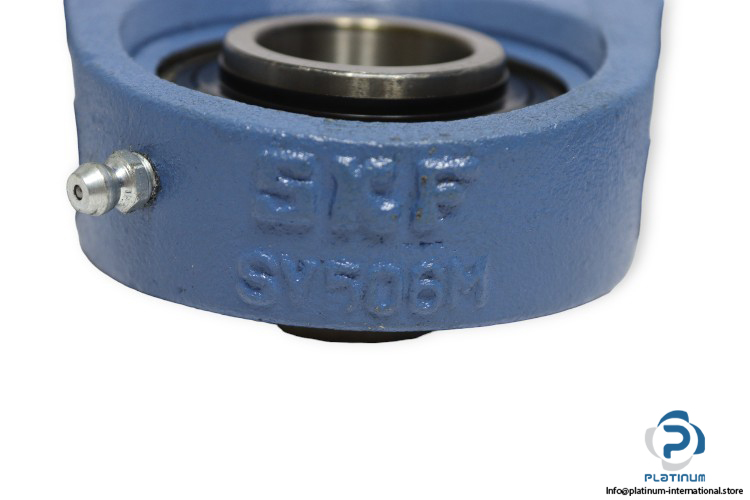

SKF SY 30 TF Pillow Block Ball Bearing Unit

Manufacturer: SKF
Type: Pillow block ball bearing unit
Model: SY 30TF

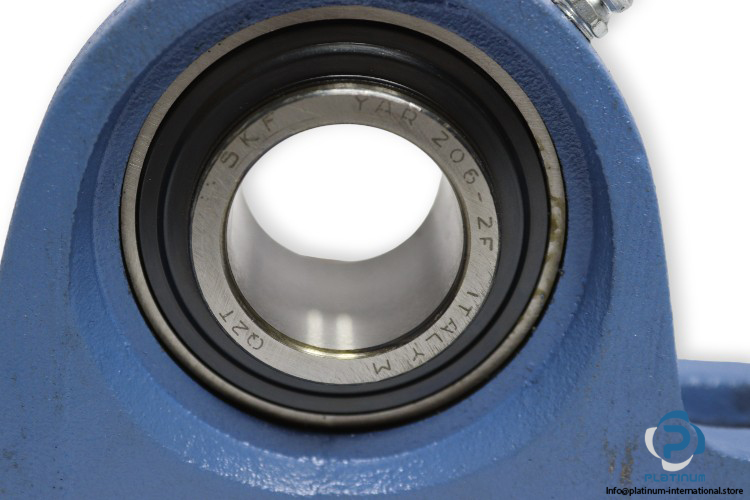

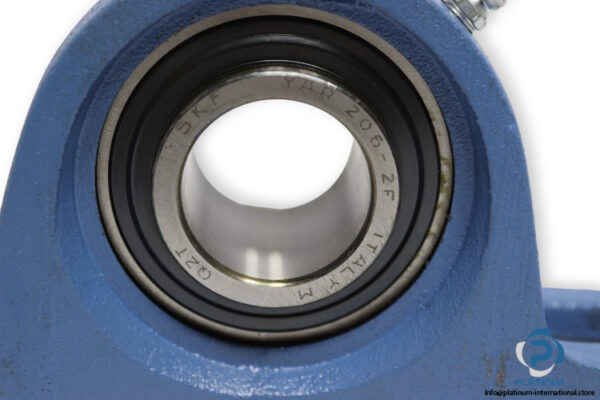

Bearing No.: YAR 206-2F

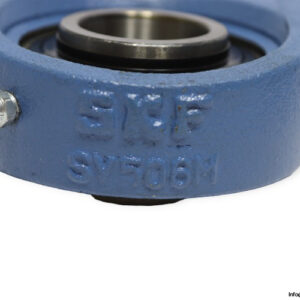

Housing No.: SY 506M

Dimensions
Bore Diameter d: 30 mm
Base width A: 40 mm
Height of spherical seat center H: 42.9 mm
Distance of attachment bolts J: 117.5 mm
Overall length L: 152 mm
Overall height H2: 82 mm
Basic dynamic load rating: 19.5 kN
Basic static load rating: 11.2 kN
Fatigue load limit: 0.475 kN
Limiting Speed: 6300 rpm
Material, housing: Cast iron
Sealing, bearing: Seal and flinger on both sides
