Manufacturer: Schaeffler INA

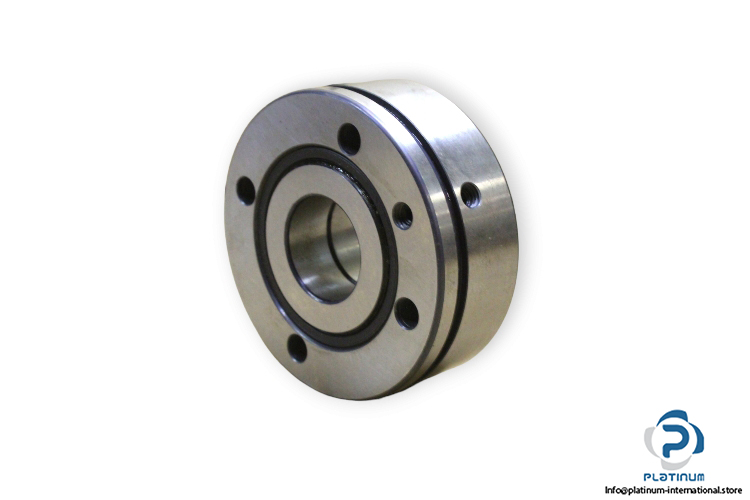

Type: Axial angular contact ball bearing

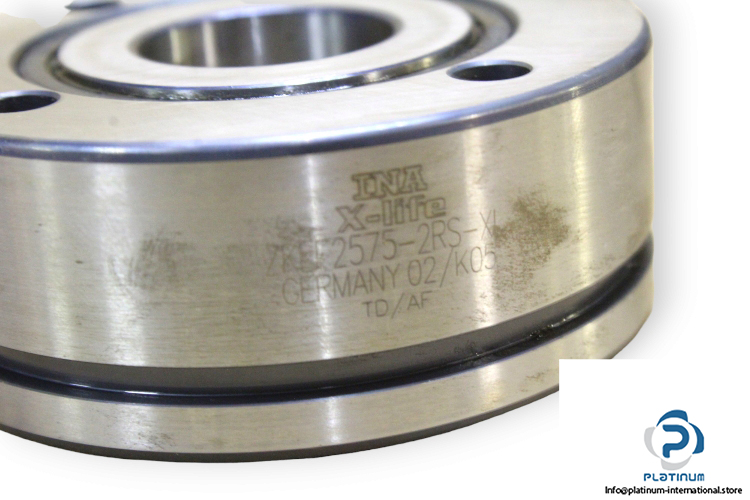

Model: ZKLF2575-2RS-XL
Dimensions
Bore Diameter d: 25 mm
Outer diameter D: 75 mm
Width B: 28 mm
Contact angle α: 60 °
Basic load ratings:
Dynamic Cr: 30500 N
Static C0r: 55000 N
Fatigue load limit: 3350 N
Limiting speed for grease lubrication: 5700 rpm
Thermally safe operating speed: 2600 rpm
Bearing frictional torque: 0.4 Nm
Seal: 2RS; Contact lip seals on both sides
Operating Temperature: -30 … +120 °C
