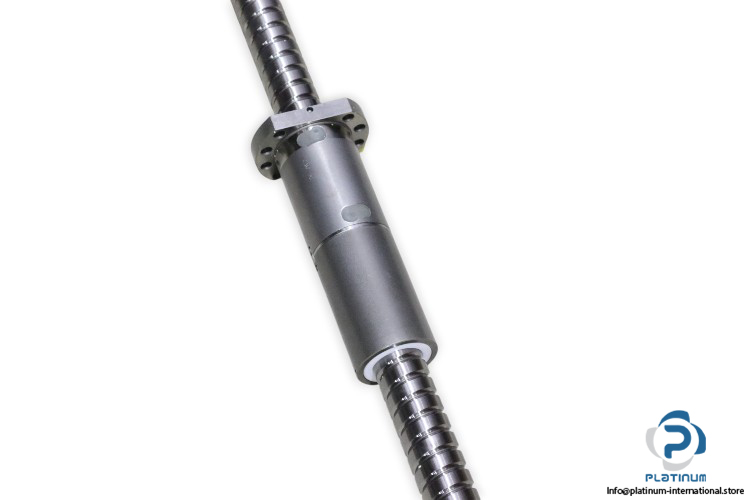

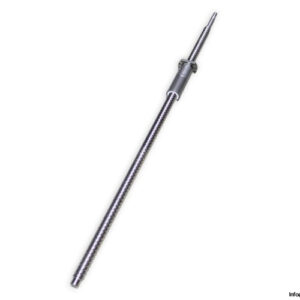

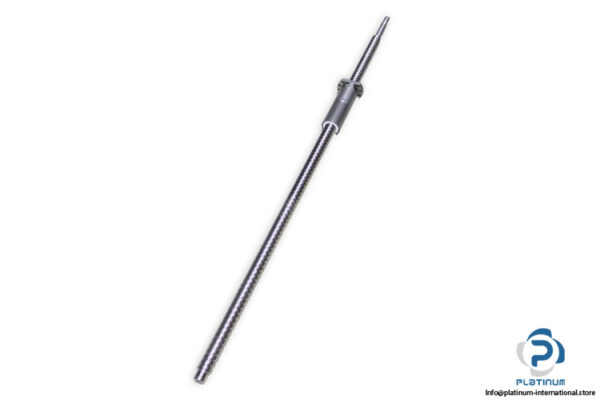

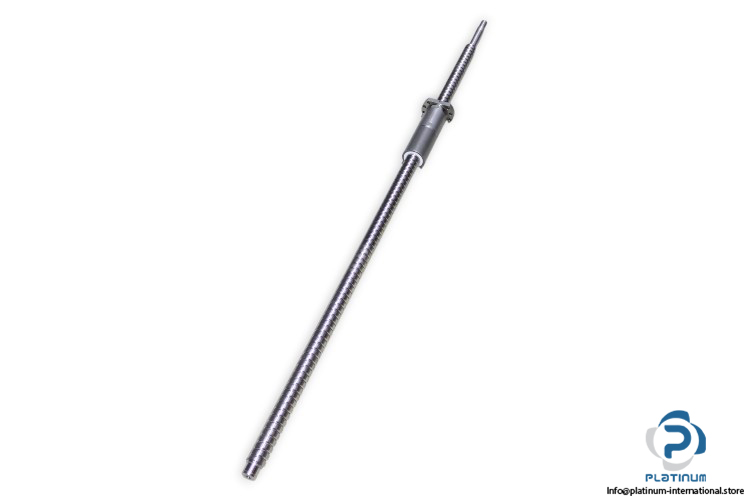

Jena Tec 40X15X1590 Flange Nut Ball Screw
The Jena Tec 40X15X1590 is a precision flange nut ball screw designed for high-performance motion control applications. With a 40 mm nominal diameter, 15 mm lead, and durable construction, it provides reliable linear motion with low friction torque, ensuring efficiency and accuracy in demanding industrial systems.
Manufacturer: Jena Tec
Type: Flange Nut Ball Screw
Model: 40X15X1590

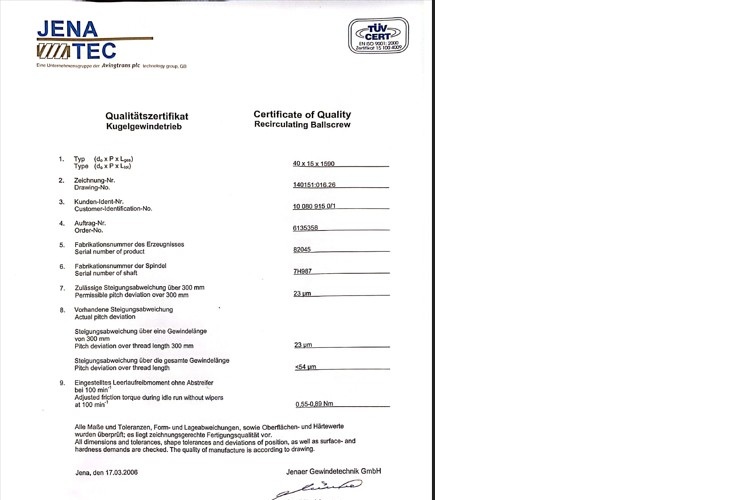

Drawing No.: 140151:016.26
Order No.: 6140280 / 6135358

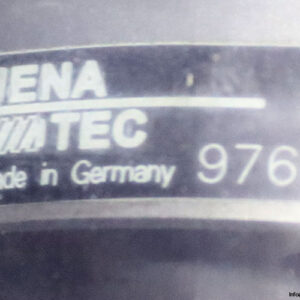

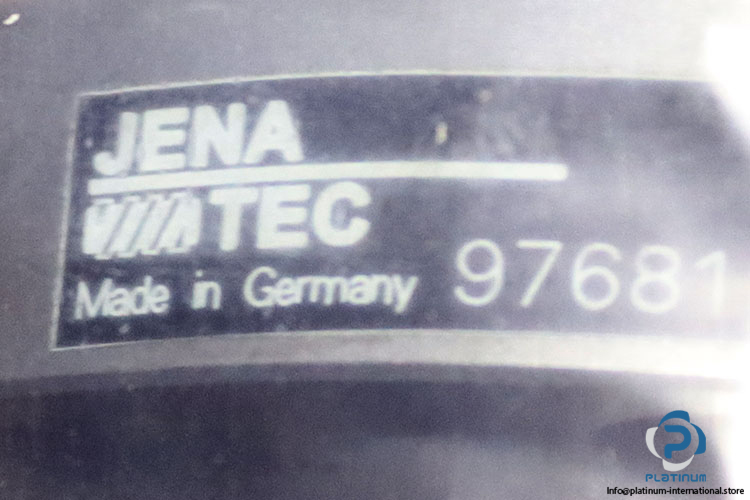

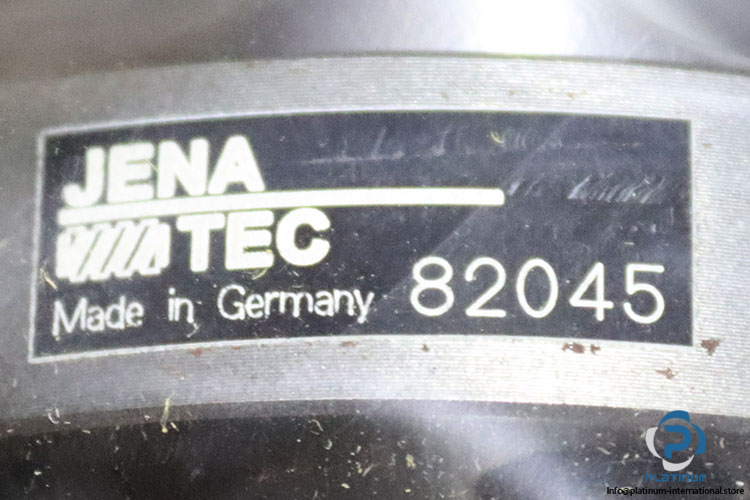

Serial Number of Product: 97681 / 82045
Serial Number of Shaft: 7Y363 / 7H987
Technical information
- Size: 40 x 15 R
- Nominal Diameter (dN): 40 mm
- Lead (P): 15 mm
- Number of Starts: 1
- Direction of Lead: Right-Hand Thread
- Threaded Length: 1440 mm
- Total Screw Length: 1590 mm
- Adjusted Friction Torque (at 100 min»¹, without wipers): 0.60 to 0.90 Nm
