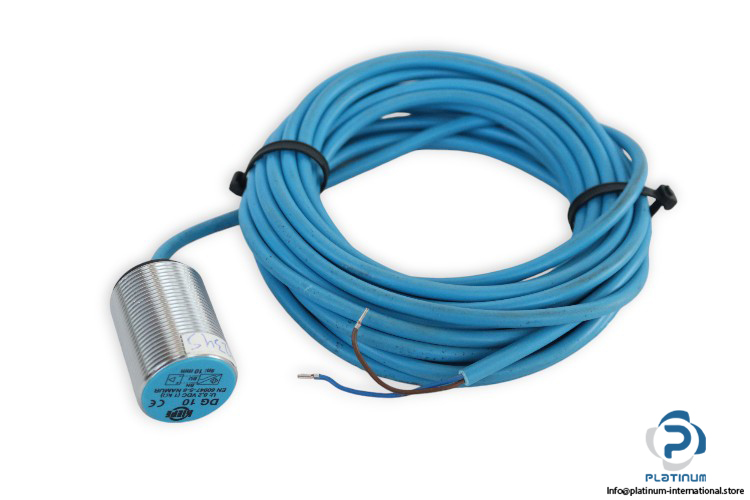

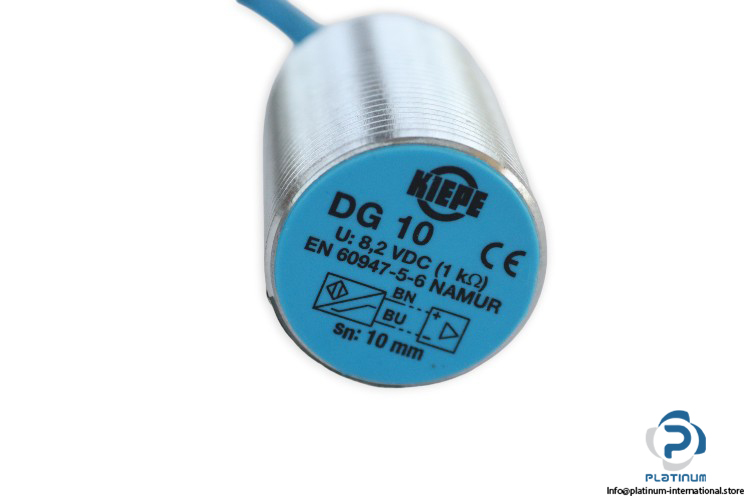

Manufacturer: KIEPE ELEKTRIK
Type: Pulse Transducer
Model: DG10
Sensing Range: 10 mm
Rated Supply Voltage (Us): 8.2 V DC
Internal Resistance: 1 k„¦
Sensor Design: Threaded Barrel, M30 x 1.5
Output: NAMUR
Tightening Torque Max.: 90 Nm
Electrical Connection: Cable 2-Wires, 2 m
Housing Material: Chrome-Plated Brass
Sensor Length, Diameter: 40, 30 mm
Protection Class: IP67
Ambient Temperature: -25 … 70 °C
