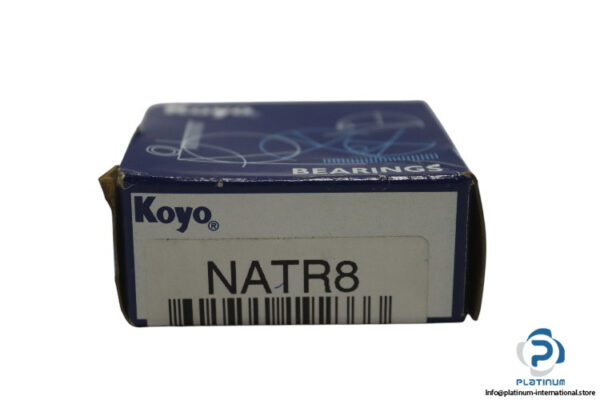

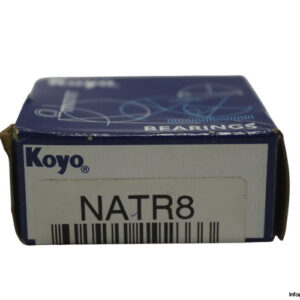

Koyo NATR8 Yoke Type Track Roller
The Koyo NATR8 Yoke Type Track Roller is designed for efficient load distribution and smooth movement, offering high dynamic and static load capacities with a crowned track roller design for enhanced performance.
Manufacturer: Koyo
Type: Yoke Type Track Roller
Model: NATR8
Technical Information:
- Bore Diameter: 8 mm
- Outer Diameter: 24 mm
- Width (inner ring): 15 mm
- Dynamic Load Rating (Cr): 8.39 kN
- Static Load Rating (C0r): 8.67 kN
- Speed on Permanent Grease Lubrication: 10,000 rpm
- Permissible Static Load (Radial): 8.08 kN
- Permissible Dynamic Load Outer Ring (Radial): 5.79 kN
- Design: Crowned Track Roller
