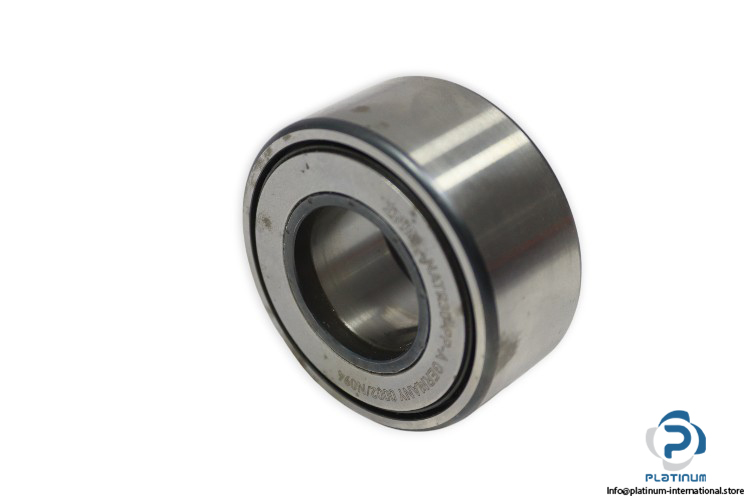

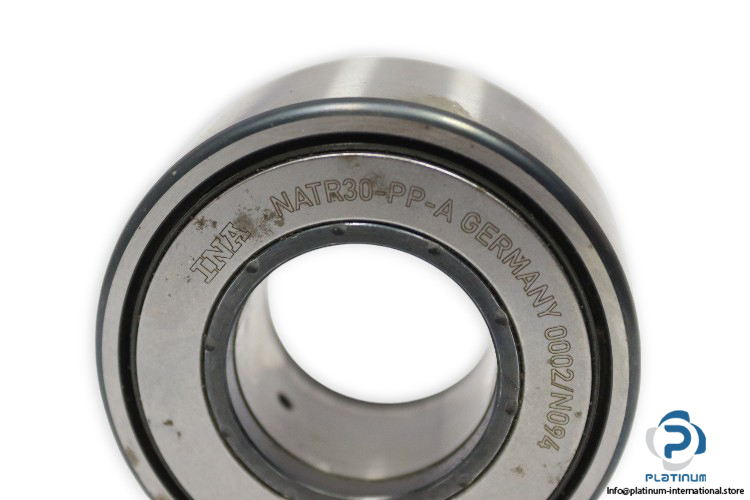

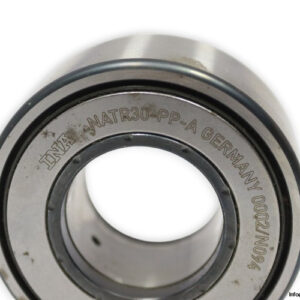

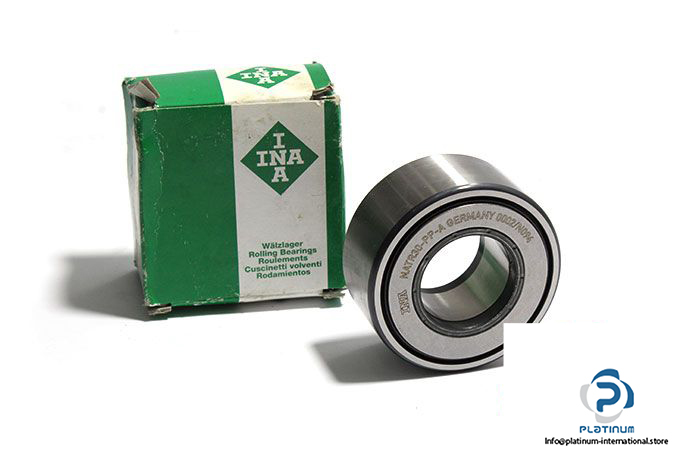

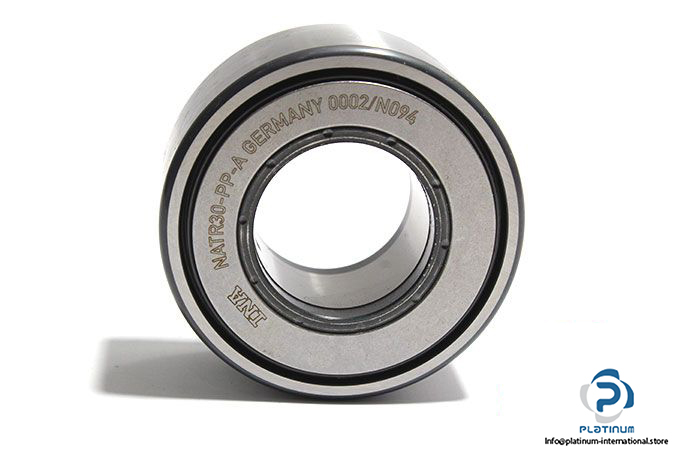

INA NATR30-PP-A Yoke Type Track Roller

Manufacturer: Schaeffler INA

Type: Yoke type track roller

Model: NATR 30-PP-A

Bore Diameter d: 30 mm

Outer diameter D: 62 mm

Width, inner ring B: 29 mm

Basic load ratings:

Dynamic C_r: 23300 N

Static C_0r: 39500 N

Fatigue load limit, radial: 5300 N

Speed on permanent grease lubrication: 1300 rpm

Permissible static load, radial: 39500 N

Permissible dynamic load outer ring, radial: 39500 N

Sealing: PP; Three-stage sealing by plastic axial plain washer on both sides

Weight: 0.46 kg
