Manufacturer: Koyo
Type: Pillow Block Ball Bearing Unit
Model: UCP206J
Bearing No.: UC206
Housing No.: P206 J

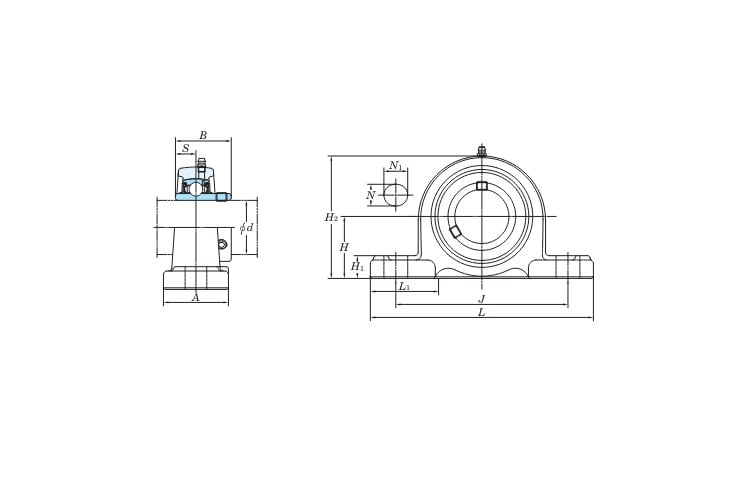

Dimensions
Bore Diameter d: 30 mm
Overall length L: 165 mm
Overall height H: 83 mm
Width of Inner Ring B: 38.1 mm
Distance Between Attachment Bolts J: 121 mm
Diameter of attachment bolt hole N: 17 mm
Basic load rating:
Dynamic C: 19500 N
Static C₀: 11300 N
Bore type: Cylindrical
Locking Device: Set screws
