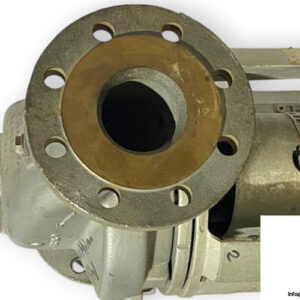

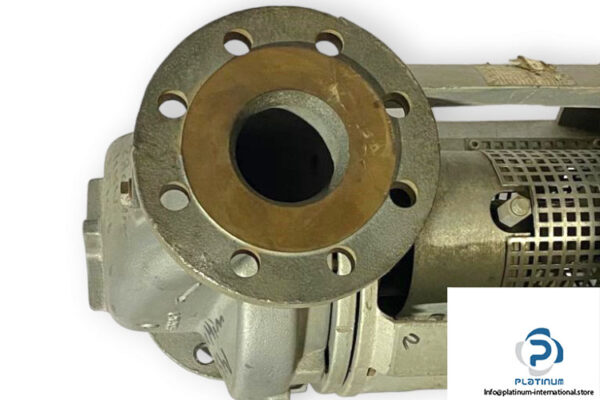

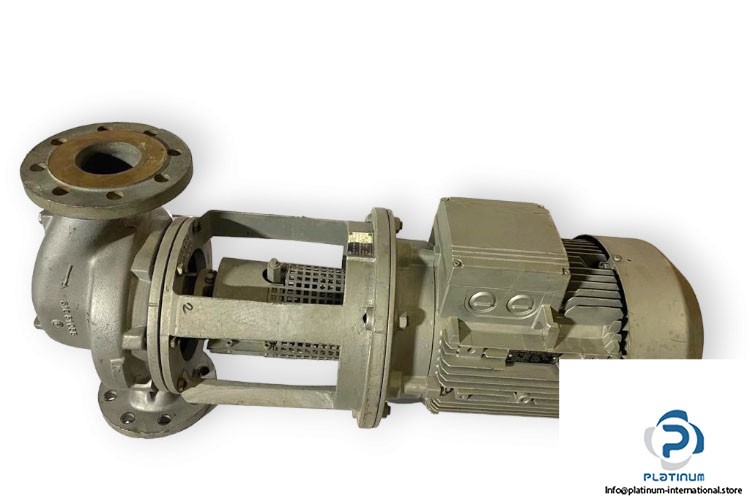

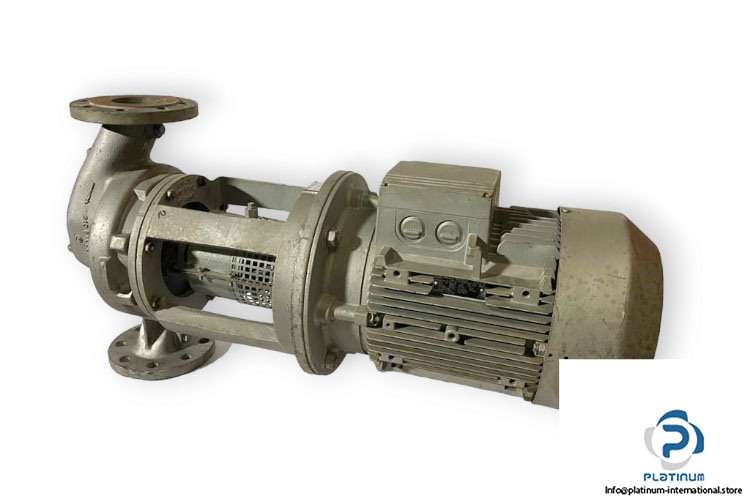

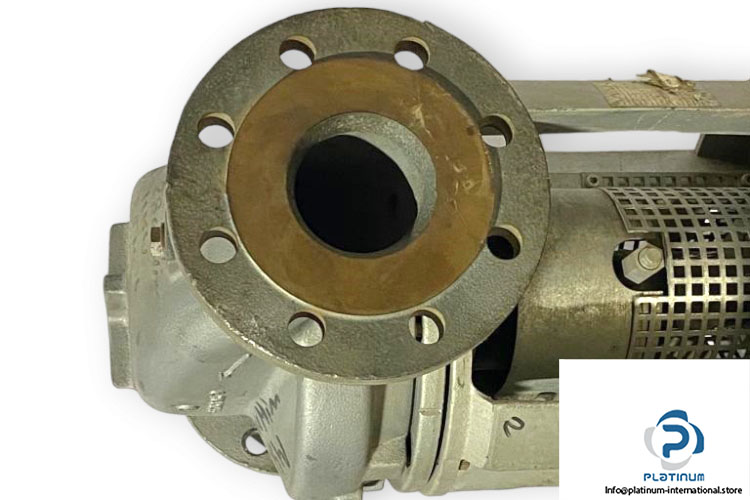

KSB ETALINE SY 080-200/1102 In-Line Pump with KSB 1LA7163-2AA66-ZX77A 3-Phase Motor
The KSB ETALINE SY 080-200/1102 is a high-performance in-line pump, designed for efficient fluid circulation in various industrial applications. Paired with the KSB 1LA7163-2AA66-ZX77A 3-phase motor, it offers reliable operation with exceptional flow rates and temperature stability. This combination ensures optimal efficiency and durability across a wide range of fluid handling systems.
Manufacturer: KSB
Type: In-Line Pump
Series: ETALINE
Model: SY 080-200/1102
ID No.: 00117385
MNR: 9970831501 000100.02

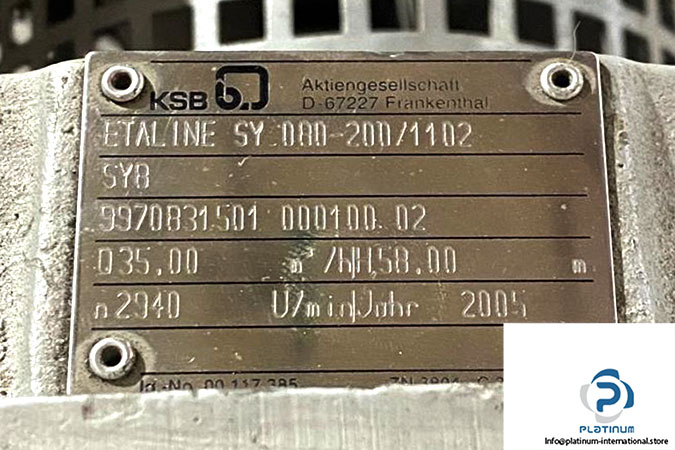

Technical Data (Pump):
- Pump Size: 80
- Flow Rate: 35 m³/h
- Fluid Temperature: -30 to 140°C
- Motor Protection Rating: IP 55
Attachment (Motor):
- Manufacturer: KSB
- Type: 3-Phase Motor
- Model: 1LA7163-2AA66-ZX77A
- ID No.: 01053454
- Ref No.: UD 0502/177282-022-30

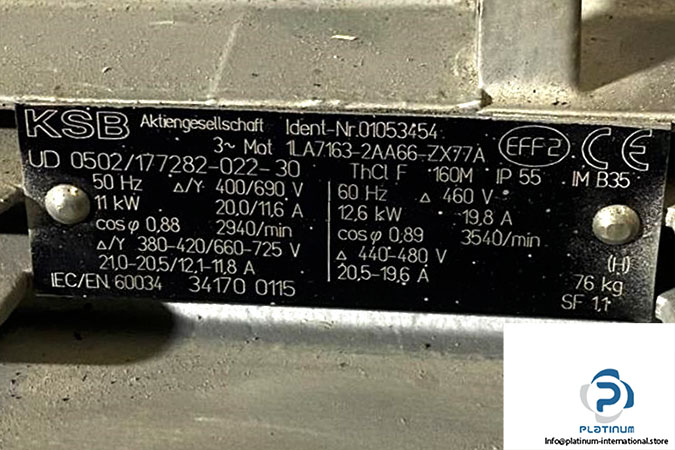

Technical Data (Motor):
- Motor Voltage [V] at 50 Hz: 400/690 Delta/Star
- Nominal Current [A] Delta/Star: 20/11.6
- Rated Speed [rpm]: 2940
- Rated Power [kW]: 11
- Motor Voltage [V] at 60 Hz: 460 Delta
- Nominal Current [A] Delta: 19.8
- Rated Speed [rpm]: 3540
- Rated Power [kW]: 12.6
