Fezer VT 4.4 Vacuum Pump
Used
In stock1 unitReady to ship
Vacuum Pump
FEZER VT 4.4 Vacuum Pump is designed for high-performance vacuum applications, featuring a rated speed of 2800 / 3300 RPM and an inlet capacity of 4.1 / 4.7 m³/h. It is integrated with the D 63 A2 F Motor, ensuring reliable operation with optimized power efficiency.28004.763850A2CapacityClassDFFezerHigh-EfficiencyIndustrialInsulationIP54m³/hmbarmotorProtectionpumprpmSystemtechnologyvacuum
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

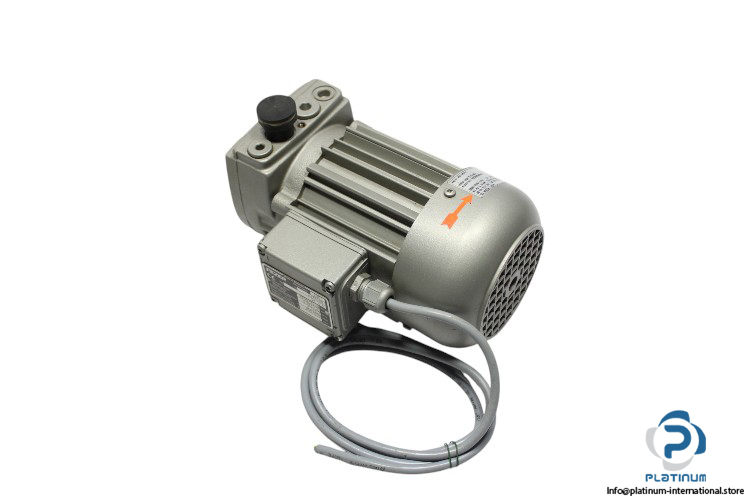

FEZER VT 4.4 Vacuum Pump
The FEZER VT 4.4 Vacuum Pump is a high-performance solution designed for industrial applications requiring reliable vacuum generation. With a compact design and efficient motor integration, this pump ensures stable operation at various speeds and pressure levels. Attached with the D 63 A2 F Motor, it delivers optimized power and efficiency for demanding environments.
- Manufacturer: FEZER
- Type: Vacuum Pump
- Model: VT 4.4
- Part No: 2328906

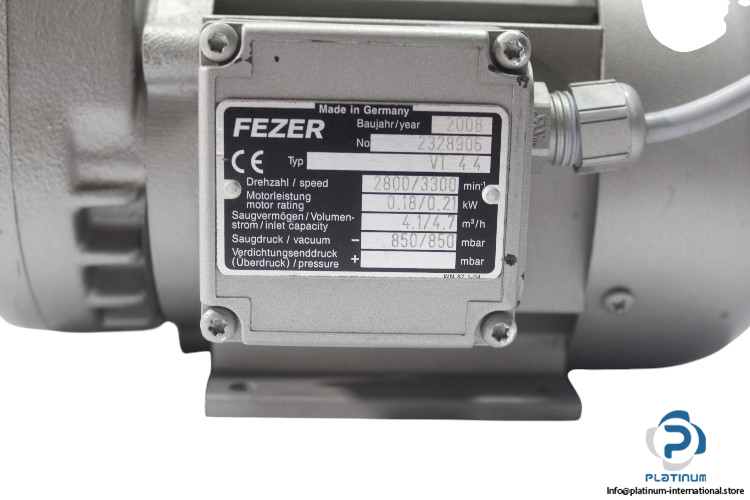

Technical Specifications
- Pressure: 850 mbar
- Rated Speed: 2800 / 3300 RPM
- Inlet Capacity: 4.1 / 4.7 m³/h
- Rated Power: 0.18 / 0.21 kW

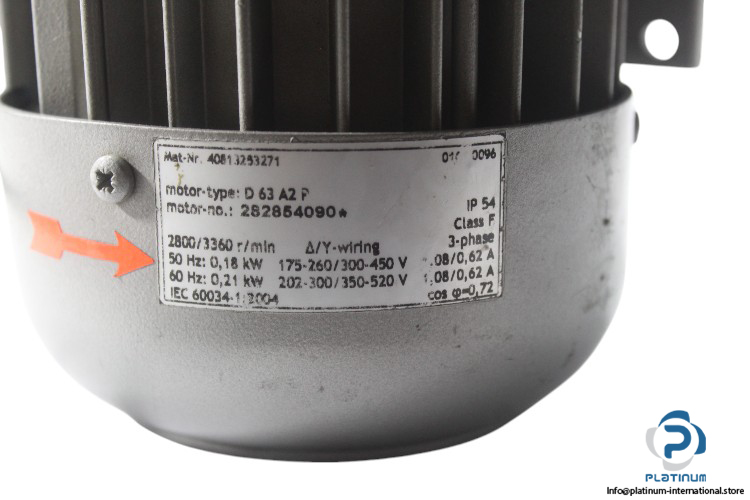

Attached Motor – D 63 A2 F
- Type: Motor
- Model: D 63 A2 F
- Part No: 282854090
- Rated Speed: 2800 / 3360 RPM
- Rated Voltage (50 Hz): 175 “ 260 / 300 – 450 V
- Rated Power (50 Hz): 0.18 kW
- Rated Voltage (60 Hz): 202 “ 300 / 350 – 520 V
- Rated Power (60 Hz): 0.21 kW
- Power Factor: 0.72
- Protection Class: IP54
- Insulation Class: F
