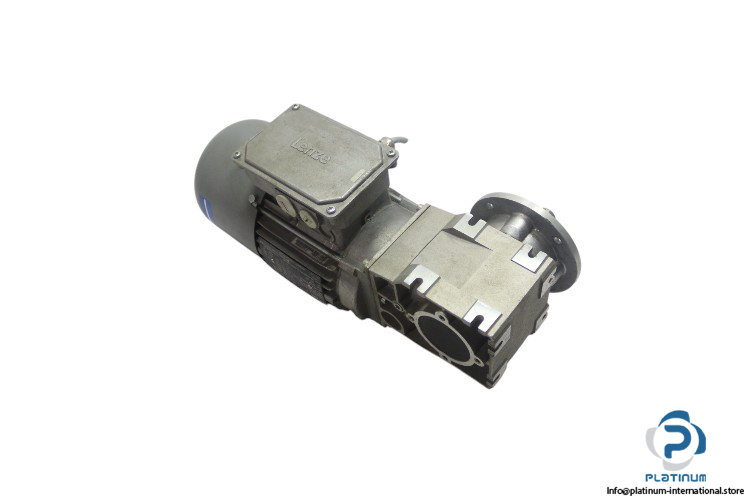

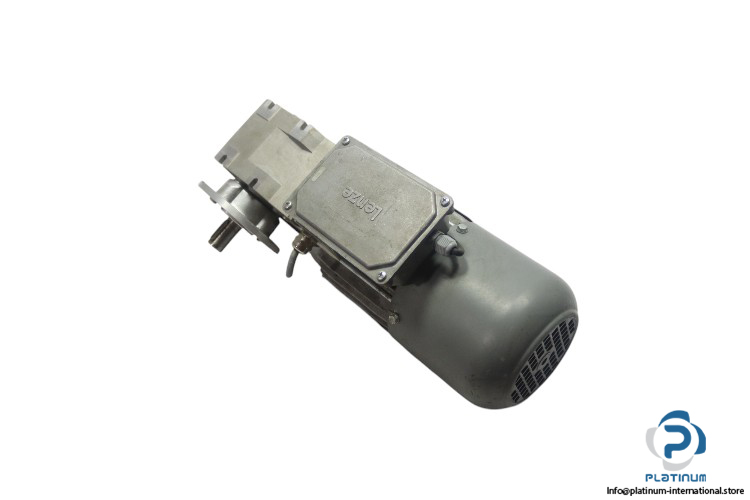

Lenze GKR03-2M VAK 071C32 Gearmotor

The Lenze GKR03-2M VAK 071C32 Gearmotor is engineered for reliable performance in industrial applications, offering high efficiency, versatility, and robust design. With various rated voltages and speeds, it provides optimal torque and speed control for demanding environments.

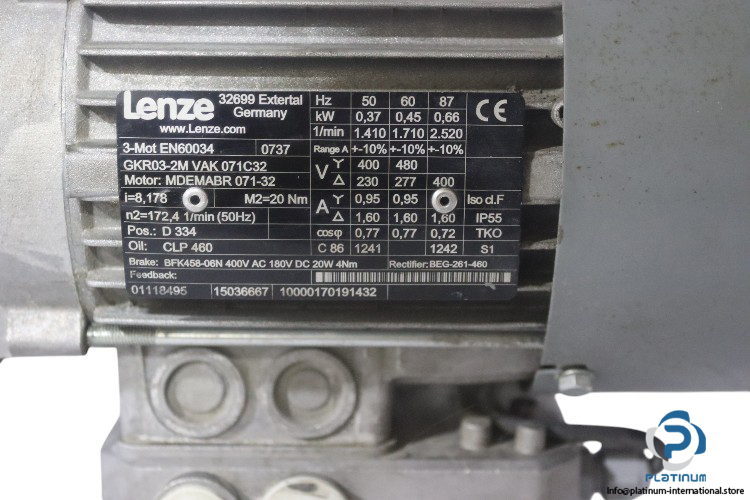

Manufacturer: Lenze

Model: GKR03-2M VAK 071C32

Type: Gearmotor

Part No.: 01118495 / 15036667 / 10000170191432

Rectifier: BEG-261-460

Technical Information:

• Frequency [Hz]: 50/60/87
• Rated Power [kW]: 0.37/0.45/0.66
• Rated Voltage [V]: star 400/480, Delta 230/277/400
• Rated Current [A]: star 0.95, delta 1.60
• Rated Speed [min-1]: 1410/1710/2520
• Protection Class [IP]: 55
• Thermal Class: F
• Duty: S1
• Power Factor [cos]: 0.77/0.77/0.72
• C86: 1241/-/1242
• Ratio: 8.178
• Torque2: 20 Nm
• Speed2: 1724 rpm @ 50 Hz
• Oil Type: CLP460
• Brake: BFK458-06N
• Brake Voltage [V]: 400 AC, 180 DC
• Power [W]: 20
• Brake Torque [Nm]: 4
