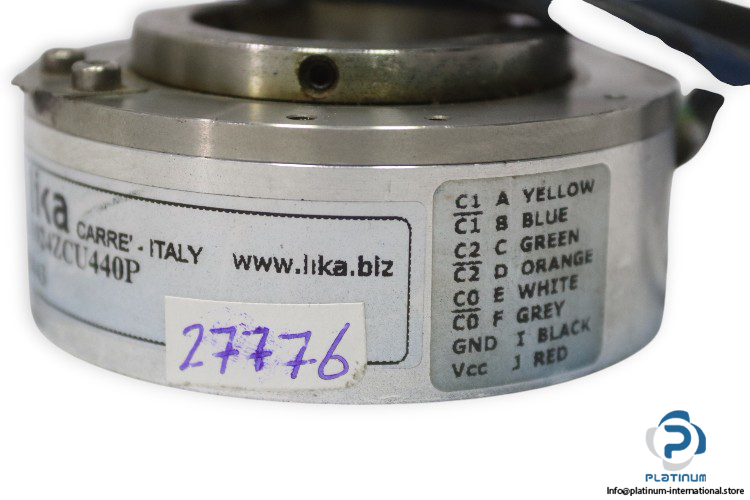

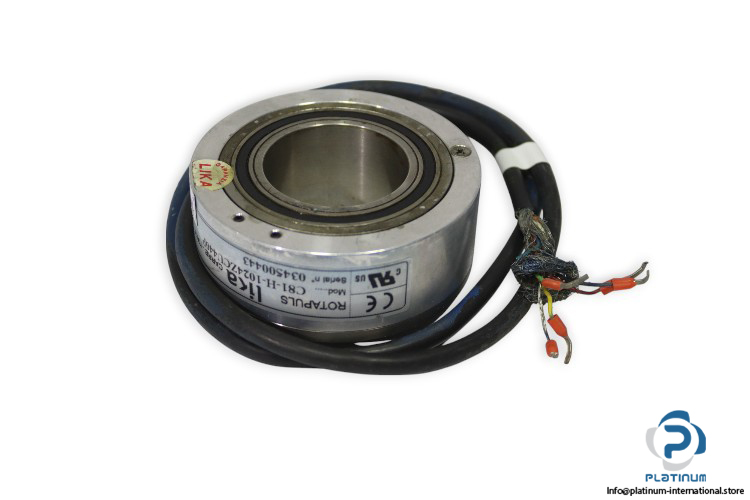

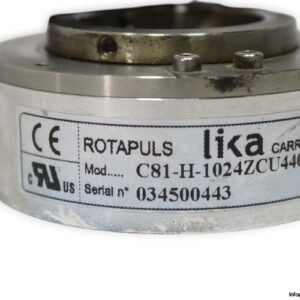

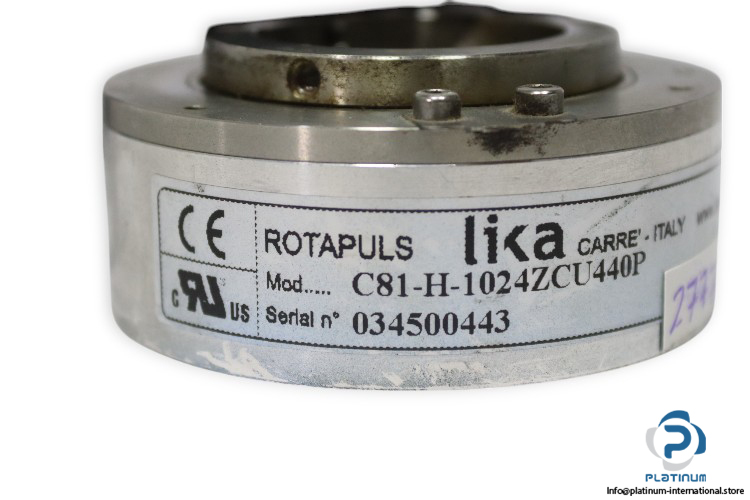

LIKA C81-H-1024ZCU440P INCREMENTAL ENCODER
High-resolution incremental encoder from Lika™s ROTAPULS series, engineered for precise positioning in automation and motion control systems. Built with rugged materials and high-frequency signal capabilities, this encoder ensures reliability even in demanding environments.
- Manufacturer: Lika
- Type: Incremental Encoder
- Model: C81-H-1024ZCU440P
- Serial No.: 034500443
- Series: ROTAPULS
Technical Information
- Resolution: 1024 PPR
- Supply Voltage: 5¯V
- Output Circuit: Universal (PP/LD)
- Counting Frequency: Up to 100¯kHz
- Hollow Shaft: 40 to 44¯mm diameter
- Body Diameter: 80¯mm
- Housing: Aluminum with stainless steel flange & shaft
- Operating Temperature: -25¯°C to +85¯°C
- Protection Degree: IP65
