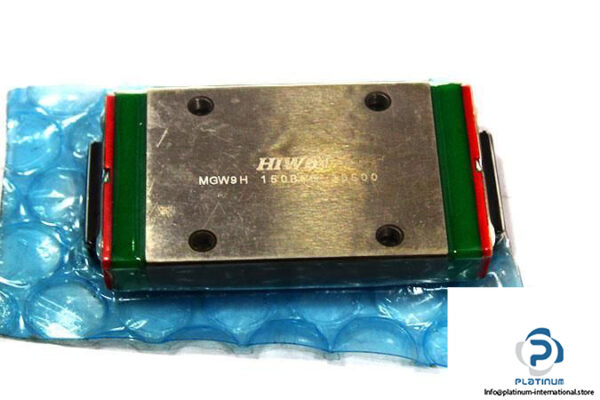

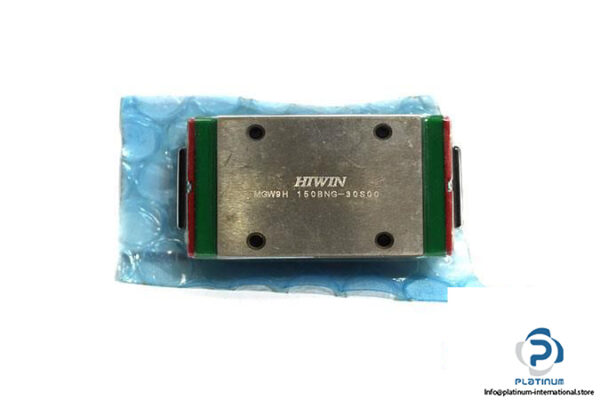

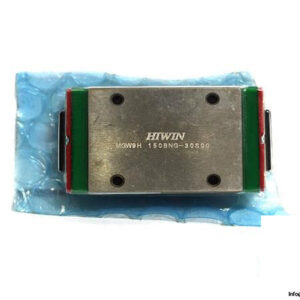

HIWIN MGW9H 150BNG-30S00 LINEAR GUIDEWAY BLOCK
This precision-engineered linear guideway block from Hiwin is designed for applications requiring high load capacity, smooth linear motion, and a compact footprint. With a long block type and robust dynamic/static load ratings, it ensures reliable performance in high-precision automation systems.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: MGW9H 150BNG-30S00
Technical Information
- Size: 9 mm
- Block Type: Long
- Block Height: 9.1 mm
- Block Width: 30 mm
- Block Length: 50.7 mm
- System Height: 12 mm
- Distance Between Holes: 23, 24 mm
- Thread Size: M3 x 8
- Rail Width: 18 mm
- Rail Height: 7 mm
- Basic Dynamic Load Rating: 3.43 kN
- Basic Static Load Rating: 5.89 kN
