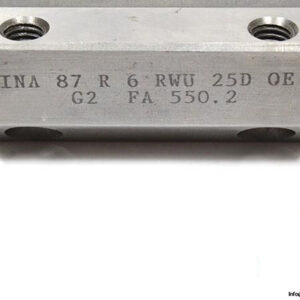

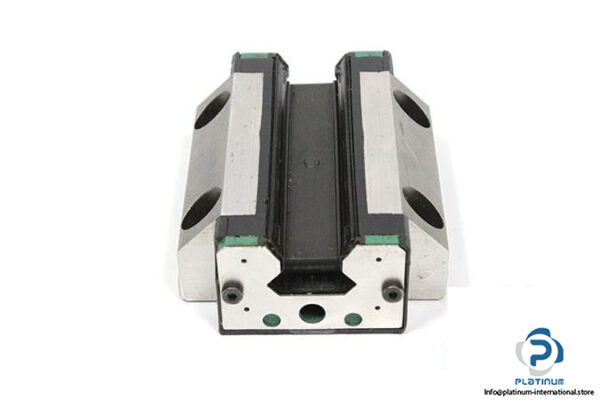

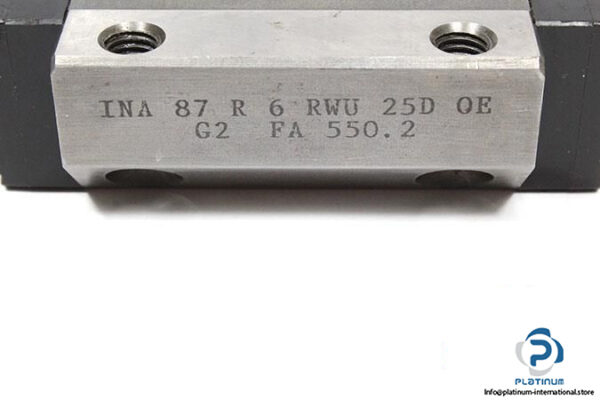

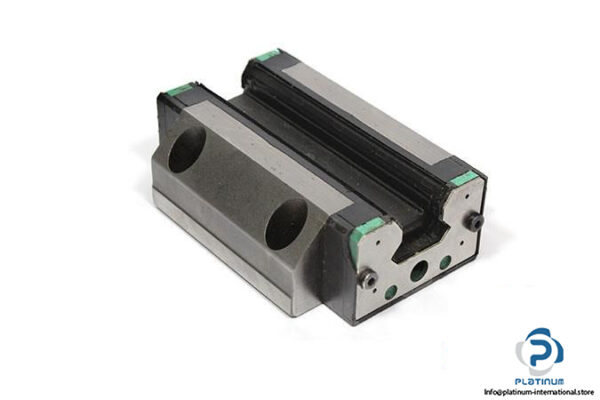

Schaeffler INA RWU25D-0E Recirculating Roller Bearing Carriage
The Schaeffler INA RWU25D-0E is a compact and robust recirculating roller bearing carriage from the RUE..D series. Designed for smooth and precise linear guidance, it offers high load capacities and rigidity for demanding industrial applications.
Manufacturer: Schaeffler INA
Type: Recirculating Roller Bearing Carriage
MNR: RWU25D-0E
Series: RUE..D
Size: 25
Technical information
- Height System: 36 mm
- Width Carriage: 70 mm
- Overall Length Carriage: 91 mm
- Width Rail: 23 mm
- H1: 6.5 mm
- H4: 17.8 mm
- H5: 5.25 mm
- L1: 65.5 mm
- Dynamic Load Rating: 28,000 N
- Static Load Rating: 65,000 N
Static Moment Rating
- X Axis: 350 Nm
- Y Axis: 760 Nm
- Z Axis: 680 Nm
