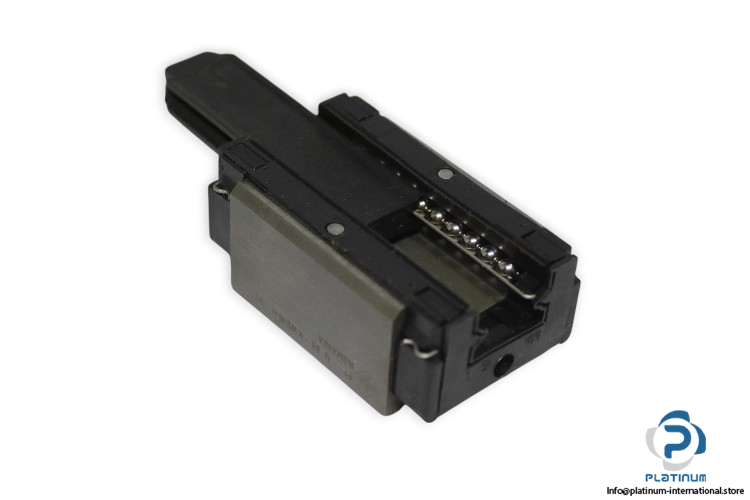

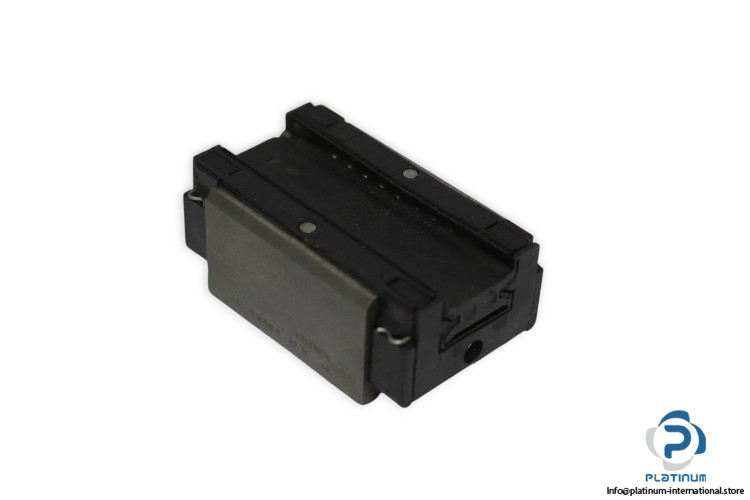

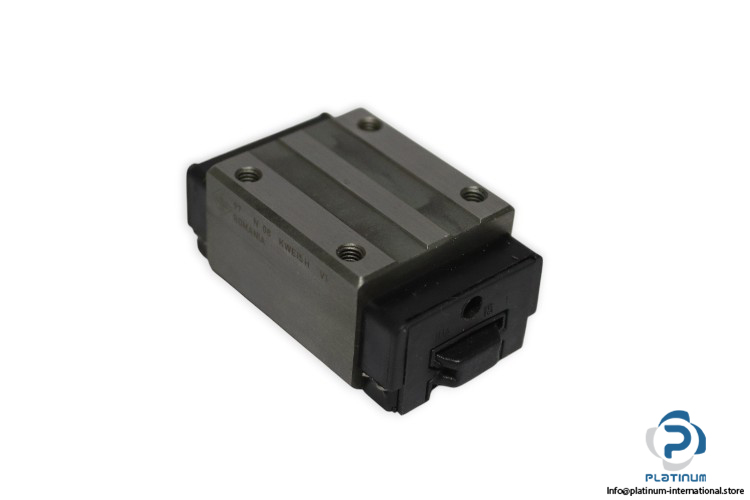

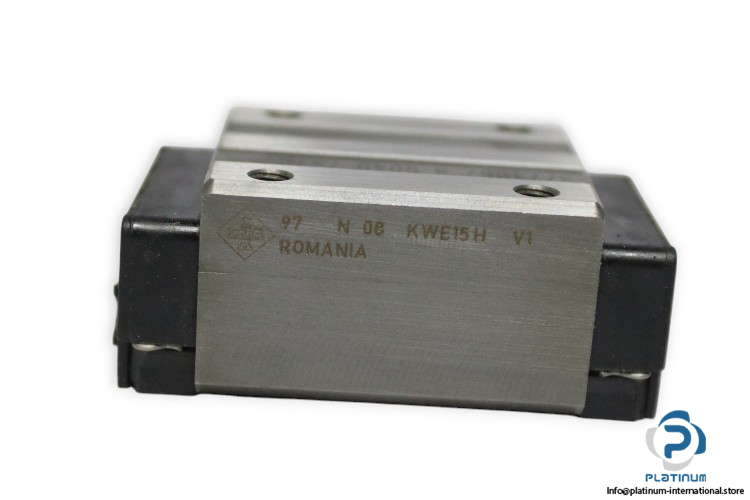

INA KWE15H V1 Recirculating Ball Bearing Carriage

Manufacturer: INA
Type: RECIRCULATING BALL BEARING CARRIAGE
Model: KWE15H-V1

Size: 15 mm

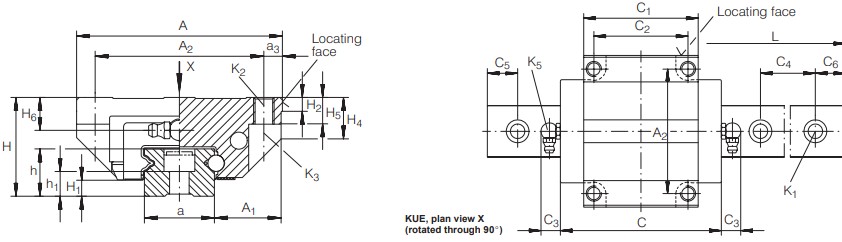

Dimensions:
Height system H: 24 mm
Width carriage A: 47 mm
Overall length carriage C: 54.5 mm
A₂: 38 mm
C₂: 30 mm
Basic Load Ratings:
Dynamic C: 5.6 kN
Static C₀: 9.2 kN
Static Moment Rating About:
X axis M_0x: 73 Nm
Y axis M_0Y: 56 Nm
Z axis M_0Z: 56 Nm
Preload: V1
Carriage Configuration: H, (Narrow, Mounting From The Top)
