Manufacturer: THK

Type: Linear Guideway Block HSR

Model: HSR 25 LR



Size: 25

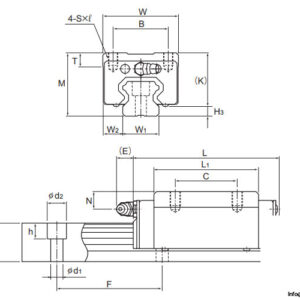

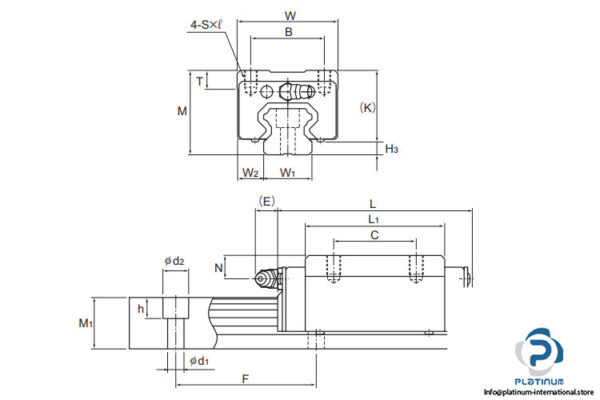

Dimensions

Total Height M: 40 mm

Block Height K: 34.5 mm

Block Width W: 48 mm

Block Length L: 102.2 mm

Length with double seals: 110 mm

L₁: 78.6 mm

B: 35 mm

C: 50 mm

Block Type: Square Type

Mounting Hole: 4 tapped holes

Basic Load Ratings:

Dynamic C: 27.2 kN

Static C₀: 45.9 kN
