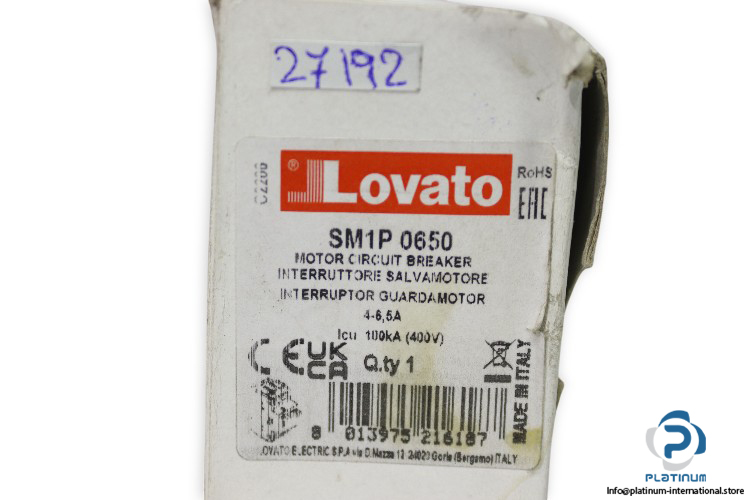

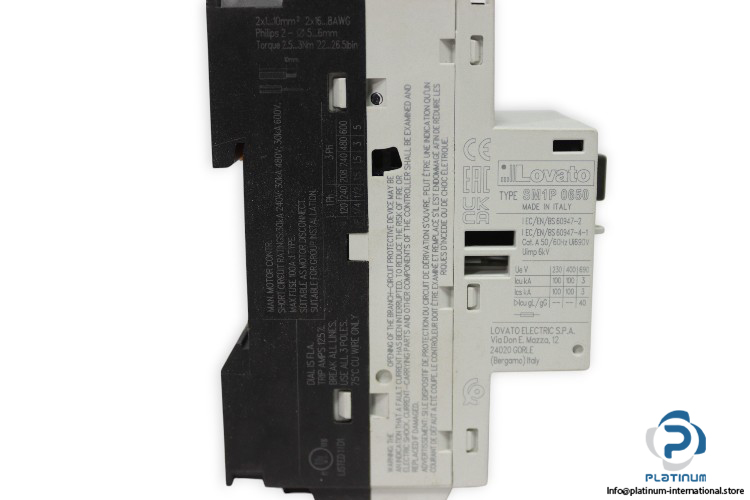

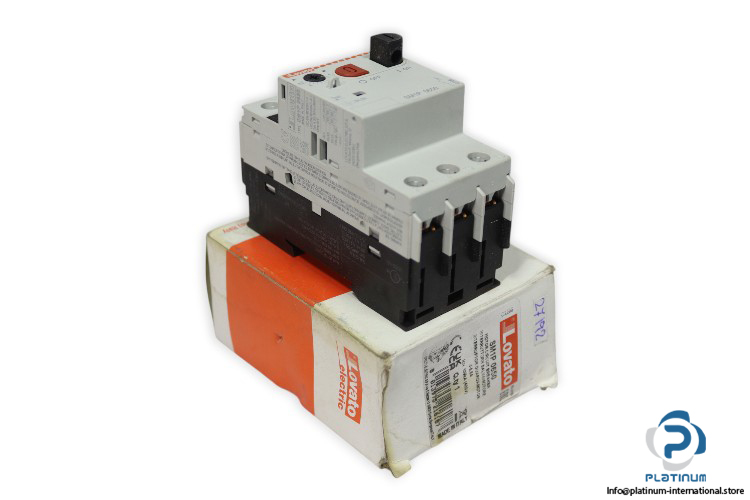

LOVATO SM1P0650 MOTOR PROTECTION CIRCUIT BREAKER

Reliable and high-performance motor protection circuit breaker from Lovato, designed to safeguard electric motors against overloads and short circuits. Ideal for industrial environments requiring compact, durable, and efficient protection devices.

• Manufacturer: Lovato
• Type: Motor Protection Circuit Breaker
• Model: SM1P0650
• Ref. Code: C2206
• Ref. No.: 8 013975 216187

Technical Information

• No. of Poles: 3
• Rated Insulation Voltage (Ui): 690 V
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Rated Frequency: 50/60 Hz

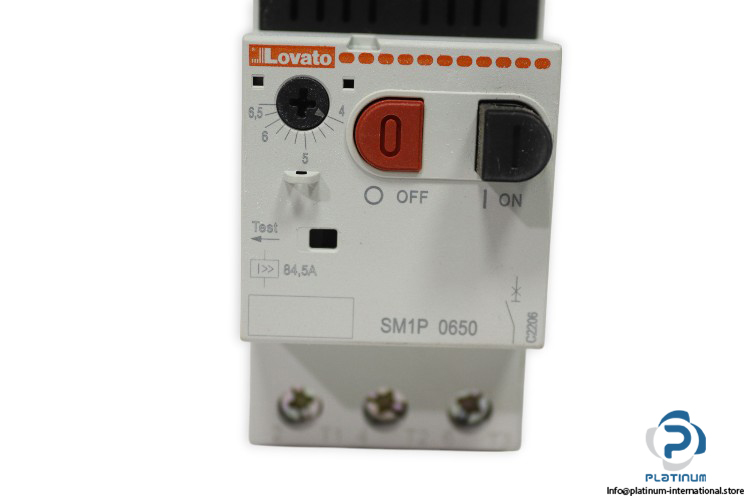

• Thermal Trip Adjustment Range: 4 to 6.5 A
• Rated Current (In): 6.5 A
• Operational Short-Circuit Breaking Capacity (Ics): 100 kA at 400 V AC
• Maximum Short-Circuit Breaking Capacity (Icu): 100 kA at 400 V AC
• Fixing: Screw / DIN rail (35 mm)
• Terminal Protection (IEC/EN 60529): IP20
• Operating Temperature: -20 to 60°C
• Dimensions: 80.8 × 69.6 × 90 mm
