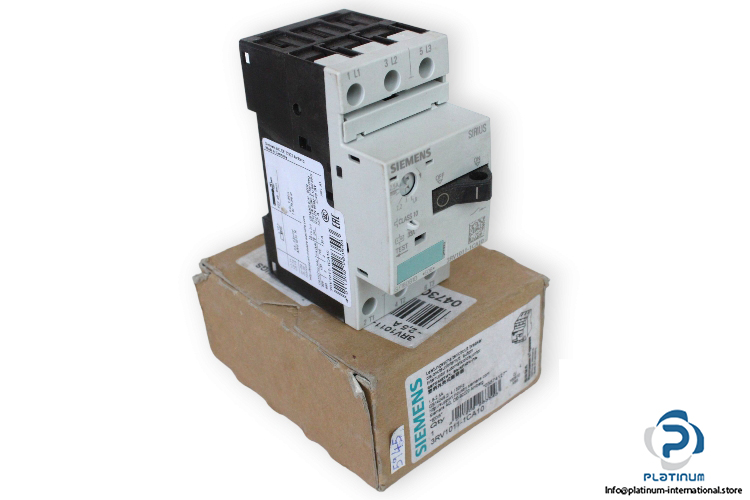

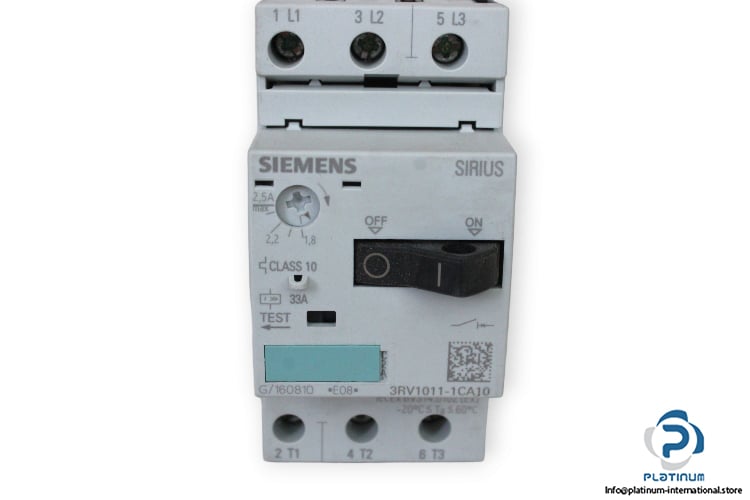

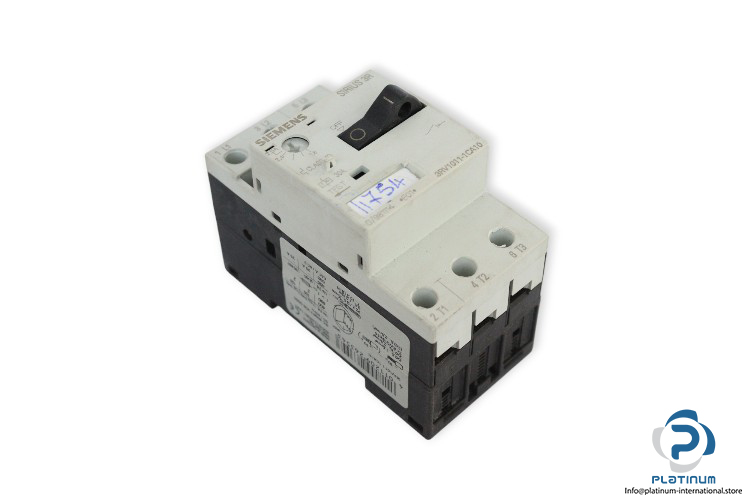

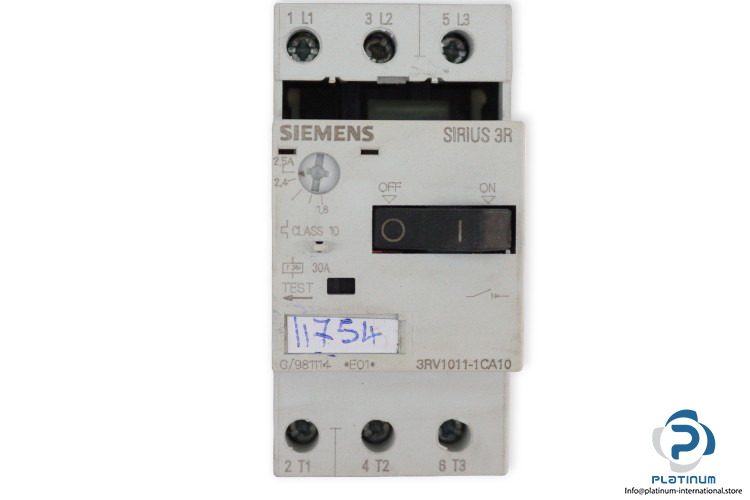

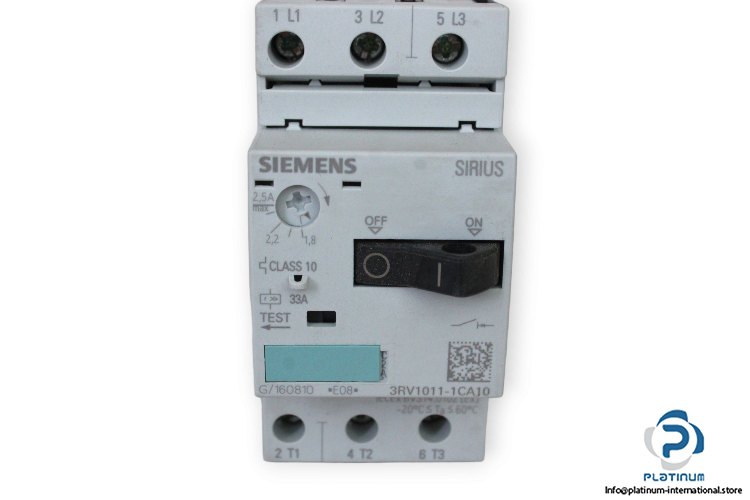

Siemens 3RV1011-1CA10 Circuit Breaker

Manufacture: Siemens
Type: Circuit Breaker
MNR: 3RV10111CA10
Product Brand Name: SIRIUS

Size: S00
Design of The Product: For motor protection
Insulation voltage: 690 V
Surge Voltage Resistance Rated Value: 6 kV
Operating power: 0.75 kW
Adjustable current response range: 1.8 … 2.5 A
Release Current: 30 A
Frequency: 50-60 Hz
No. of poles: 3
Fastening method: screw and Snap-On mounting onto 35 mm DIN rail according to DIN EN 60715
Electrical connection: screw-type terminals
Protection degree: IP20
Standard: IEC 60947, VDE 0660
Operating temperature: -20 … 60°C
Dimensions: 75 x 45 x 90 mm
