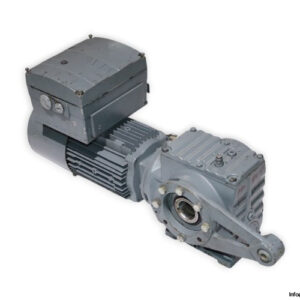

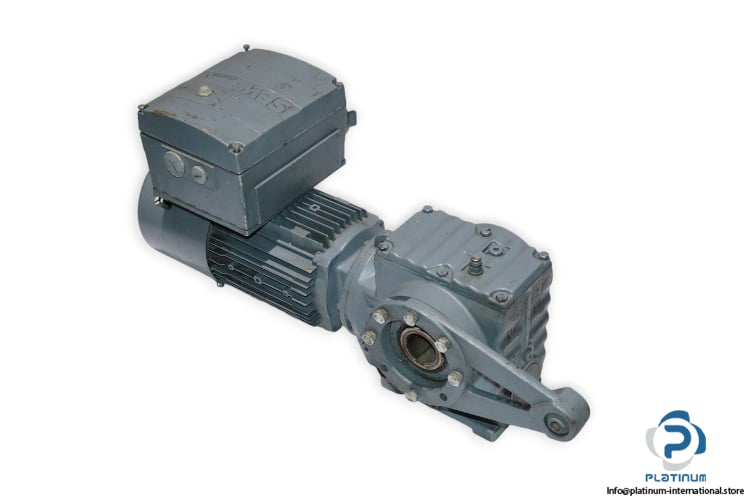

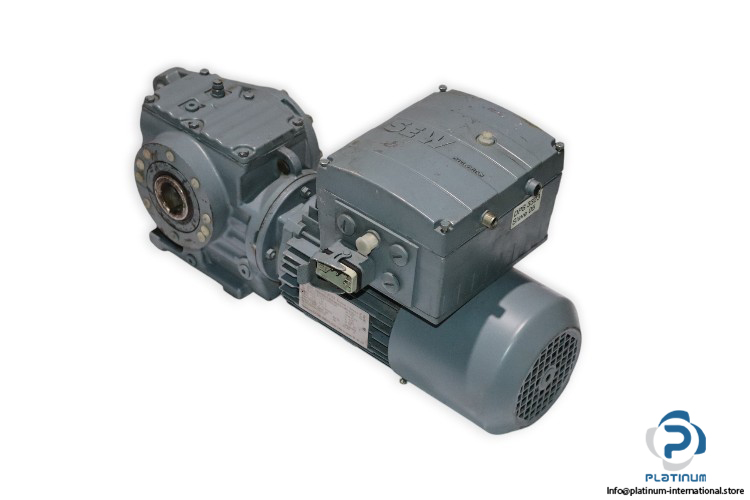

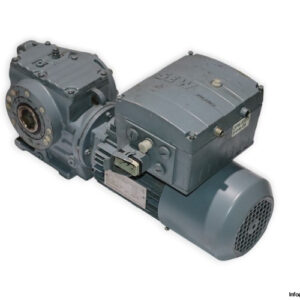

SEW SA57/T DT80N4/BMG/TF/MSW/CK0/RJ2A/AND3/AVS0 Gearmotor

SEW SA57/T GEARMOTOR

The SEW SA57/T Gearmotor is designed for high-efficiency industrial applications. With various speeds, mounting positions, and robust output torque, this gearmotor ensures reliable performance. The motor power, combined with its service factor and lubricant specifications, ensures consistent and powerful operation in demanding environments.

Manufacturer: SEW

Type: GEARMOTOR

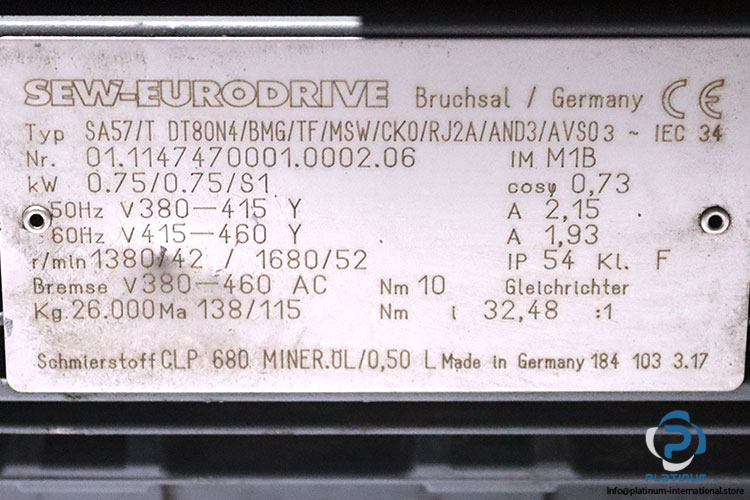

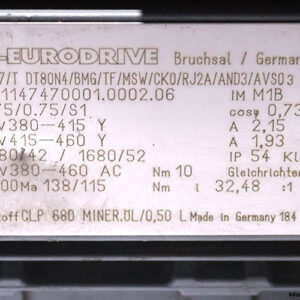

Model: SA57/T DT80N4/BMG/TF/MSW/CK0/RJ2A/AND3/AVS0

Part no: 01.1147470001.0002.06

Technical Specifications

• Gear unit: SA57/T
• Speed [r/min]: 1380 / 42, 1680 / 52
• Total ratio: 32.48
• Mounting position: M1B
• Output torque [Nm]: 138 / 115
• Service factor SEW-FB: 1.80 / 2.10
• Lubricant / -volume [l]: CLP 680 Miner.Oil / 0.50
• Hollow shaft: 35 mm
• Design: Hollow shaft
• Lubricant volume [l]: 0.50
• Motor power [kW]: 0.75 / 0.75
• Cyclic duration factor S1-S10: S1
• Motor frequency [Hz]: 50
• Motor voltage [V] / conn. Type: 400 star
• Multi range-voltage 50Hz [V]: 380-415 star
• Nominal current [A]: 2.15 / 0.00
• Multi range-voltage 60Hz [V]: 415-460 star
• Nominal current [A]: 1.93 / 0.00
• Thermal cl.[°C]/Enclosure[IP]: F / 54
• Brake voltage [V]/-torque [Nm]: 400 AC / 10
• Multi range-voltage brake [V]: 380-460 AC

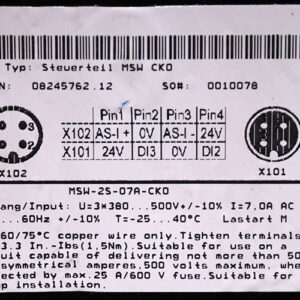

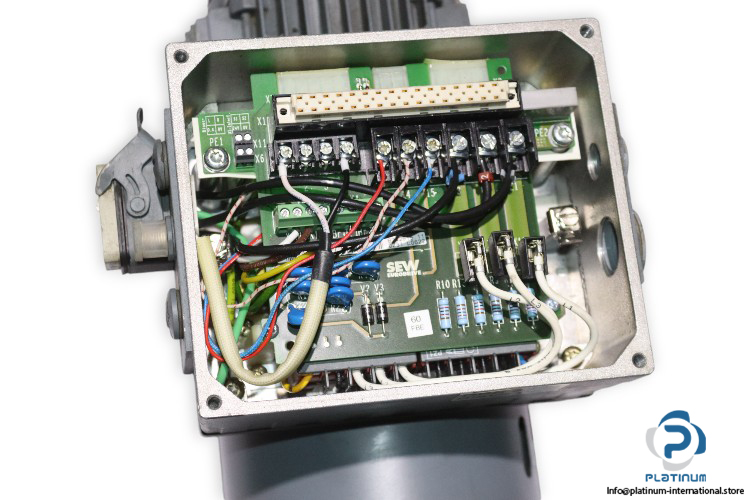

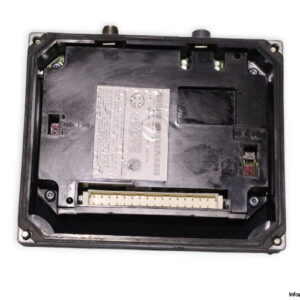

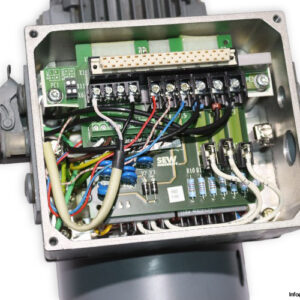

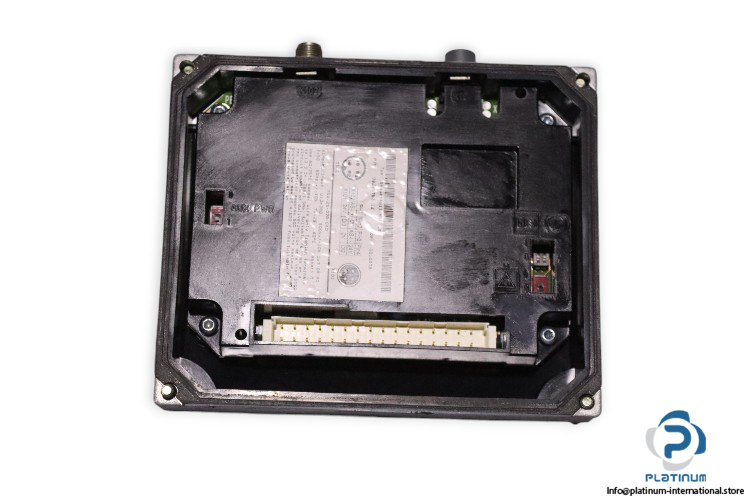

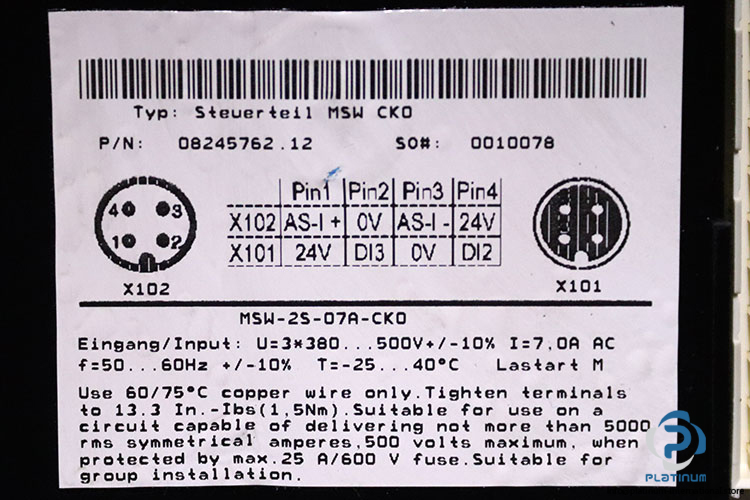

• Attached with: SEW MSW-2S-07A-CK0 MOVI-SWITCH
• Input:
  • Supply Voltage: 3-Phase 380 to 500 V AC
  • Rated Current: 7 A
  • Frequency: 50 / 60 Hz
