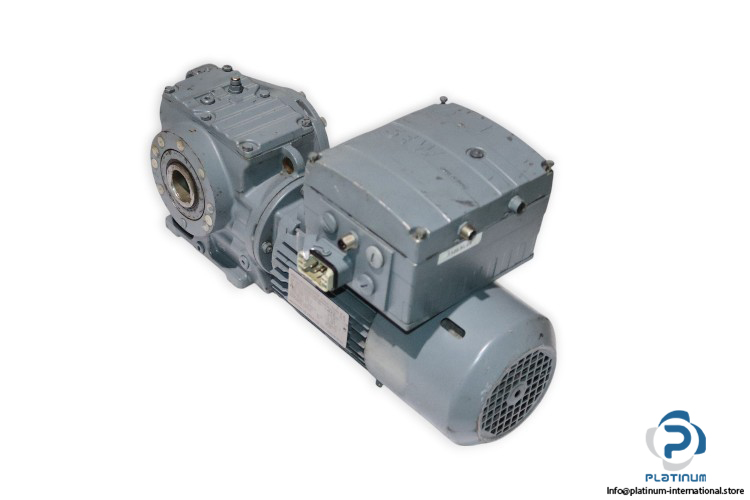

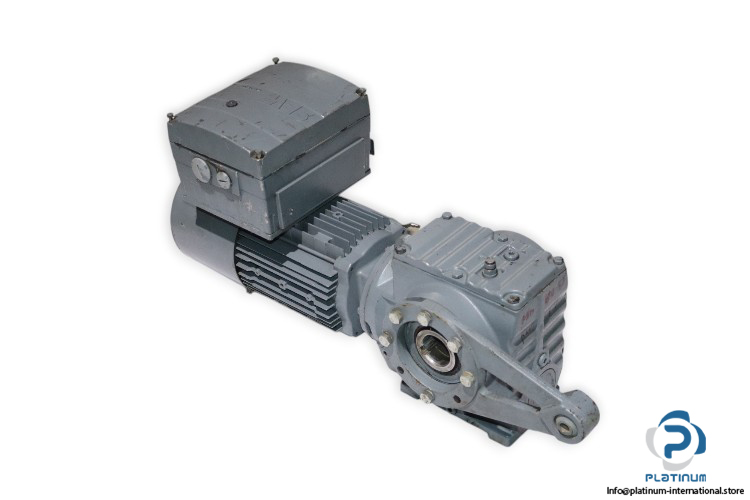

SEW SA57/T DT80N4/BMG/TF/MSW/CK0/RJ2A/AND3/AVS0 Gearmotor
Used
In stock1 unitReady to ship
SEW SA57/T DT80N4 Gearmotor €œ 0.75 kW, 138/115 Nm torque, 32.48 ratio, 50/60Hz, IP54-rated, and equipped with SEW MSW-2S-07A-CK0 MOVI-SWITCH for high-efficiency operation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SEW SA57/T DT80N4/BMG/TF/MSW/CK0/RJ2A/AND3/AVS0 Gearmotor
The SEW SA57/T DT80N4/BMG/TF/MSW/CK0/RJ2A/AND3/AVS0 Gearmotor is a highly efficient and durable solution for industrial power transmission. Designed for precision and reliability, it features a robust gear unit, optimized torque output, and a built-in MOVI-SWITCH system for seamless operation.

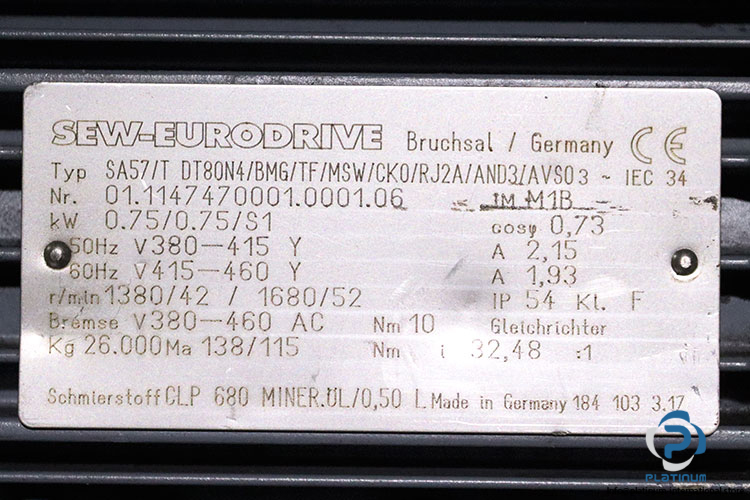

Technical Specifications:
- Manufacturer: SEW
- Type: Gearmotor
- Model: SA57/T DT80N4/BMG/TF/MSW/CK0/RJ2A/AND3/AVS0
- Part No.: 01.1147470001.0001.06
Gear Unit Specifications:
- Gear Unit: SA57/T
- Speeds: 1380 / 42 rpm | 1680 / 52 rpm
- Total Ratio: 32.48
- Mounting Position: M1B
- Output Torque: 138 / 115 Nm
- Service Factor SEW-FB: 1.80 / 2.10
- Hollow Shaft Diameter: 35 mm
- Lubricant Type: CLP 680 Mineral Oil
- Lubricant Volume: 0.50 L
Motor Specifications:
- Motor Power: 0.75 kW / 0.75 kW
- Cyclic Duration Factor: S1
- Motor Frequency: 50 Hz
- Motor Voltage / Connection Type: 400V Star
- Multi-Range Voltage 50Hz: 380-415V Star
- Nominal Current (50Hz): 2.15 A / 0.00 A
- Multi-Range Voltage 60Hz: 415-460V Star
- Nominal Current (60Hz): 1.93 A / 0.00 A
- Thermal Class / Enclosure Rating: F / IP54
Brake Specifications:
- Brake Voltage: 400V AC
- Brake Torque: 10 Nm
- Multi-Range Voltage Brake: 380-460V AC

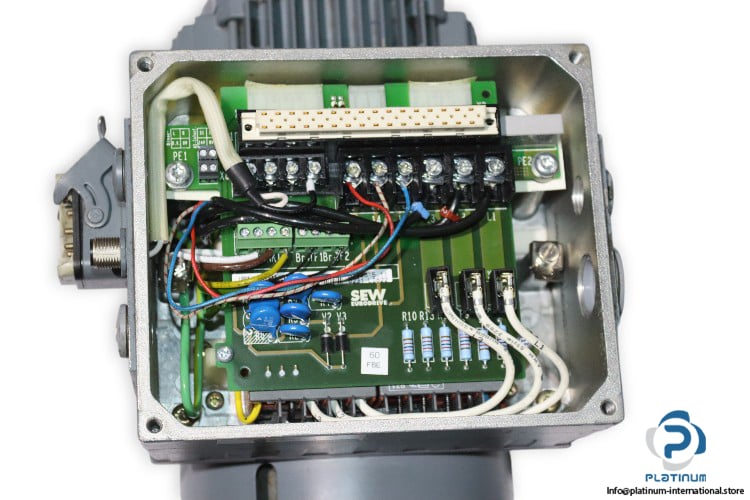

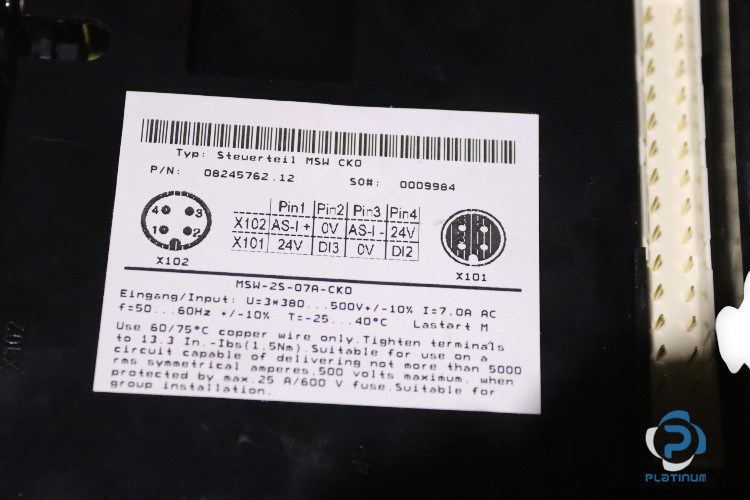

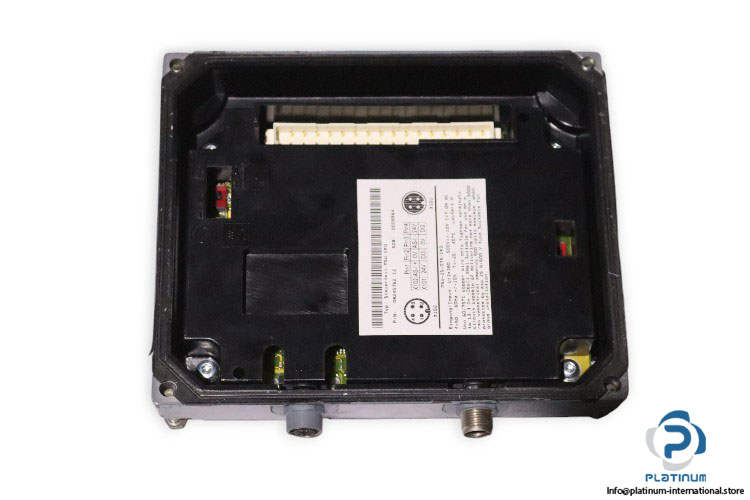

Attached Component: SEW MSW-2S-07A-CK0 MOVI-SWITCH
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 7 A
- Frequency: 50 / 60 Hz
The SEW SA57/T Gearmotor is built for industrial applications requiring reliable torque transmission and seamless speed control. Its integrated MOVI-SWITCH ensures high efficiency and smooth operation.
