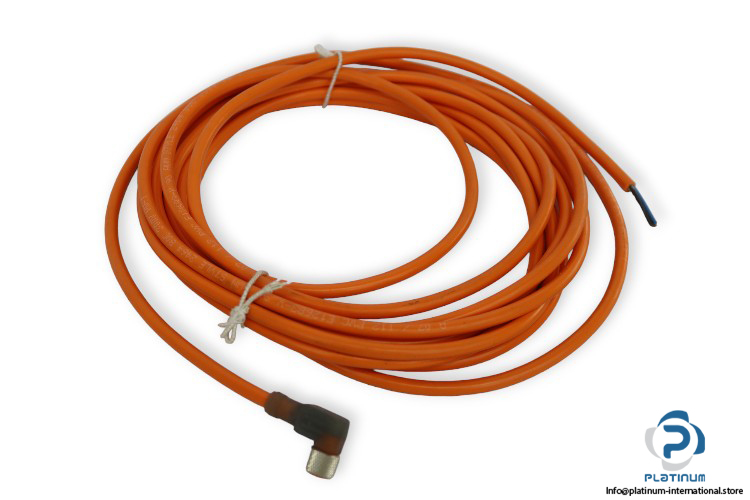

Manufacturer: LUMBERG
Type: Actuator and Sensor Cable

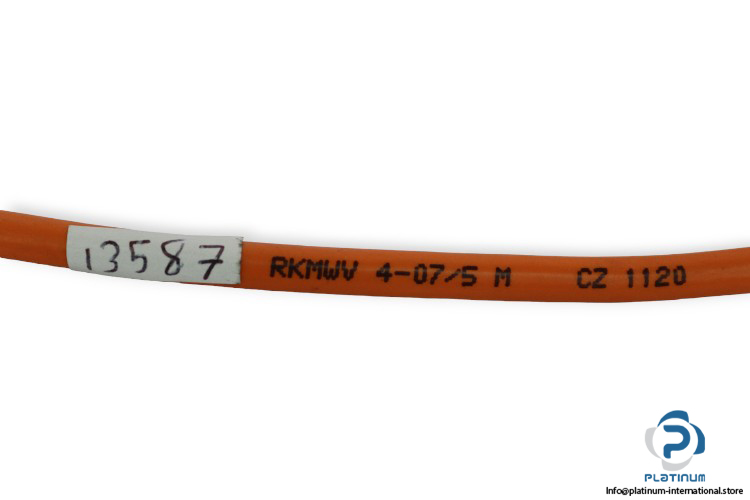

Model: RKMWV4075M
Part No.: CZ1120

Rated Voltage: 30 … 36 V
Rated Current: 4 A

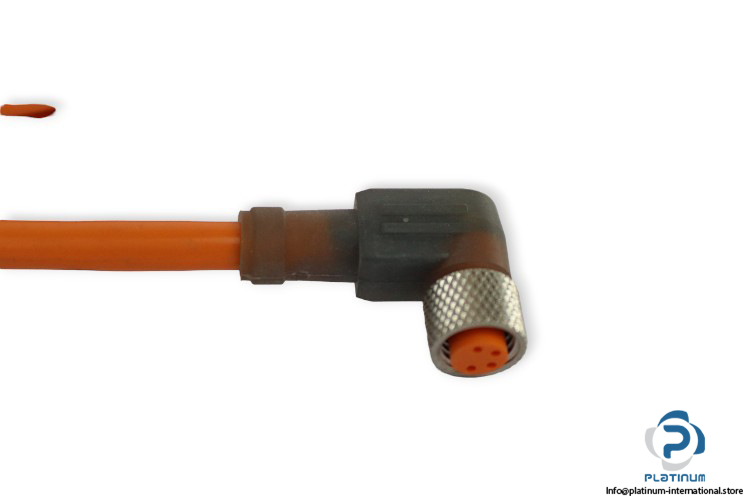

Electrical Connection: Female 90° Connector M8x1, 4-Pin,
Material:
– Insert: PA / TPU
– Contacts: CuZn, Pre-Nickeled
– Housing / Molded body: TPU
– Coupling Nut/Screw: CuZn, Nickel-Plated
Cable Jacket: PVC
Cable Diameter, Length: 4.5 mm, 5 m
Connector Diameter, Length: 9.8, 18.8 mm
Protection Class: IP67
Ambient Temperature: -40 … 90 °C
