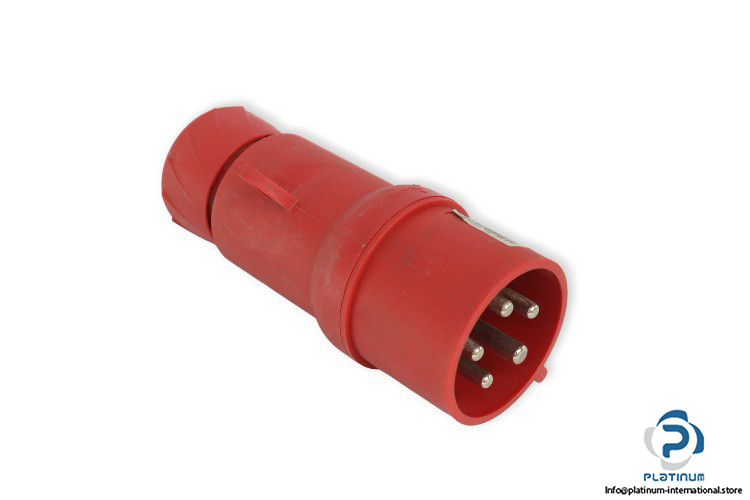

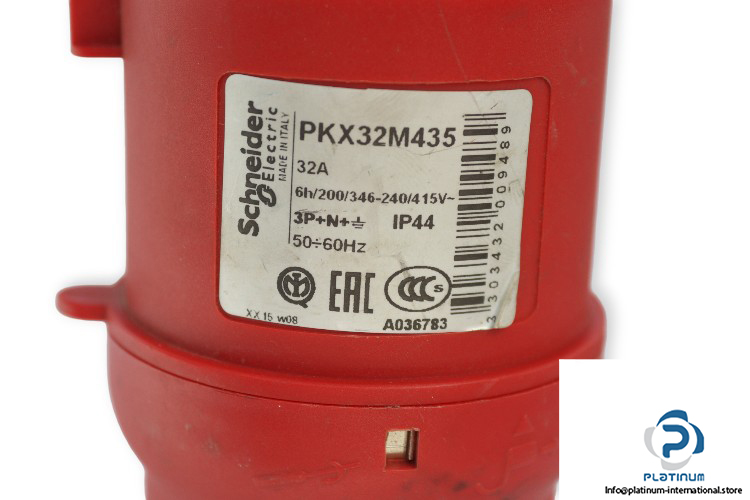

Schneider Electric PKX32M435 Wander Plug

Manufacture: Schneider Electric
Type: Wander plug
Model: PKX32M435

Range: Mureva
Device Short Name: Mureva plug
Plug, Socket Category: Low voltage
Poles Description: 3P + N + E
Network Type: AC
No. of pins: 5
Plug, Socket, Control Station Shape: Straight
Rated Current Ie: 32 A
Rated Operational Voltage Ue: 240 … 415 V AC
Network Frequency: 50/60 Hz
Plug, Socket Material: Housing: self-extinguishing engineering polymer
Contacts Material Sleeves: brass
Connections – Terminals: Fast connection
Cable Cross Section: 2.5 … 6 mm²
Cable Outer Diameter: 11.5 … 21 mm
Cable Entry: Cable gland, Fair lead
Standards: IEC 60309-1, IEC 60309-2
Ambient Air Temperature For Operation: -25 … 40°C
Degree of Protection: IP44
Dimensions: 160 x 86 x 86 mm
