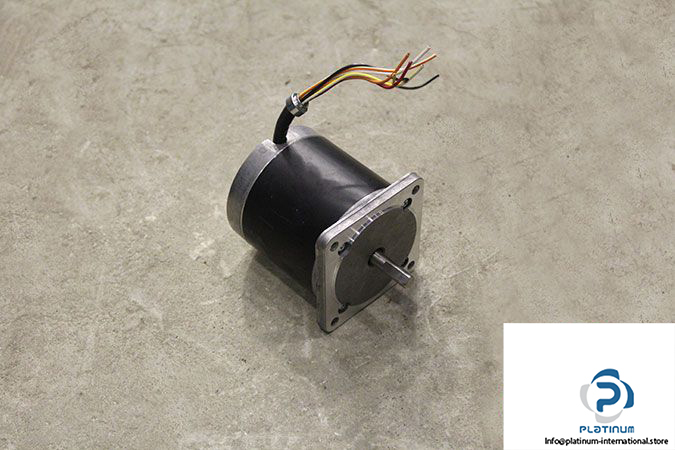

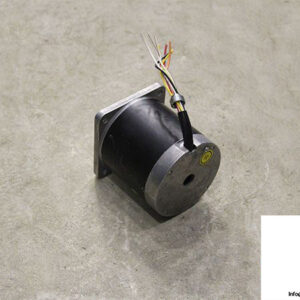

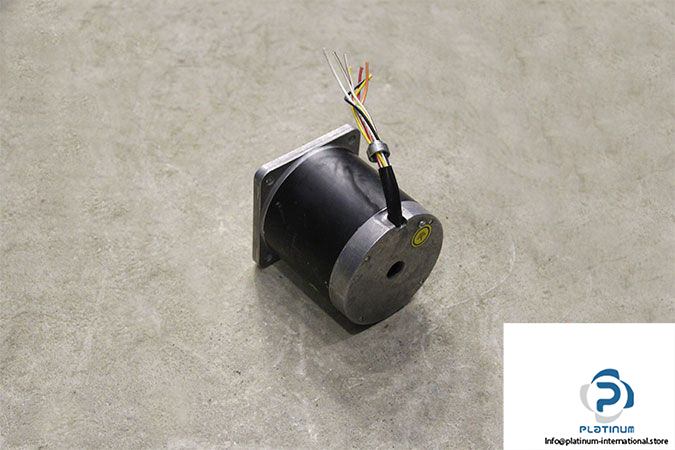

MAE HN200 3438 0430 AX08 Stepper Motor
The MAE HN200 3438 0430 AX08 is a high-performance stepper motor designed for precise motion control applications. With strong holding torque, reliable thermal performance, and robust construction, it is suitable for automation, robotics, and industrial machinery.
Manufacturer: MAE
Type: Stepper Motors
Model: HN200 3438 0430 AX08
Technical information
- Max. Voltage: 90 V
- Rated Phase Current: 4.3 A
- Phase Resistance: 0.75 Ω
- Holding Torque (Unipolar): 380 Ncm
- Holding Torque (Bipolar): 480 Ncm
- Detent Torque: 1200 g-cm²
- Thermal Class: B
