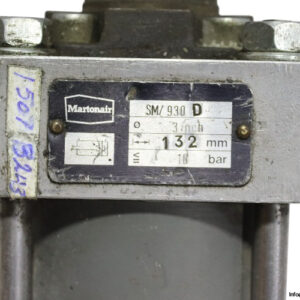

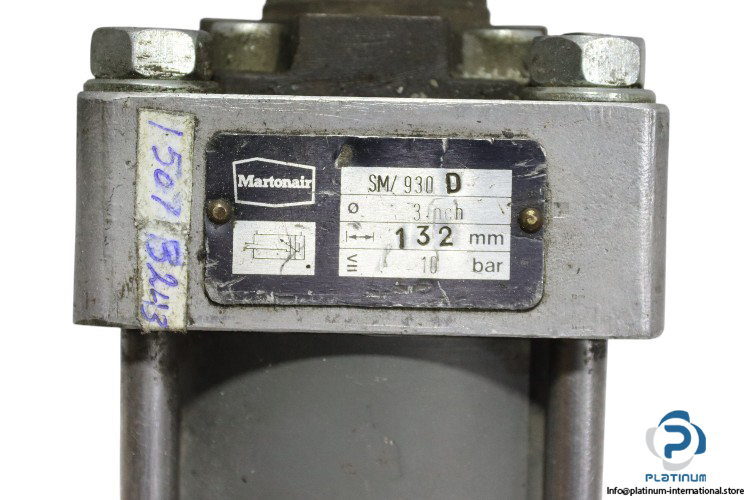

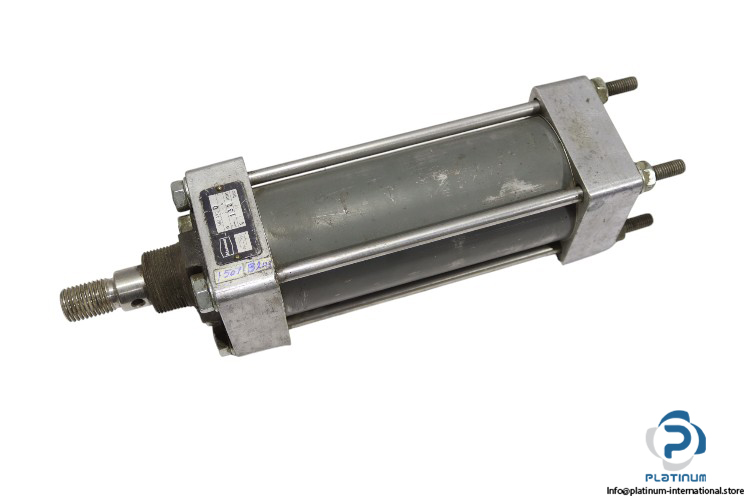

Martonair SM/930 D 132 ISO Cylinder
The Martonair SM/930 D 132 ISO Cylinder is a robust pneumatic actuator engineered for efficient operation using compressed air. With a 3-inch bore and 132 mm stroke, it features a square design, one-sided rod direction, and high-pressure capacity up to 10 bar.
Manufacturer: MARTONAIR
Type: ISO Cylinder
Model: SM/930 D 132
Technical Information:
- Media: Compressed Air
- Bore Diameter: 3 Inch
- Stroke: 132 mm
- Bore x Stroke: 3 Inch x 132 mm
- Rod Diameter: 25 mm
- Frame Dimensions: 90 x 295 mm
- Pressure Max.: 10 bar
- Pneumatic Connection: G 3/8
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
