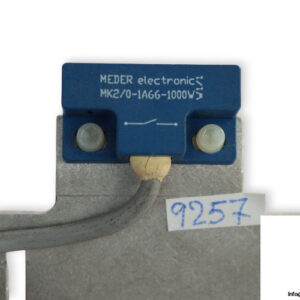

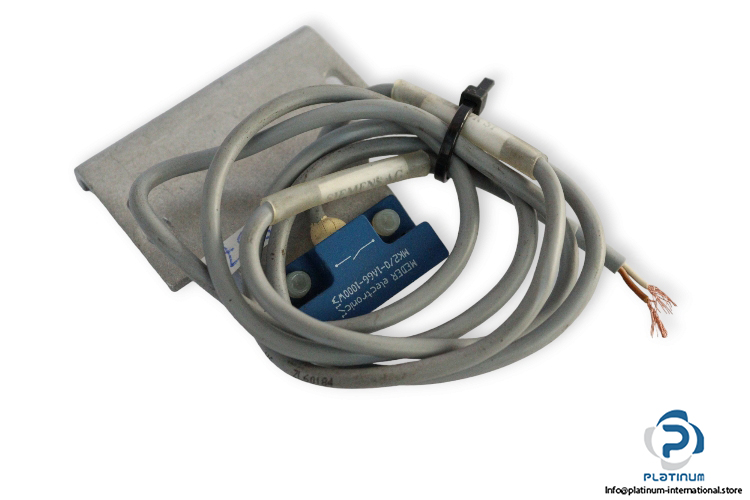

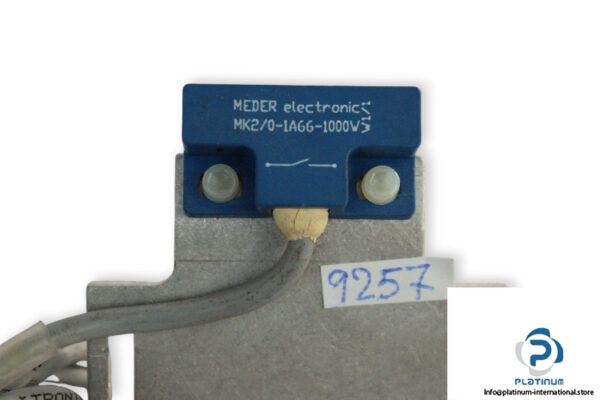

Manufacturer: Meder
Type: Reed Sensor
Model: MK201A661000W

Contact Configuration: 1 Normally Open (NO)
Switching Power: 10 W
Switching Voltage: 200 V
Switching Current: 0.5 A
Switching Distance: (Contact Open) 5.5 … 13.5 mm/ (Contact Close) 4.5 … 10 mm
Operation: From the Front
Cable Length: 1000 mm
Cable Connection: 2 Wires
Dimension: 32.4 X 16.7 X 10 mm
Ambient Temperature: –20 … 85 ° C
