Manufacturer: MERKLE
Type: Hydraulic Block Cylinder

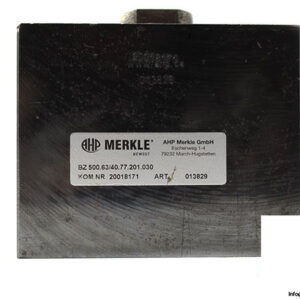

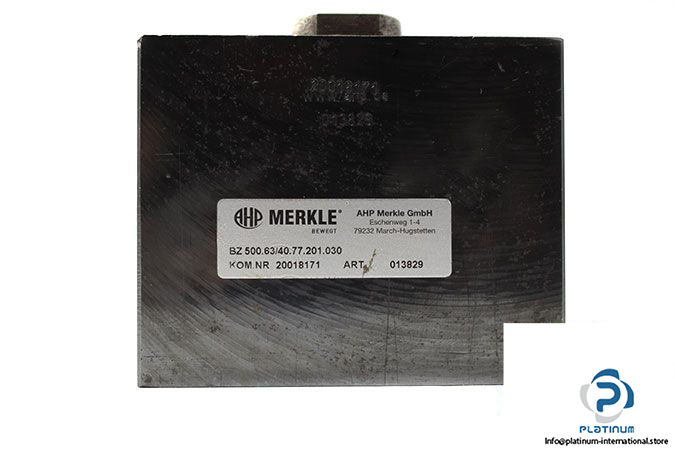

Model: BZ 500.63/40.77.201.030
Piston Diameter: 63 mm
Rod Diameter: 32 mm
Stroke: 30 mm
Cylinder Shape: Rectangle
Mode of operation: Double-Acting
Maximum operating pressure: max. 500 bar
Piston rod thread: Female
Temperature range: 0 …. 180 °C
Connection: G ½”
Weight: 7.6 kg
