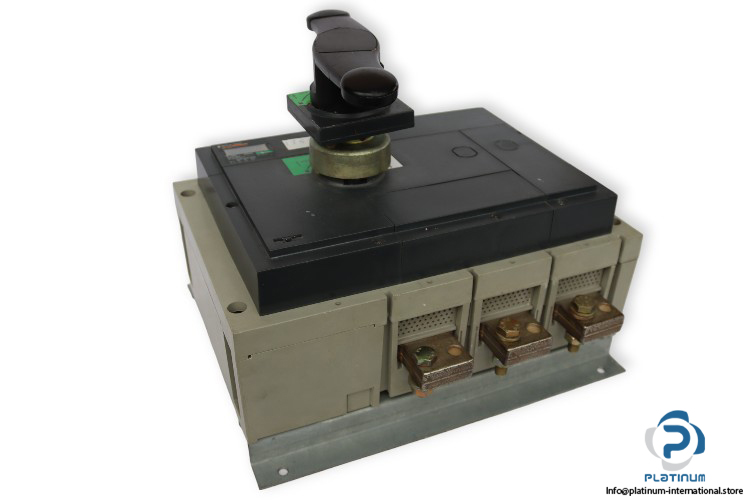

Merlin Gerin INS1250 Circuit Breaker / Switch Disconnector
The Merlin Gerin INS1250 is a high-performance circuit breaker and switch disconnector designed for industrial power distribution systems. As part of the Interpact range, this device ensures reliable electrical isolation and protection in demanding environments, operating efficiently under high electrical loads.
- Manufacturer: Merlin Gerin
- Type: Circuit Breaker / Switch Disconnector
- Model: INS1250
- Range: Interpact

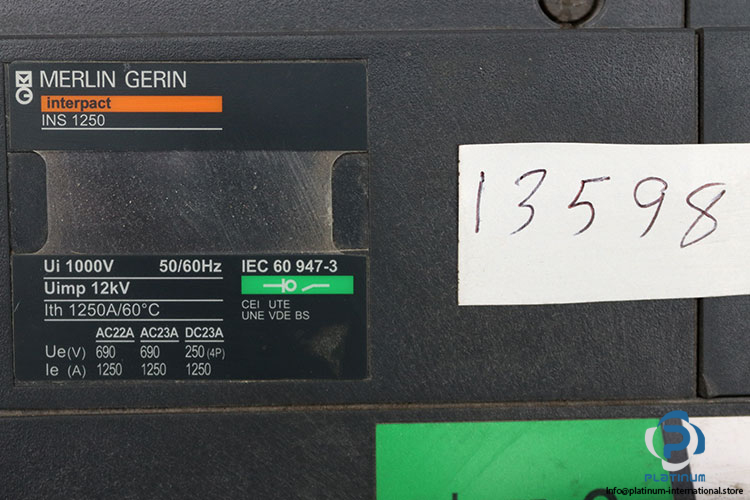

Technical Information
- No. of Poles: 3
- Rated Current (In): 1250 A
- Rated Operational Voltage (Ue): 690 V AC
- Rated Operational Current (Ie):
- AC-22A: 1250 A, 690 V AC
- AC-23A: 1250 A, 690 V AC
- DC-23A: 1250 A, 250 V DC (4P)
- Rated Insulation Voltage (Ui): 1000 V AC
- Rated Impulse Withstand Voltage (Uimp): 12 kV
- Service Frequency: 50/60 Hz
- Mounting Mode: Fixed
- Standard: IEC 60 947-3
- Dimensions (W x D x H): 340 x 147 x 300 mm
Designed for safety and reliability, the Merlin Gerin INS1250 is ideal for industrial applications where high current ratings and robust electrical protection are required.
