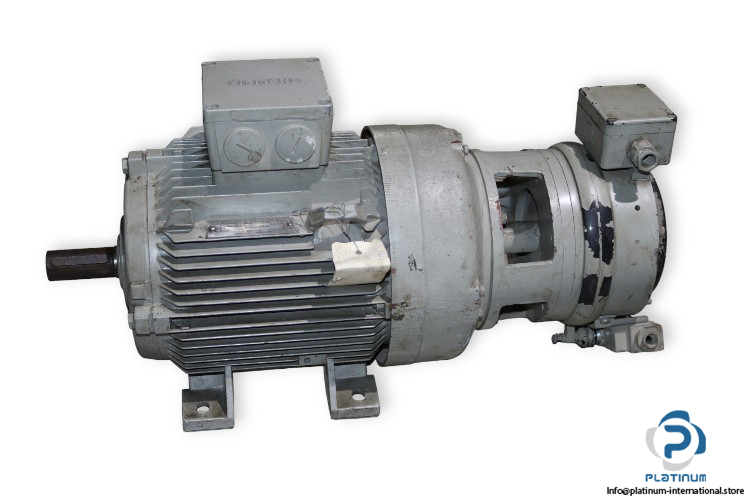

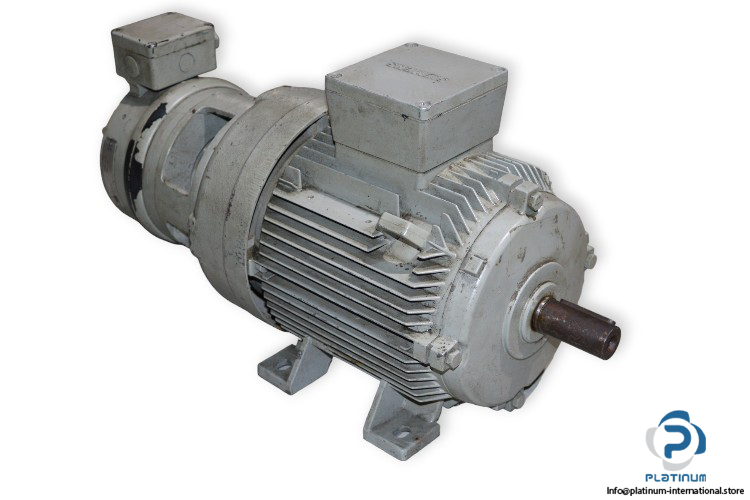

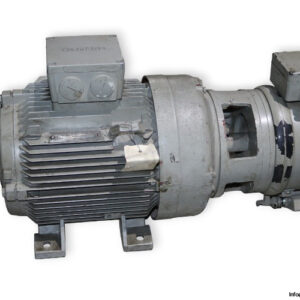

Siemens 1LC5113-4WZ20-Z Brake Motor
The Siemens 1LC5113-4WZ20-Z Brake Motor is a high-performance industrial motor designed for continuous operation with reliable braking functionality. Engineered for demanding applications, this motor provides efficient power transmission, enhanced durability, and superior braking performance with an integrated Binder 71 205-15 Z01 Electric Brake. Its robust construction and IP44 protection ensure long-lasting performance in various industrial environments.
- Manufacturer: Siemens
- Type: Brake Motor
- Model: 1LC5113-4WZ20-Z

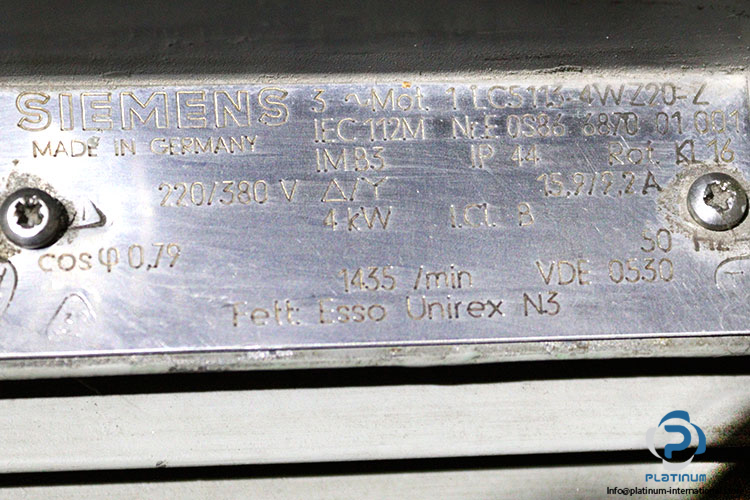

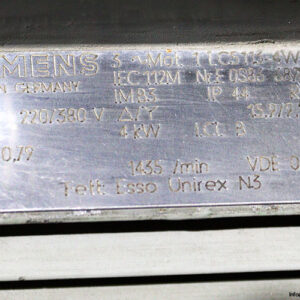

Technical Specifications
- Rated Power: 4.0 kW
- Rated Voltage: 220/380 V
- Rated Current: 15.9/2.2 A
- Rated Speed: 1435 min»¹
- Frequency: 50 Hz
- Protection Class: IP44
- Thermal Class: B
- Mounting Position: B3
- Duty: S1
- Power Factor (cos): 0.79

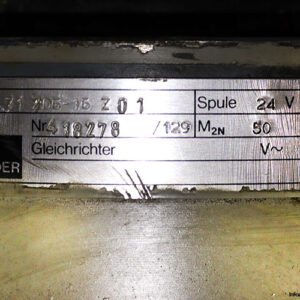

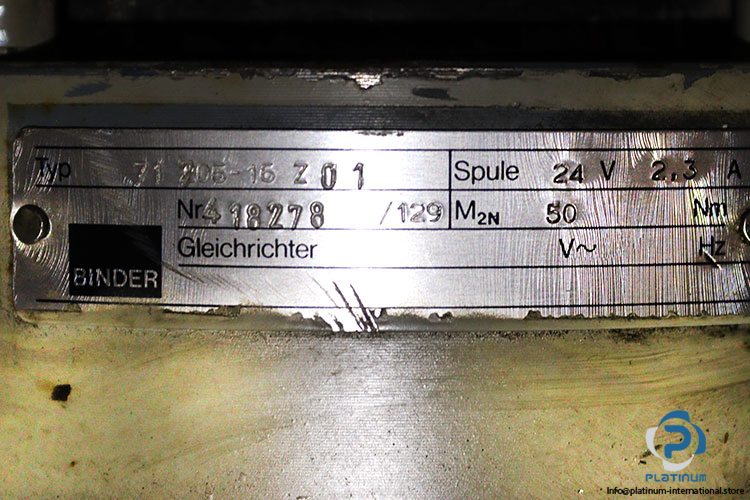

Electric Brake Specifications
- Manufacturer: Binder
- Type: Electric Brake
- Model: 71 205-15 Z01
- Voltage: 24 DC
- Torque: 50 Nm
- Current: 2.3 A
