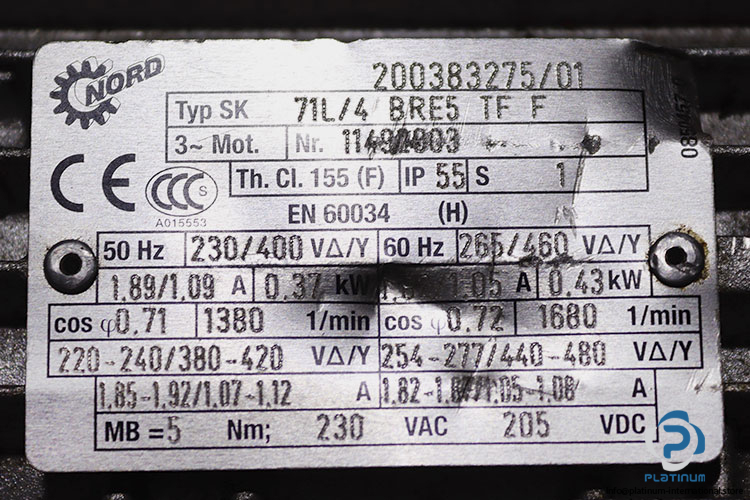

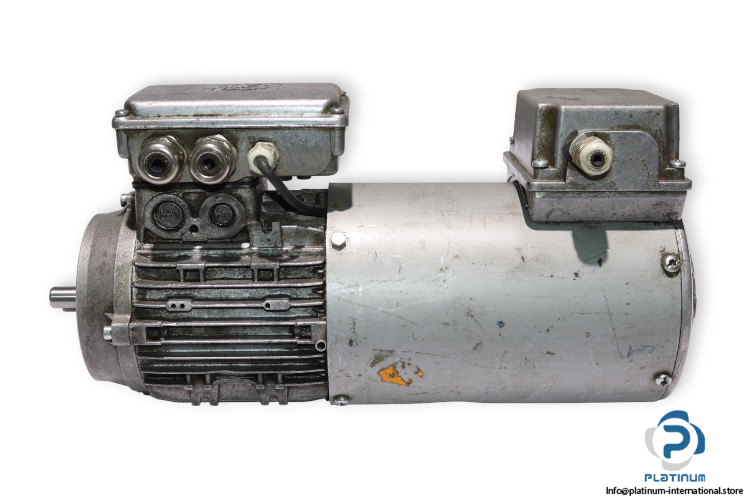

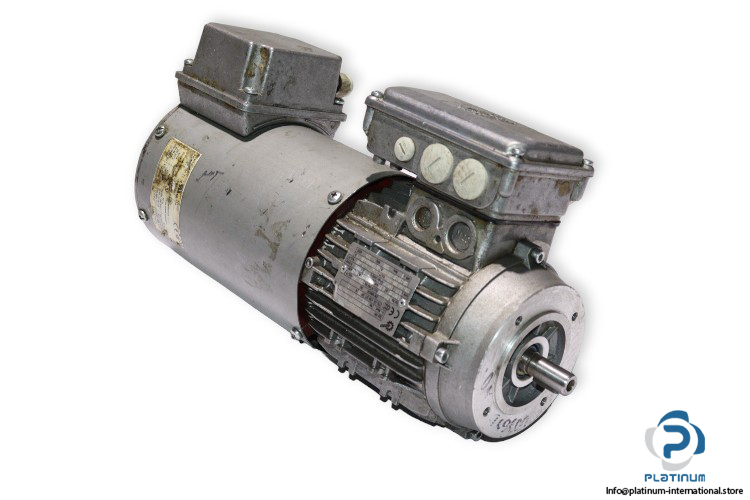

Nord SK 71L/4 BRE5 TF F Brake Motor

Manufacturer: Nord
Type: Brake Motors
Model: SK71L/4BRE5TFF

Rated Current [A]: 1.89-1.09/1.87-1.05
Rated Voltage [V]: 230-400/265-460
Rated Power [Kw]: 0.37/0.43
Rated Speed [min^-1]: 1380/1680
Frequency [Hz]: 50/60
Brake Torque [Nm]: 5
Brake Voltage [V]: 230 AC / 205 DC
Duty: S1
Power Factor [cos]: 0.71/0.72
Protection Class [IP]: 55
Thermal Class: F

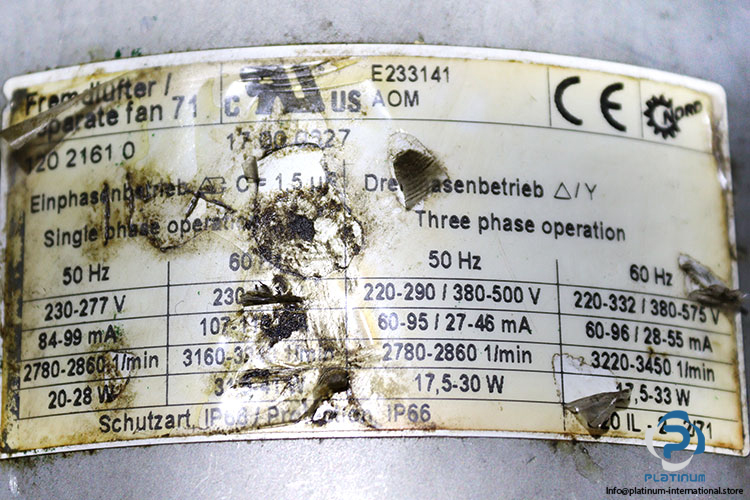

Attachment: Nord 120 2161 0 Fan
Manufacturer: Nord
Type: 12021610
Model: Fans
Rated Current [mA]: 84-99/60-95/27-46/60-96/28-55
Rated Voltage [V]: 230-277/220-290/380-500/220-332/380/575
Rated Power [W]: 20-28/17.5-30/17.5-33
Rated Speed [min^-1]: 2780-2860/2780-2860/3220-3450
Frequency [Hz]: 50/60
Protection Class [IP]: 66
