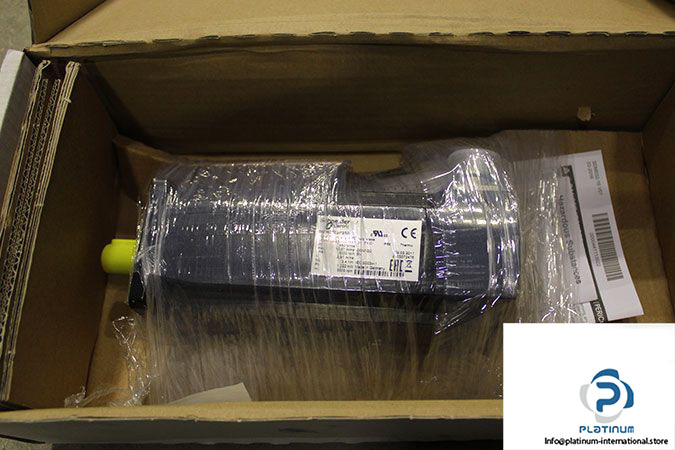

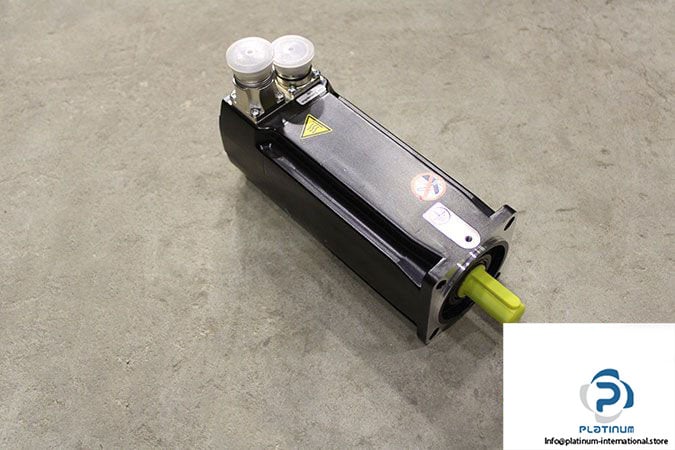

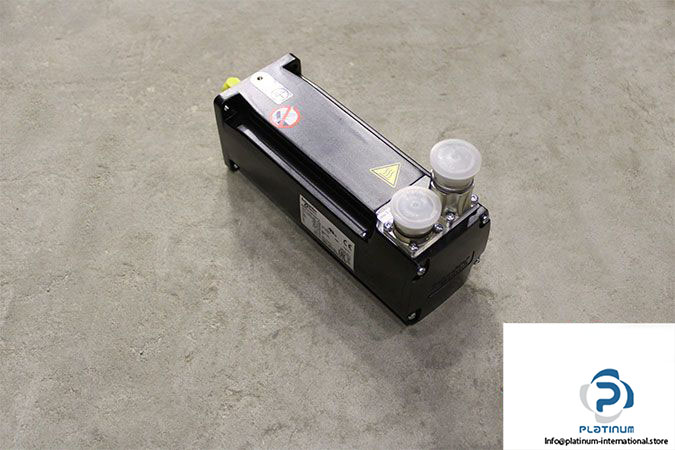

Schneider BMH0703P32A1A AC Servo Motor
New
In stock1 unitReady to ship
1 211,11$
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Schneider Electric, Elau
Type: AC Servo Motors
Model: BMH0703P32A1A
ID No.: 0050000001439
Stall Torque [Nm]: 3.4
Stall Current [A]: 3.91
Max Current [A]: 12.57
Rated Voltage [V]: 480
Rated Power [kW]: 1.322
Rated Speed [rpm]: 5000
Max Speed [rpm]: 8000
Number of Poles: 10
Flange Size [mm]: 70
Shaft Diameter [mm]: 14
Shaft Length [mm]: 30
Key Width [mm]: 20
Protection Class [IP]: 65
Thermal Class: F
Weight [kg]: 3.01
