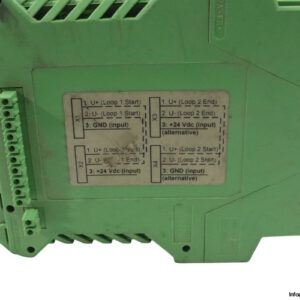

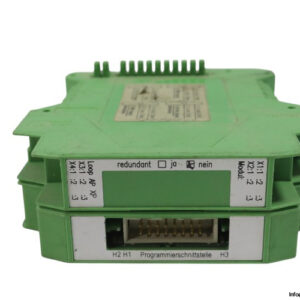

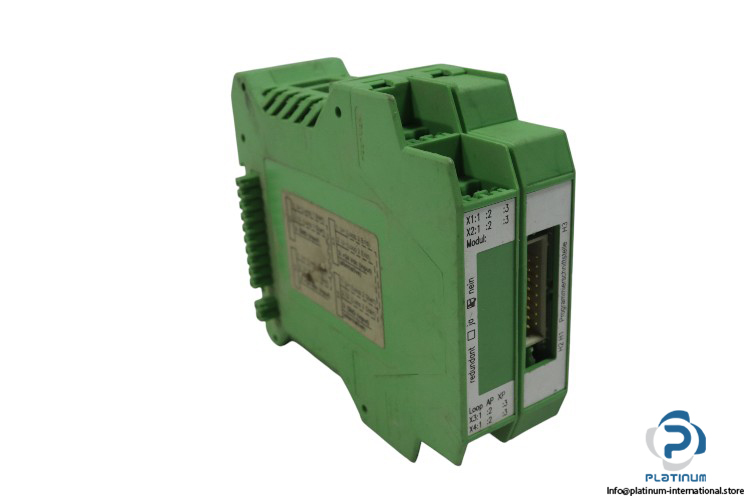

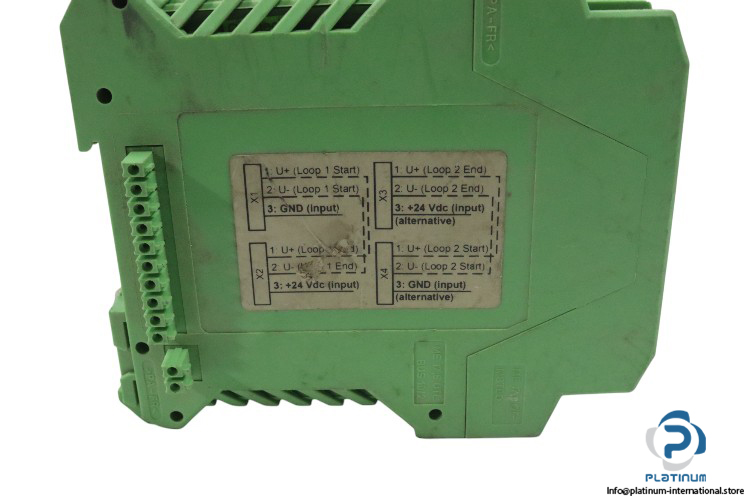

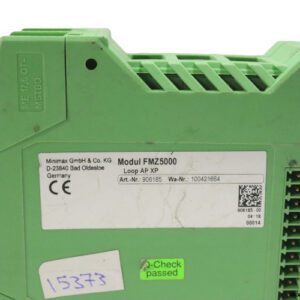

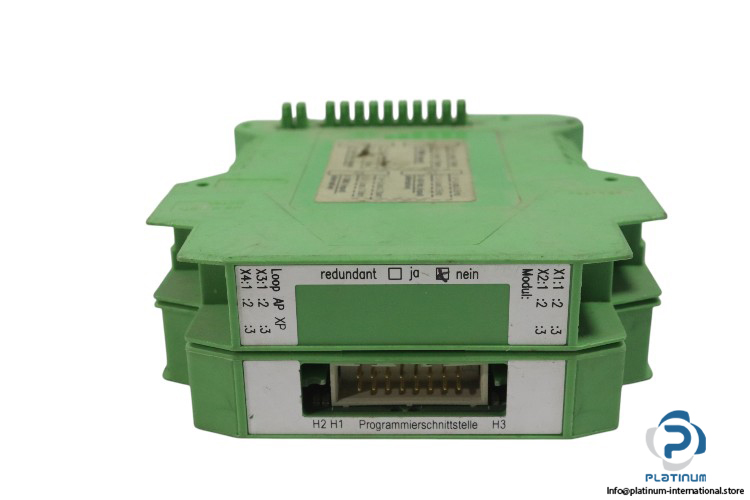

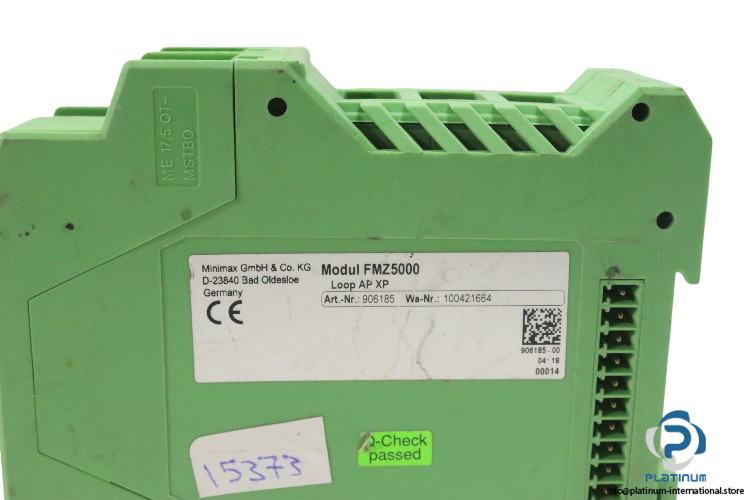

MINIMAX FMZ 5000 Conventional Detector Module

The MINIMAX FMZ 5000 is a reliable and compact conventional detector module designed for integration into modern fire detection and safety systems. With a durable polyamide housing and easy DIN rail mounting, it ensures efficient operation and secure performance in various environments.

Manufacturer: MINIMAX

Type: Conventional Detector Module

Model: FMZ 5000

Art. No.: 906185 / 100421664

Technical Data:

• Operating Voltage: 19 to 29V DC
• Current: 2 mA “ 50 mA DC
• Line Voltage: 9 V / 20 V DC
• Alarm Current: 5 mA / 80 mA DC
• Ambient Temperature: -5 °C / +40 °C
• Protection Class: IP 20
• Housing: Polyamide PA6.6
• Mounting: Rail 35 DIN 46277
• Dimensions: 115 x 100 x 17.5 mm
