Manufacturer: Mitsubishi

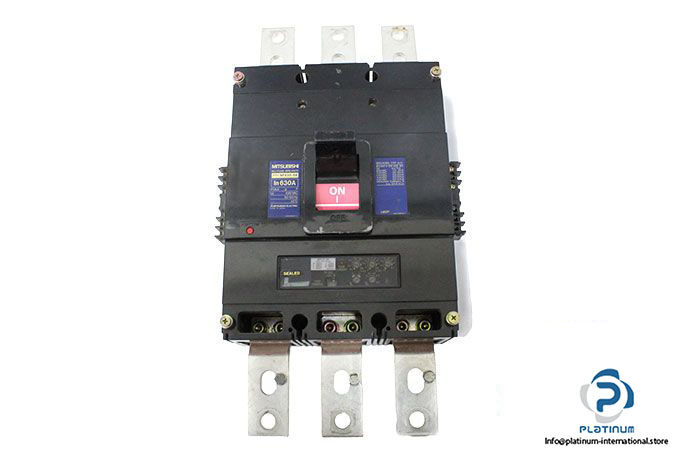

Type: Molded-Case Circuit Breaker

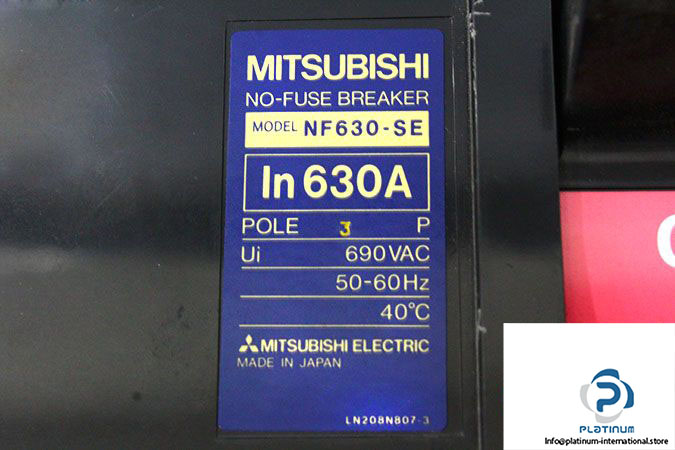

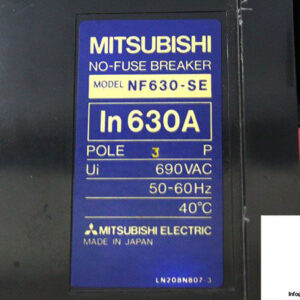

Model: NF630-SE

Number of Poles: 3

Rated Current (I_n): 630 A

Overload Protection Current (I_R): 315…630 A

Rated Surge Voltage Resistance (U_imp): 8 kV

Rated Voltage (U_i): 690 V AC

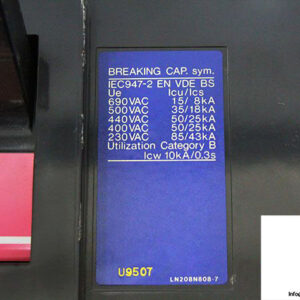

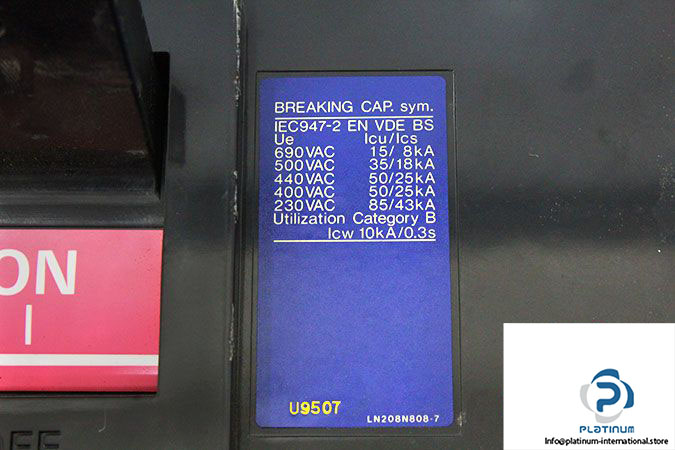

Rated Breaking Capacity (I_cu):

85 kA/230 V AC

50 kA/400 V AC

15 kA/690 V AC

Operating Frequency: 50/60 Hz

Standards: IEC947-2 EN VDE BS

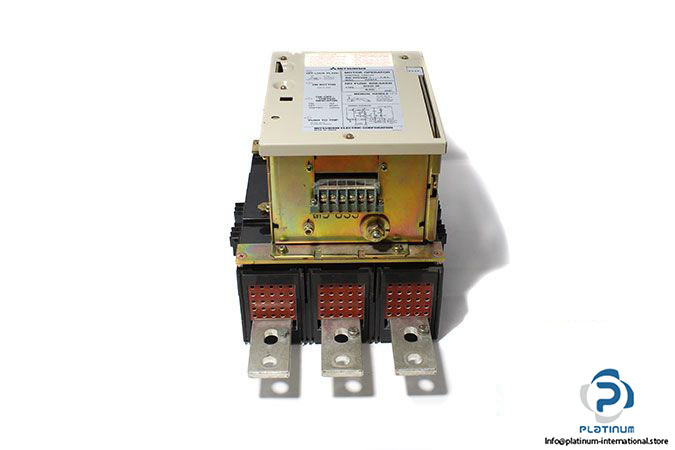

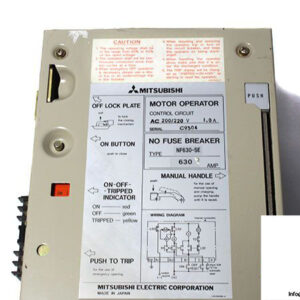

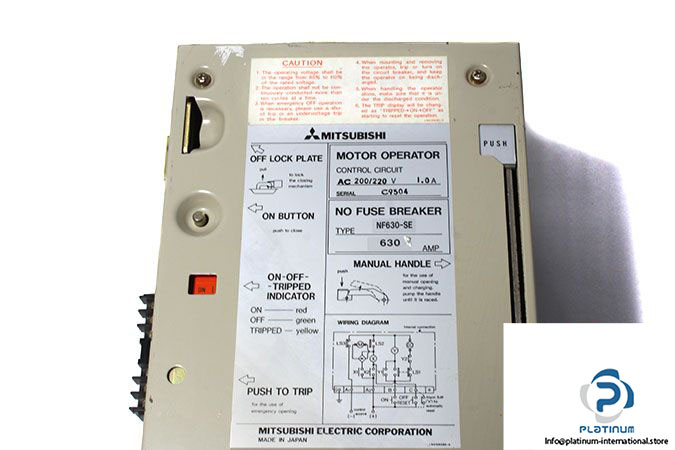

Control Circuit: Motor Operator

Dimensions (H x W x D): 450 X 210 X 228 mm

Weight: 19.24 kg
