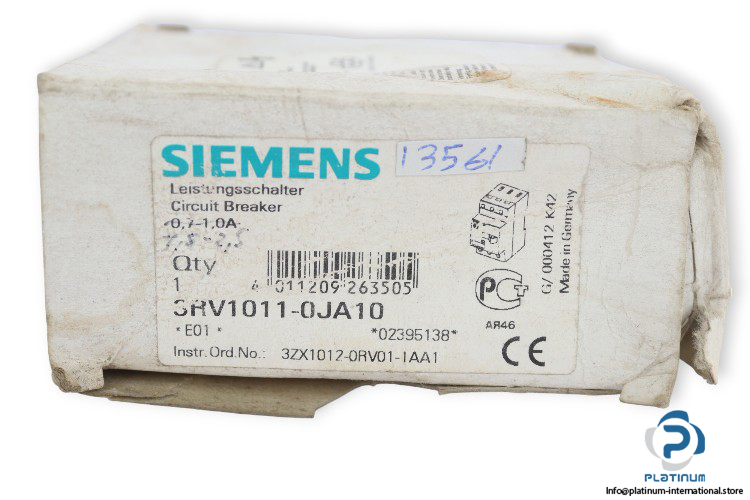

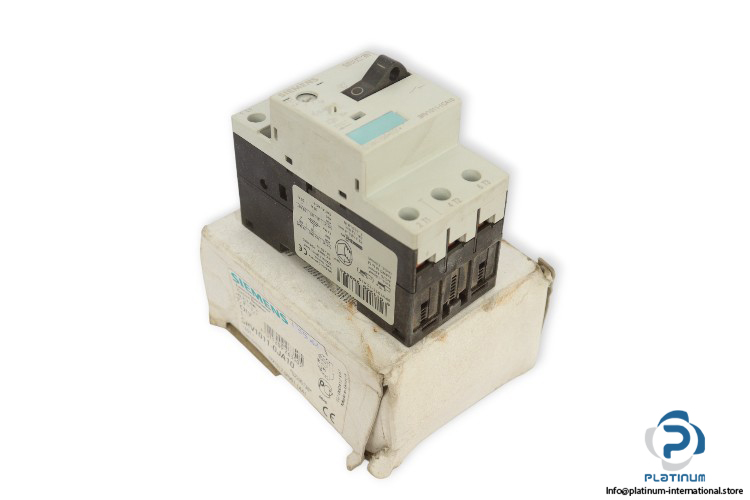

Siemens 3RV1011-0JA10 Circuit Breaker

Manufacturer: SIEMENS
Type: Circuit Breaker
Model: 3RV10110JA10

Brand Name: SIRIUS
Short Name: 3RV1
Size: S00
Rated Operating Voltage: 690 V AC
Rated Operating Frequency: 50 … 60 Hz
Rated operational current: 1 A
Switching Capacity Current: 0.7 … 1 A
Rated Operating Power AC-3:
230 V: 0.1 kW
400 V: 0.25 kW
500 V: 0.4 kW
690 V: 0.6 kW
Power Loss: 5.5 / 1.8 W
Contact: 3 Poles
Service Switching Capacity Max. (Ics): 100 kA
Breaking Switching Capacity Max. (Icu): 100 kA
Protection Class: IP20
Operation Temperature: -20…55 °C
Dimensions: 90 x 45 x 75 mm
