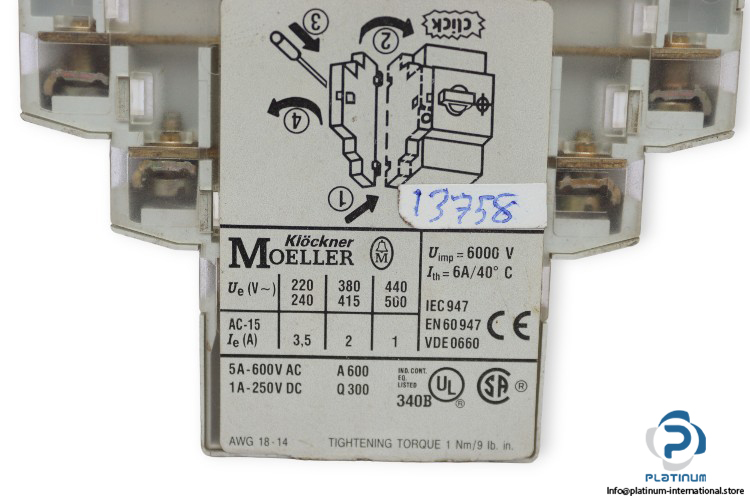

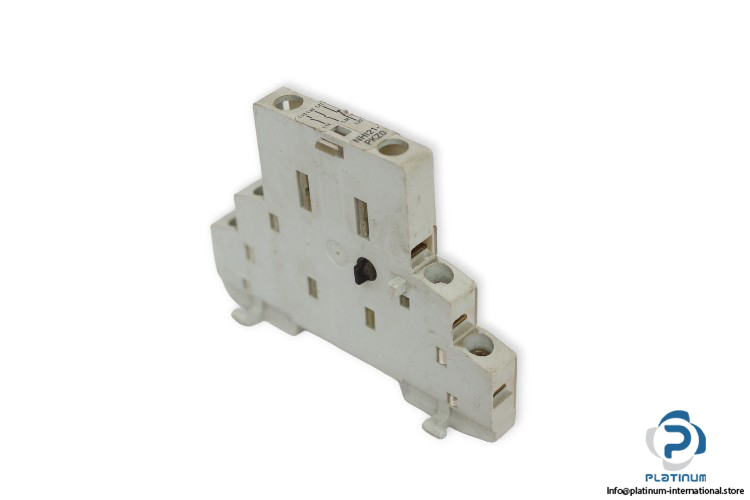

Manufacturer: Klockner Moeller
Type: Auxiliary Contact Block
Model: NHI21PKZ0

Used: with Motor protective circuit-breaker
Rated Operational Voltage: 500 V AC,250 V DC
Rated operational current (Ie):
1 A @ AC-15, 440 V / 500 V
2 A @ AC-15, 380 V / 415 V
3.5 A @ AC-15, 220 V / 240 V
Switching capacity: 1 A, 250 V DC / 5 A, 600 V AC
Rated impulse withstand voltage (Uimp): 6000 V AC
Rated Thermal Current (Ith): 6 A/40°C

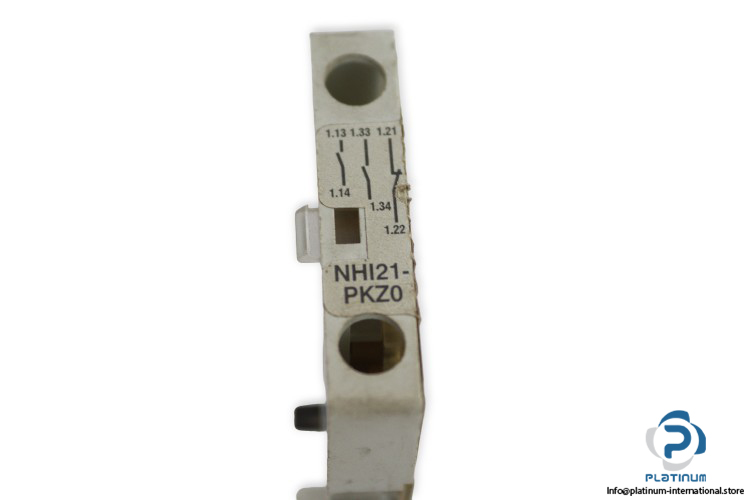

Contact: 2 Normally Open (NO) + 1 Normally Closed (NC)
Standard: IEC947, EN60947,VDE0660
Pollution degree: 3
Mounting method: Side mounting
Electric connection type: Screw connection
Ambient Operating Temperature: -25 … 55 °C
Dimensions: 68 x 90 x 15 mm
