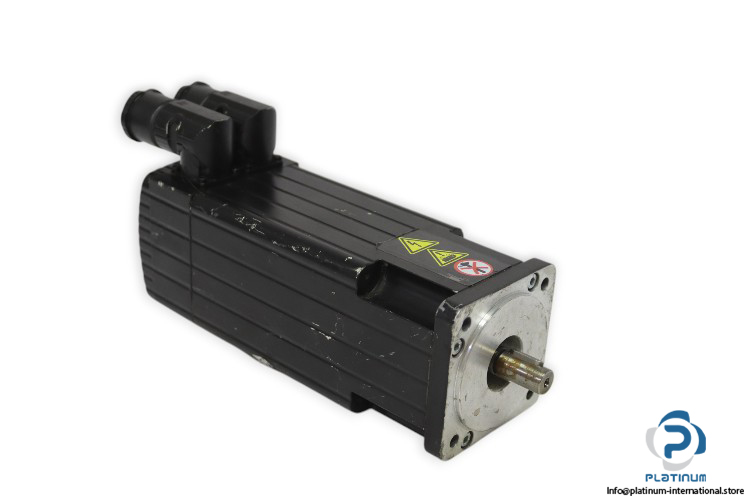

Moog G3L40-UL-N Servomotor
The Moog G3L40-UL-N from the G400 series is a high-performance servomotor designed for precision motion control in demanding industrial applications. With high rated speed, torque, and advanced protection, it delivers reliable and efficient performance in automation systems.
Manufacturer: Moog
Type: Servomotor
Model: G3L40-UL-N
Part No.: G413-804A
Serial No.: N113
Series: G400

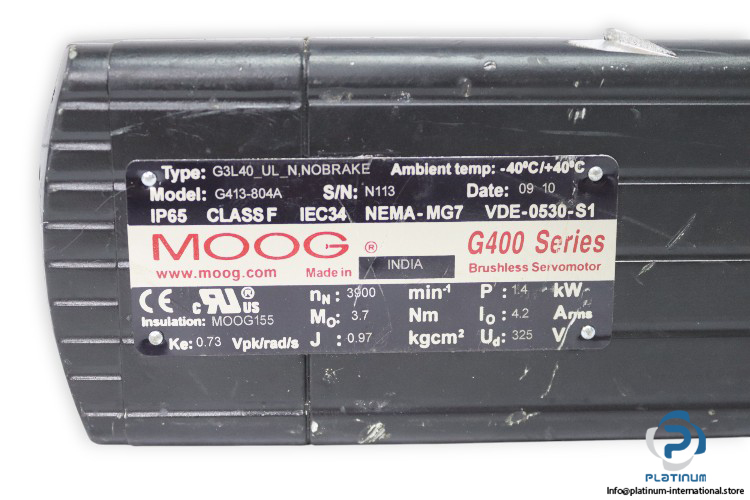

Technical information
- Rated Speed (n): 3900 rpm
- Rated Torque (M0): 3.7 Nm
- Rated Power (P): 1.4 kW
- Rated Current (I0): 4.2 Arms
- Inertia (J): 0.97 kgcm²
- Voltage Constant (Ke): 0.73 Vpk/rad/s
- Rated Voltage (Ud): 325 V DC
- Protection Class: IP65 (dust-tight, protected against water jets)
- Insulation Class: F (max winding temp 155 °C)
- Standards: IEC34, NEMA-MG7, VDE-0530-S1
- Ambient Temperature Range: -40 °C to +40 °C
