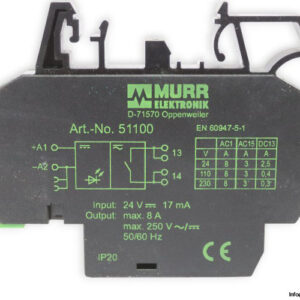

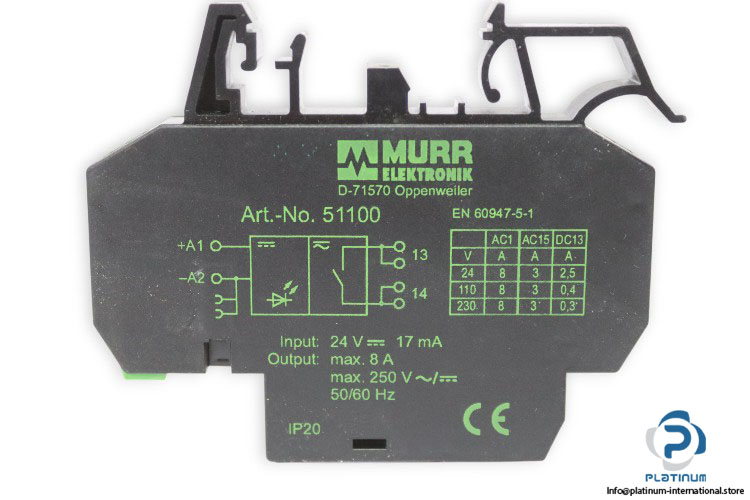

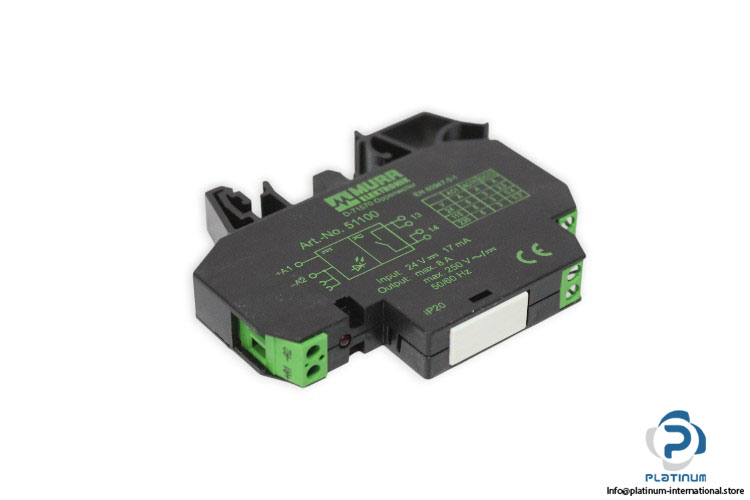

MURR ELEKTRONIK INPUT RELAY 51100

The Murr Elektronik Input Relay is a compact and reliable switching component designed for industrial control systems. Engineered with high durability and precision, it supports DIN-rail mounting and ensures safe operation with LED indication for clear status monitoring.

Manufacturer: Murr Elektronik
Type: Input Relay

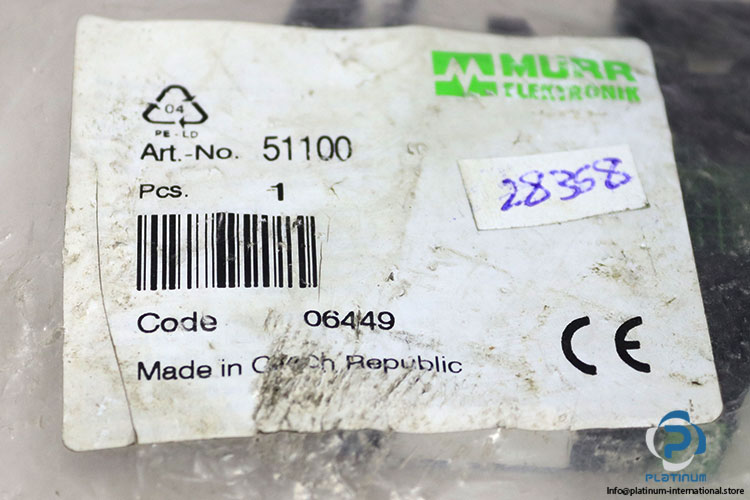

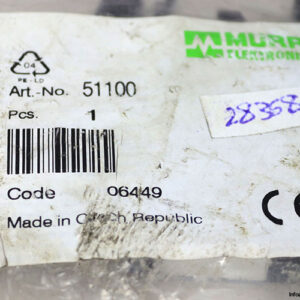

Art.-No.: 51100
Plug link Art.-No.: 90960
Code No.: 06449

Technical Information

• Input Voltage: 24 V DC
• Mounting Power: 17 mA
• LED Display: LED (red)
• Output Switching Voltage: max. 250 V AC/DC
• Minimum Load Current: 100 mA
• Breaking Capacity: max. 2000 VA / 240 W (voltage dependent)
• Switching Frequency: max. 10 Hz
• Temperature Range: -20 / +50 °C
• Mounting Method: DIN-rail mountable TH35 or G32 (EN 60715)
• Dimensions (H × W × D): 82 × 12 × 68 mm
• Switching Capacity: According to EN 60947-5-1
• Protection Class: IP20
