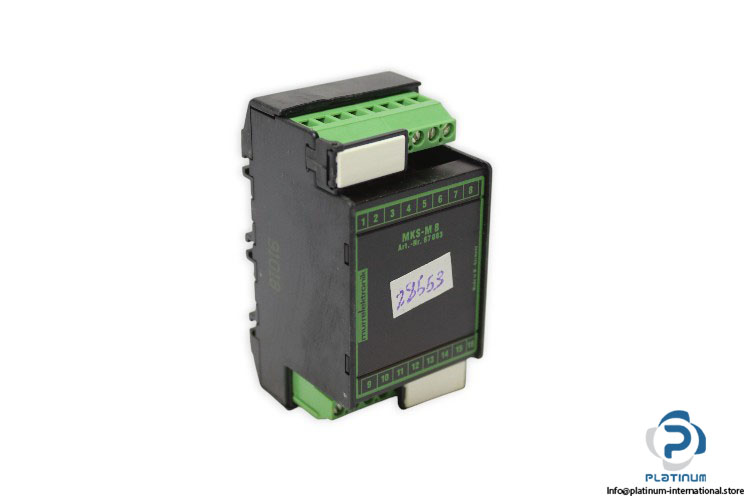

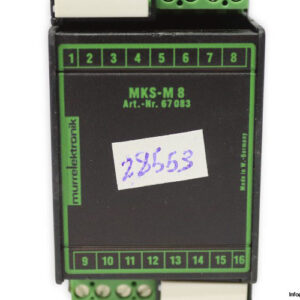

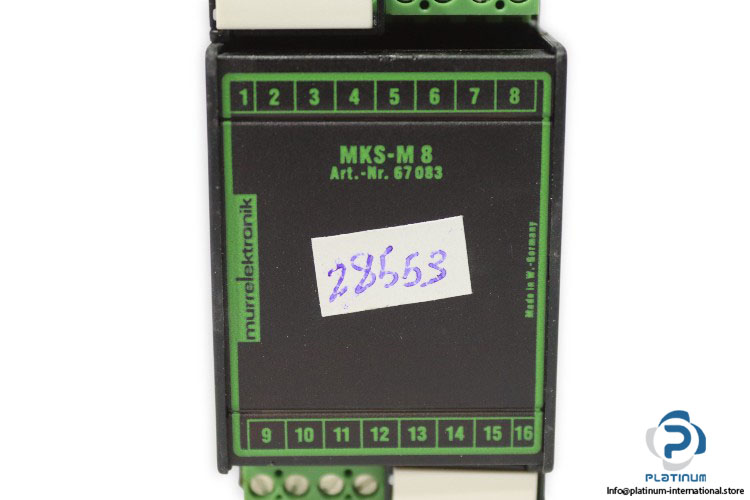

MURR ELEKTRONIK MKS-M8 SAFETY RELAY
The Murr Elektronik MKS-M8 is a robust safety relay designed to ensure secure operation and reliable performance in industrial automation systems. Built with flame-retardant housing and optimized for easy mounting, it provides high safety standards and durability under demanding conditions.
Manufacturer: Murr Elektronik
Type: Safety Relay
Model: MKS-M8
MRN: 67083
Technical Information
- Operating Voltage AC (max): 250 V
- Operating Voltage DC (max): 250 V
- Operating Current (max): 5 A
- Flame Resistance: Flame retardant
Mechanical & Material Data
- Housing Material: Plastic
- Housing Properties: Removable cover
- Height: 86 mm
- Width: 45 mm
- Depth: 62 mm
- Mounting Method: Geschnappt
- Suitable for Mounting Type: Mounting rail TH35 (EN 60715), G32
- Distance of Solder Pins: 40 mm
Environmental Data
- Operating Temperature (min): -20 °C
- Operating Temperature (max): 60 °C
