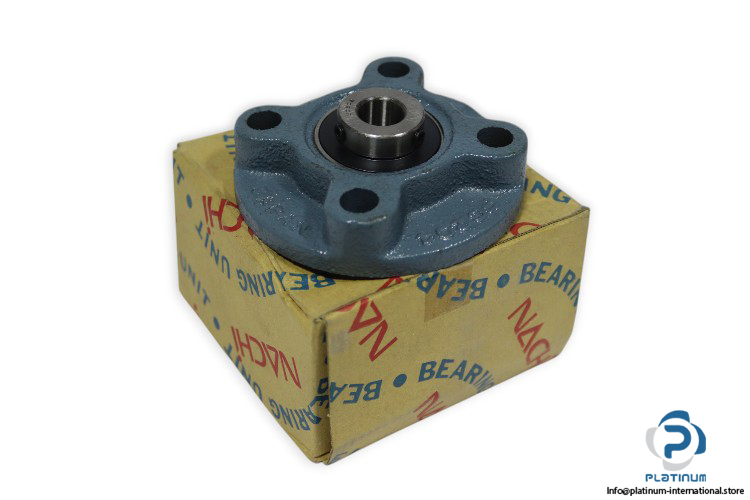

Nachi UCFC 202 Round Flange Ball Bearing Unit
The Nachi UCFC 202 Round Flange Ball Bearing Unit is a high-quality and robust solution for industrial applications requiring precision and durability. With the UC 202 bearing and FC 202 housing, this unit ensures reliable performance in demanding environments. Its cylindrical bore and round flange design make it ideal for applications needing secure and stable operation.
Manufacturer: Nachi
Type: ROUND FLANGE BALL BEARING UNIT
Model: UCFC 202
Technical Information:

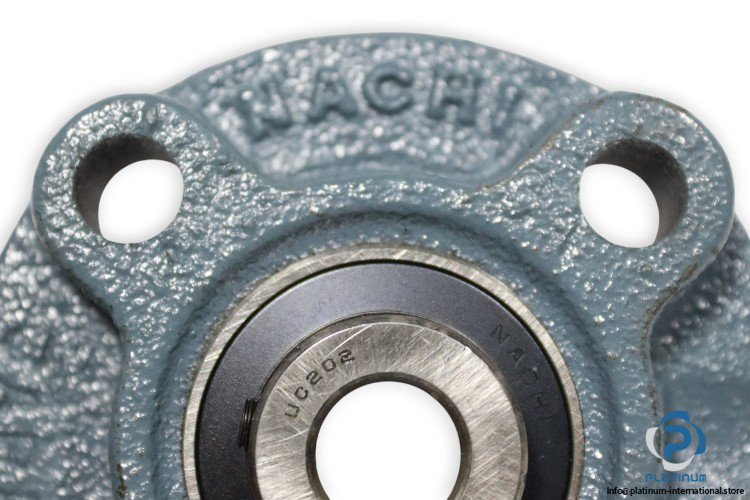

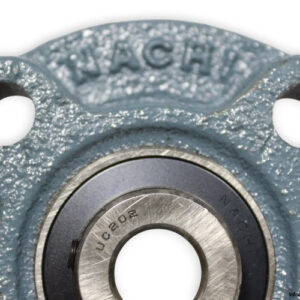

- Bearing Number: UC 202
- Housing Number: FC 202
- Bore Diameter (d): 15 mm
- Outside Diameter (L): 100 mm
- Pitch Diameter of Attachment Bolts (J): 78 mm
- Length of Attachment Bolt Hole (N): 12 mm
- Width of Inner Ring (B): 31 mm
- Overall Width (A0): 28.3 mm
- Dynamic Load Rating: 12800 N
- Static Load Rating: 6600 N
- Bolt Size: M10
- Locking Device: Set Screw
- Housing Type: Round flange, cylindrical bore

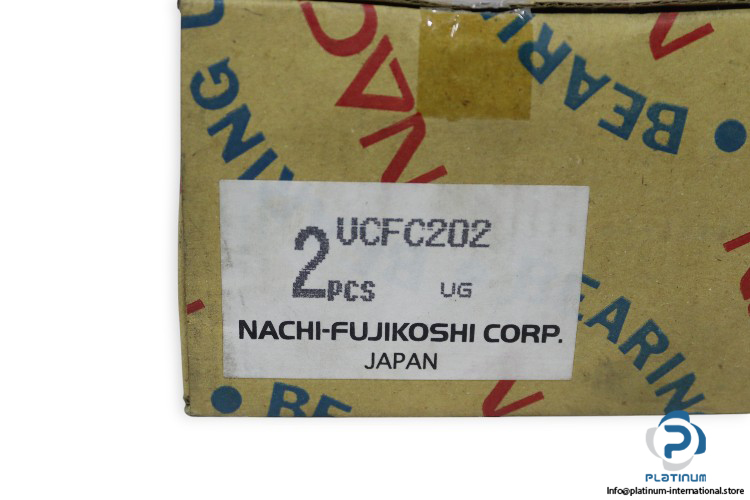

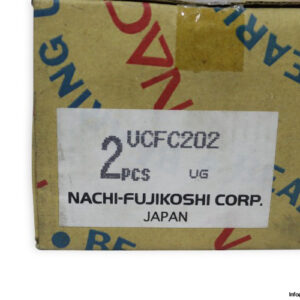

- Item Per Set: 2
Perfectly engineered for industrial systems, the Nachi UCFC 202 offers precision, stability, and reliability, ensuring smooth and consistent operation under load.
